TSZZ35/002M/5 INDEL

Details

TSZZ35/002M/5
TSZZ35/002M/5
TSZZ35/002M/5
TSZZ35/002M/5
TSZZ35/002M/5
TSZZ35/002M/5
TSZZ35/002M/5
TSZZ35/002M/5
TSZZ35/002M/5
  • TSZZ35/002M/5
  • TSZZ35/002M/5
  • TSZZ35/002M/5
  • TSZZ35/002M/5
  • TSZZ35/002M/5
  • TSZZ35/002M/5
  • TSZZ35/002M/5
  • TSZZ35/002M/5
  • TSZZ35/002M/5

Manufacturer product page INDEL

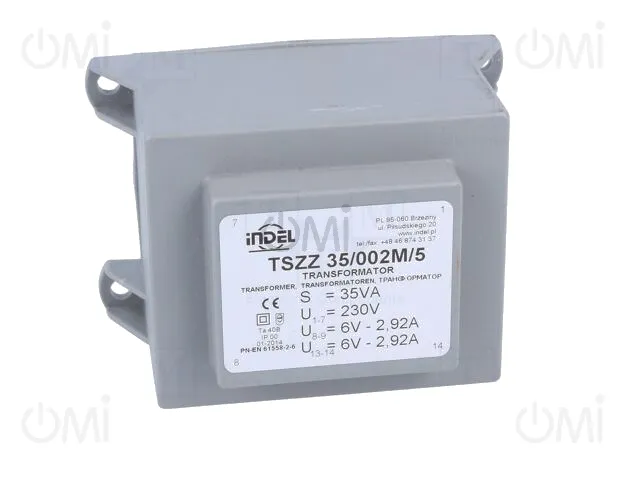

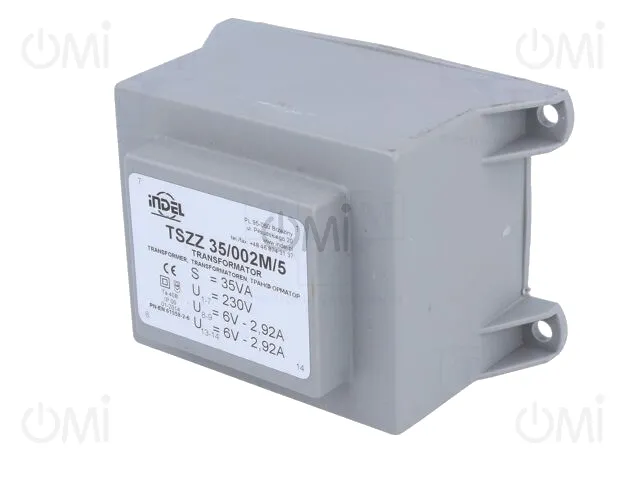

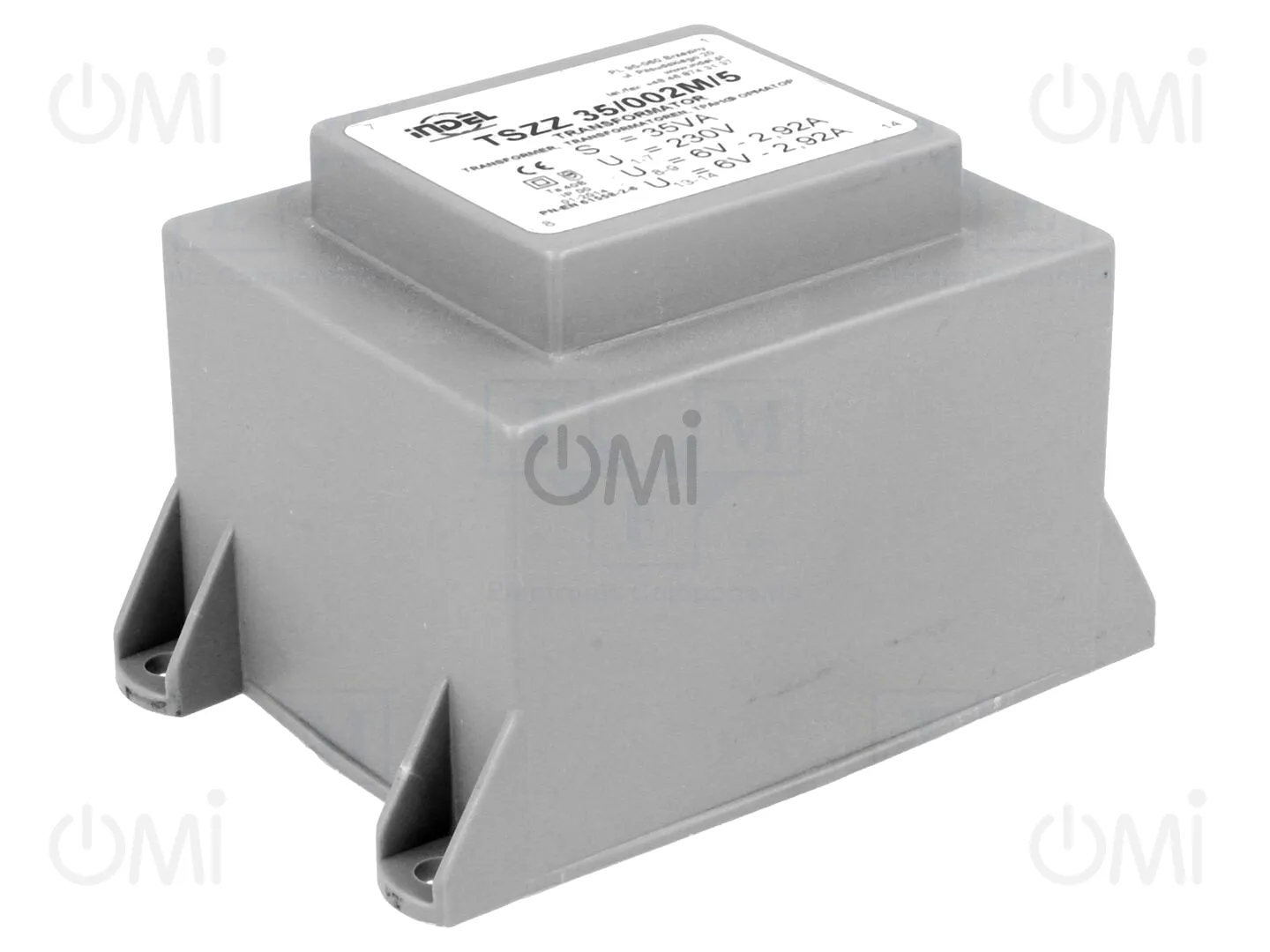

Transformer: encapsulated; 35VA; 230VAC; 6V; 6V; 2.91A; 2.91A; PCB

Manufacturer code: TSZZ35/002M/5

OMI code: 36770

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

6 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 24.35
2+ 23.05

Price details
TSZZ35/002M/5

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 24.35
2+ 23.05

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
INDEL
Mounting
PCB
IP rating
IP00
Conform to the norm
PN EN 61558
Power
35VA
A dimension
63.6mm
Type of transformer
encapsulated
Primary voltage
230V AC
Secondary voltage 1
6V
Secondary winding current 1
2.91A
Primary winding terminals
1-7
Insulation class
II
Secondary voltage 2
6V
D dimension
72.5mm
B dimension
53.6mm
Secondary winding terminals
8-9, 13-14
Thermal class
Ta40B
Secondary winding current 2
2.91A
Electrical insulation strength
4kV/60s
C dimension
51.5mm
A1 dimension
41.8mm
B1 dimension
35.8mm
C1 dimension
42.2mm
D1 dimension
43.5mm
P dimension
5mm
M dimension
32.5mm
Gross weight 705.20 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: PCB transformers

* All prices are net prices (excluding VAT) and do not include transportation costs, which will be included in the order amount. Transportation costs are available in the tab "Method and cost of delivery"

Last viewed items

73098-6

73098-6

Manufacturer: POMONA

Socket; 4mm banana; 32A; blue; on panel; 45mm; Contacts: brass

In stock:

9 pcs

Price details
73098-6

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 15.54
3+ 15.33

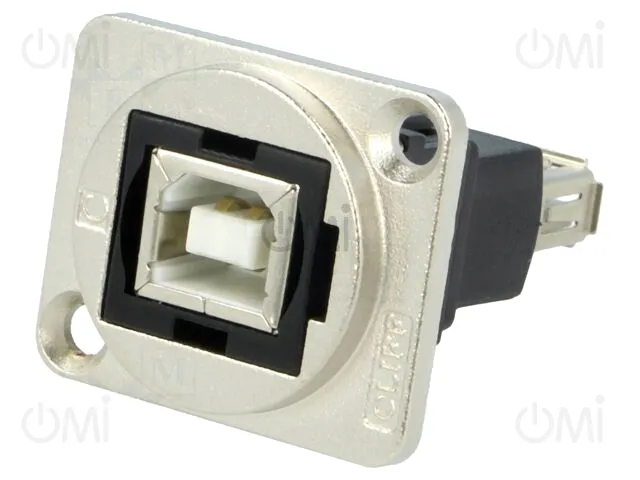

CP30207NM

CP30207NM

Manufacturer: CLIFF

Coupler; USB A socket,USB B socket; FT; USB 2.0; metal; 19x24mm

In stock:

79 pcs

Price details
CP30207NM

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 14.43
3+ 8.98
5+ 8.5
100+ 8.42
TSZZ35/002M/5

TSZZ35/002M/5

Manufacturer: INDEL

Transformer: encapsulated; 35VA; 230VAC; 6V; 6V; 2.91A; 2.91A; PCB

In stock:

6 pcs

Price details
TSZZ35/002M/5

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 24.35
2+ 23.05

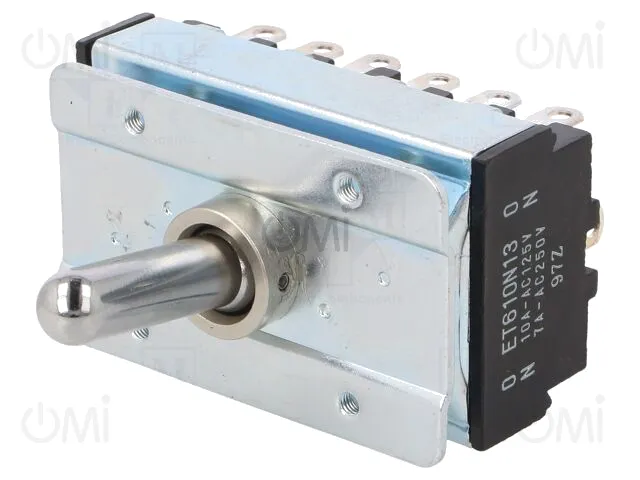

ET610N13-Z
