HE24-1A83-03 MEDER

Details

HE24-1A83-03
HE24-1A83-03
HE24-1A83-03
HE24-1A83-03
HE24-1A83-03
HE24-1A83-03
HE24-1A83-03
HE24-1A83-03
HE24-1A83-03
  • HE24-1A83-03
  • HE24-1A83-03
  • HE24-1A83-03
  • HE24-1A83-03
  • HE24-1A83-03
  • HE24-1A83-03
  • HE24-1A83-03
  • HE24-1A83-03
  • HE24-1A83-03

Manufacturer product page MEDER

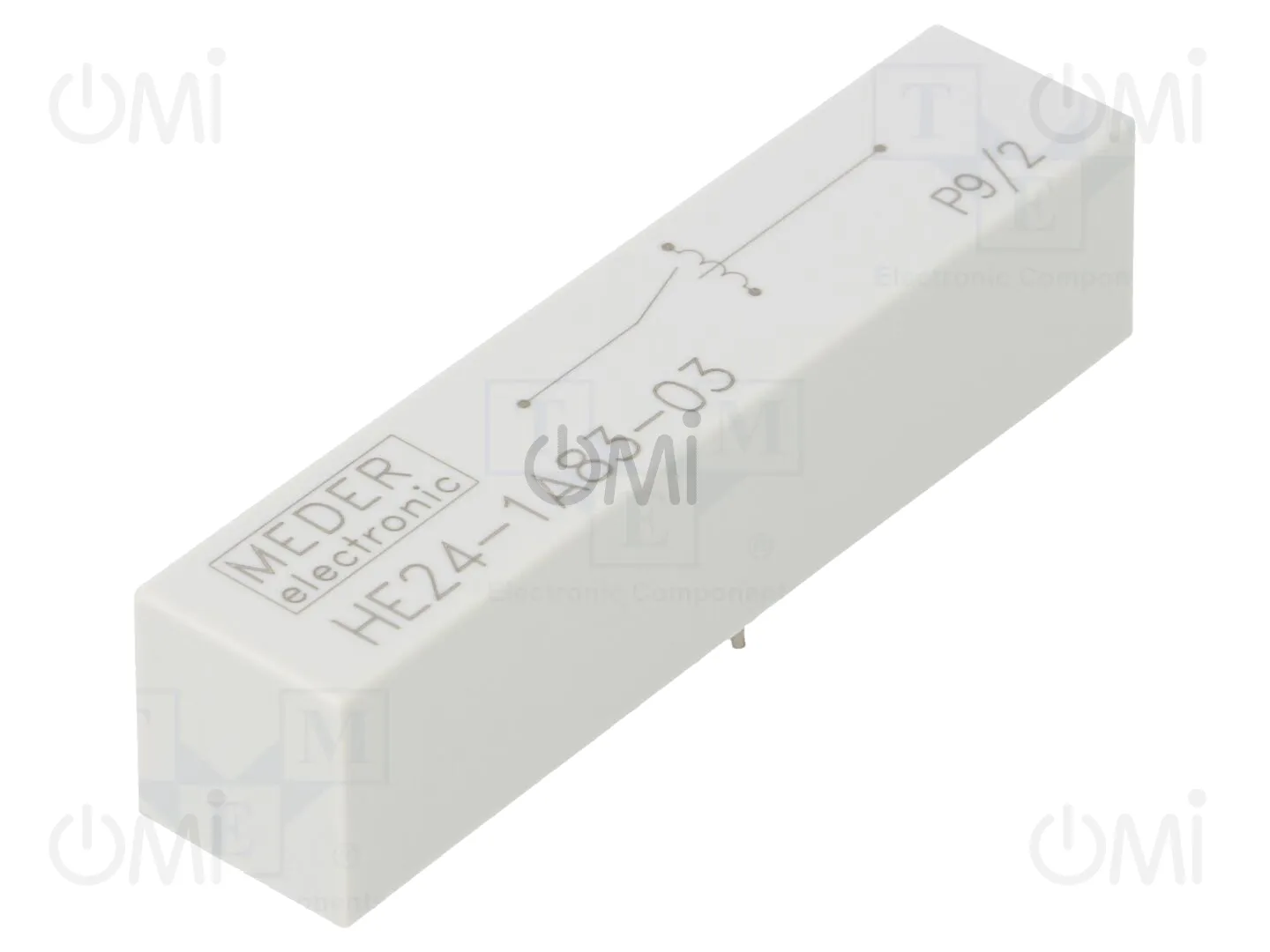

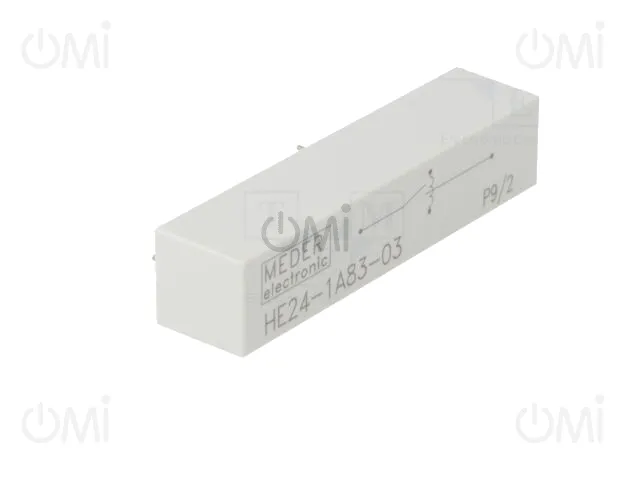

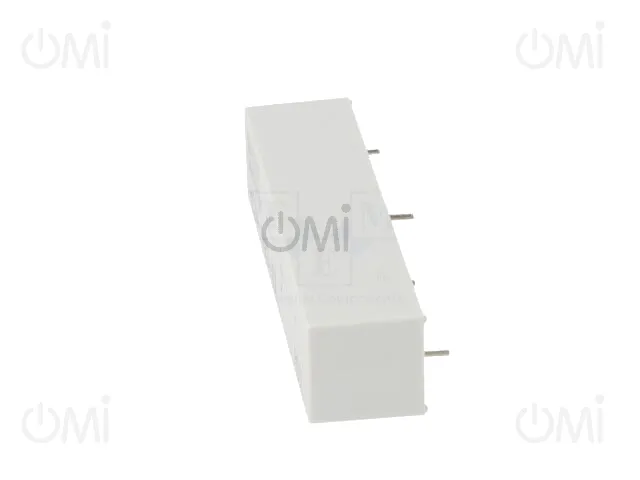

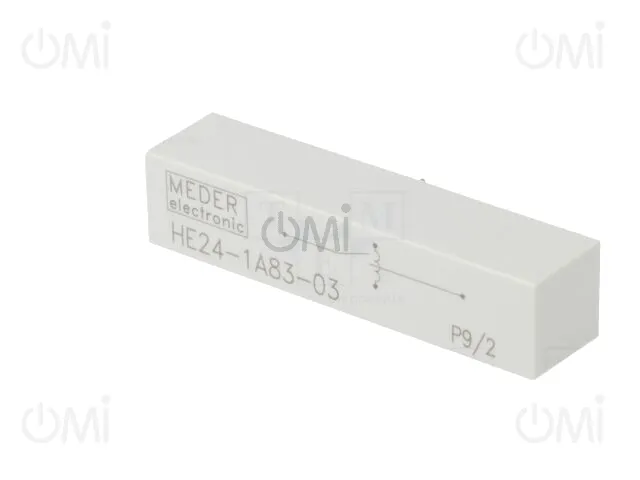

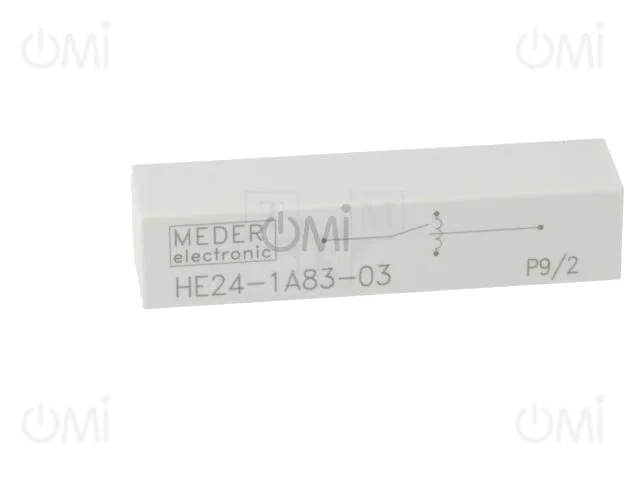

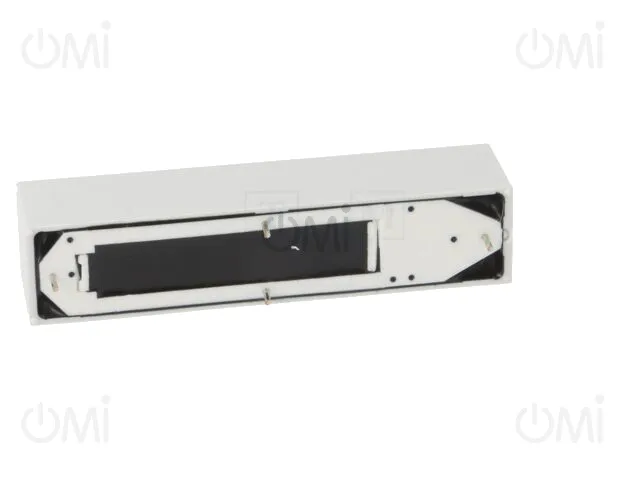

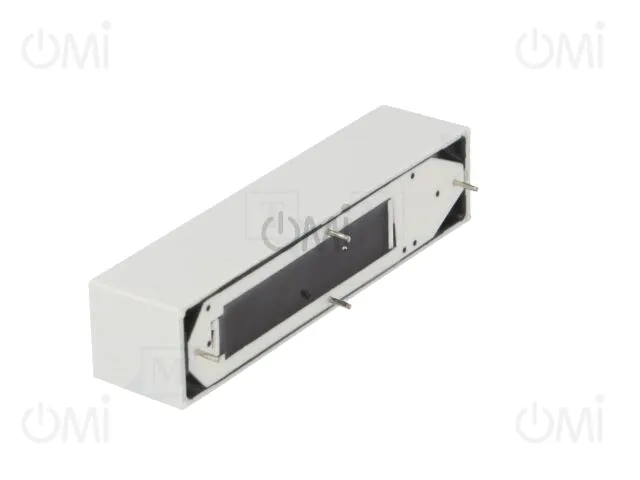

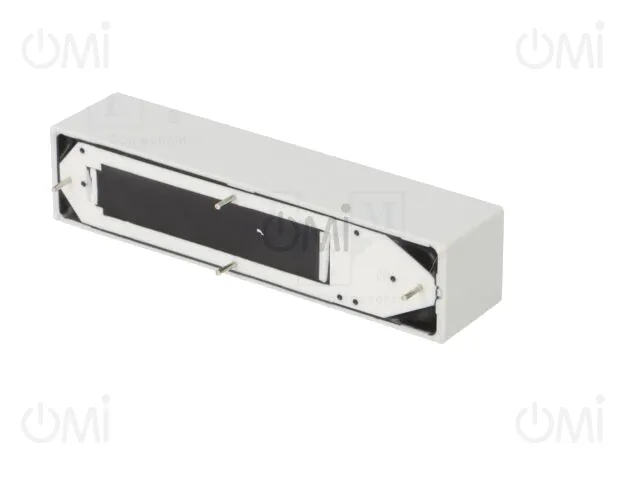

Relay: reed switch; SPST-NO; Ucoil: 24VDC; 5A; max.7.5kVDC; 50W

Manufacturer code: HE24-1A83-03

OMI code: 372047

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

167 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 30.94
2+ 29.29

Price details
HE24-1A83-03

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 30.94
2+ 29.29

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
MEDER
Mounting
PCB
Operating temperature
-20...70°C
Contacts configuration
SPST-NO
Body dimensions
65x15.5x14.5mm
Switched voltage
max. 7.5kV AC, max. 7.5kV DC
Type of relay
reed switch
Contact current max.
5A
Relay series
HE
Min. insulation resistance
10GΩ
Coil resistance
1.05kΩ
Switching capacity
50W
Rated coil voltage
24V DC
Operate time
3.2ms
Contact resistance
0.15Ω
Release time
1.5ms
Coil power consumption
0.549W
Gross weight 30.15 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Reed Electromagnetic Relays
