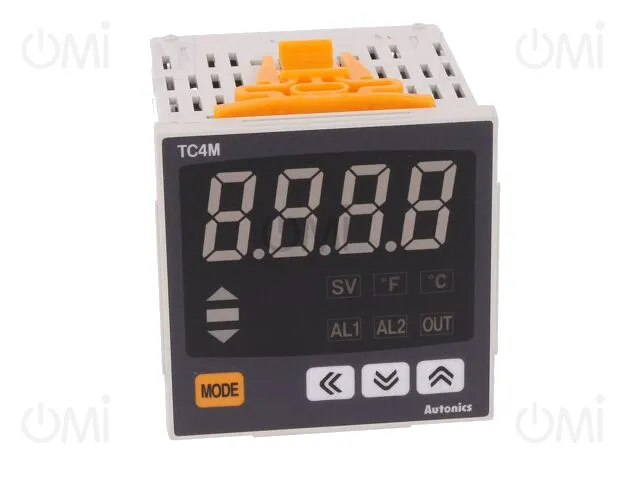

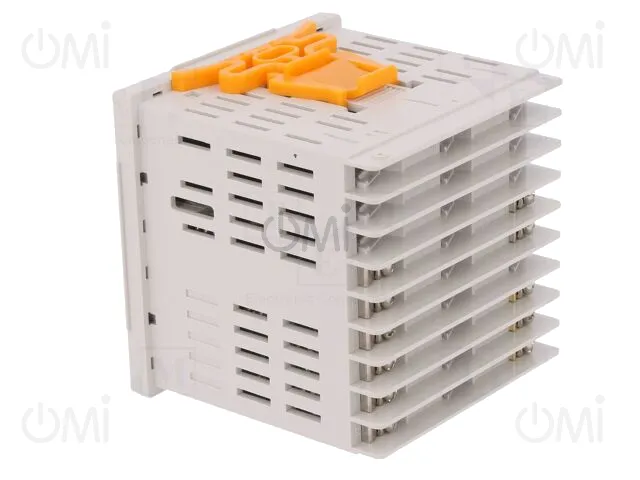

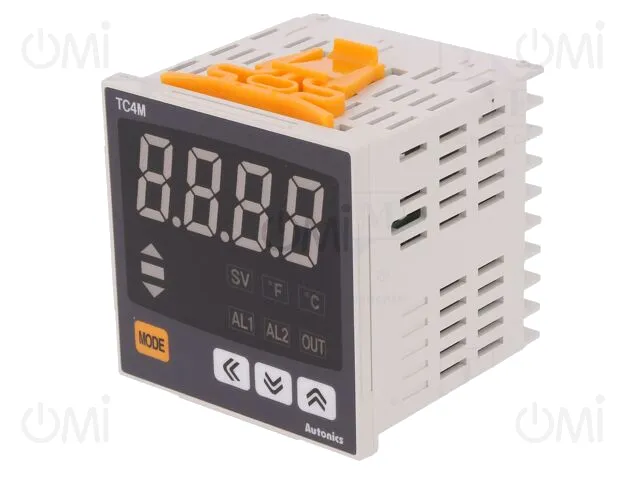

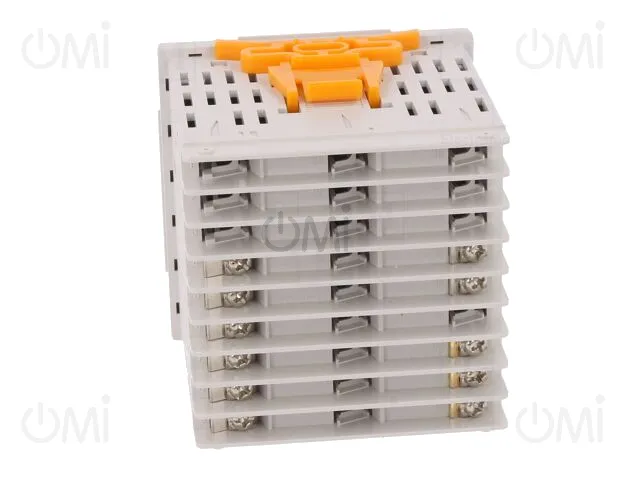

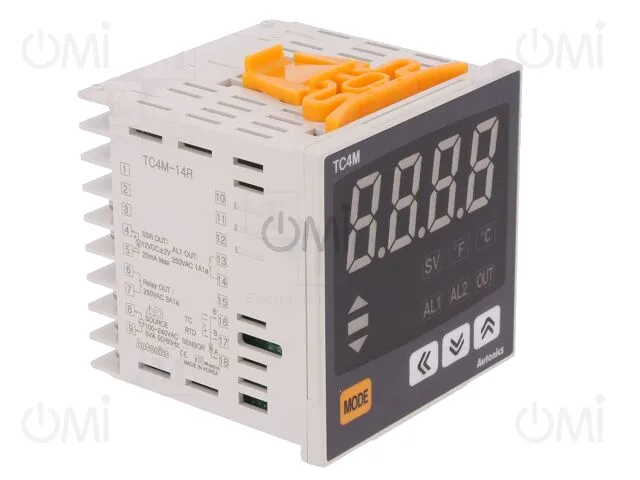

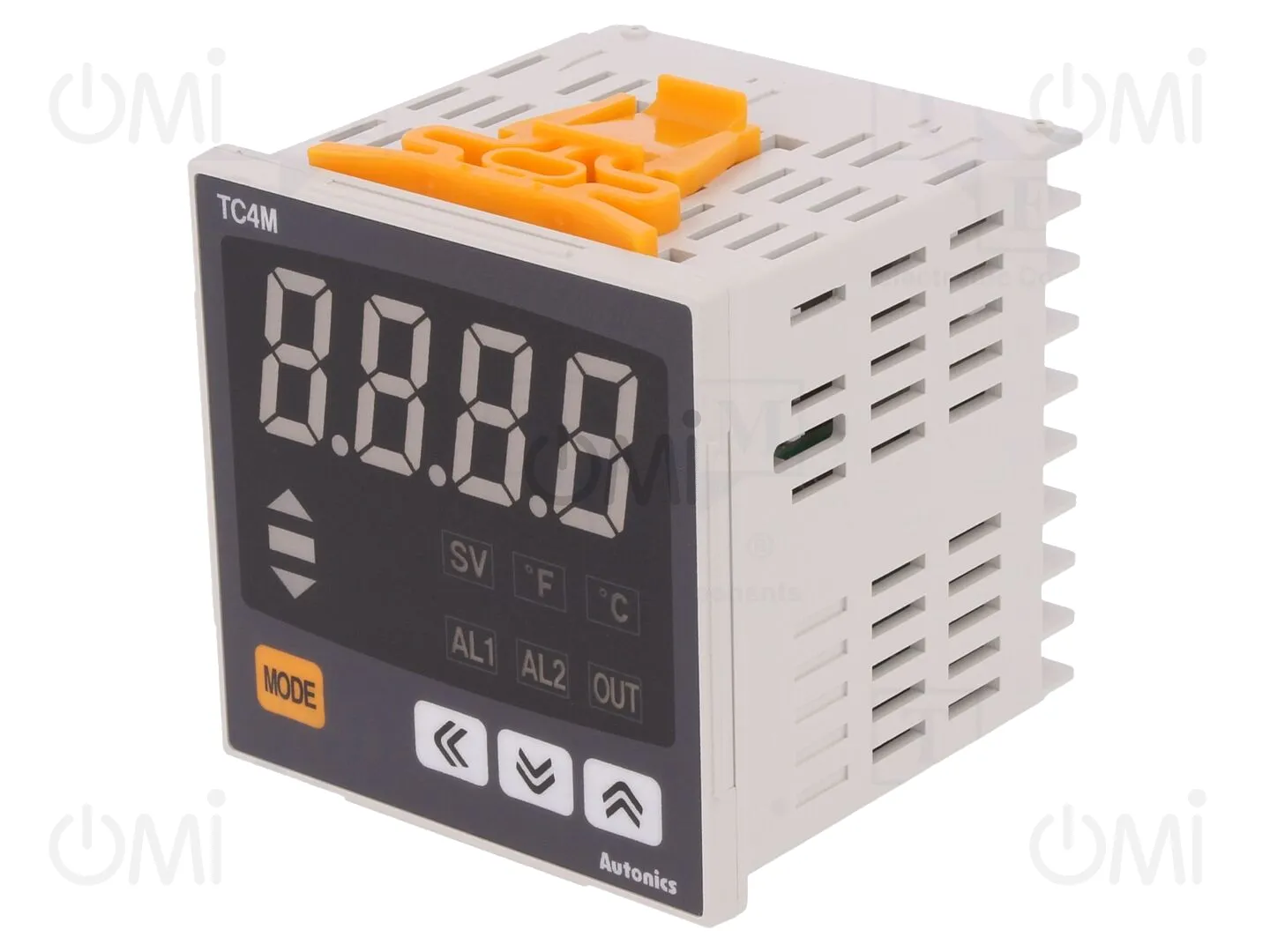

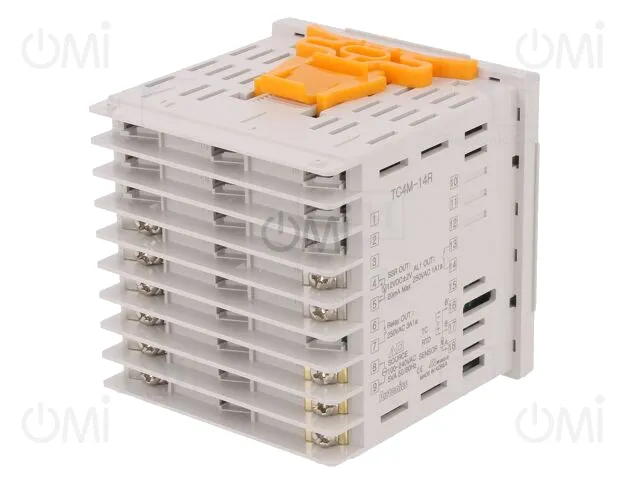

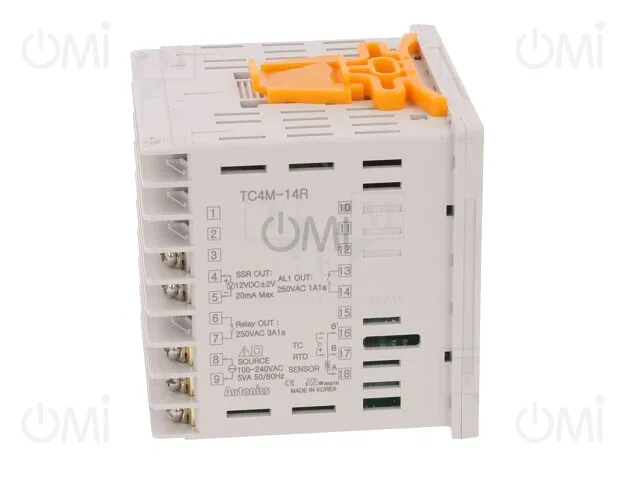

TC4M-14R AUTONICS

Details

TC4M-14R
TC4M-14R
TC4M-14R
TC4M-14R
TC4M-14R
TC4M-14R
TC4M-14R
TC4M-14R
TC4M-14R
  • TC4M-14R
  • TC4M-14R
  • TC4M-14R
  • TC4M-14R
  • TC4M-14R
  • TC4M-14R
  • TC4M-14R
  • TC4M-14R
  • TC4M-14R

Manufacturer product page AUTONICS

Module: regulator; temperature; SPST-NO; OUT 2: SSR; OUT 3: alarm

Manufacturer code: TC4M-14R

OMI code: 372272

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

11 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 45.08

Price details
TC4M-14R

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 45.08

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
AUTONICS
Mounting
on panel
Operating temperature
-10...50°C
Manufacturer series
TC4M
Supply voltage
100...240V AC
Body dimensions
72x72x70.5mm
Mounting hole diameter
68x68mm
Type of module
regulator
Kind of display used
LED
Kind of output 1
SPST-NO
The programming method
foil keypad
Additional functions
LED status indicator
Controlled parameter
temperature
Kind of temperature sensor
Cu50, Pt100, thermocouple J, thermocouple K, thermocouple L
Regulation for output 1
ON-OFF, P, PD, PI, PID
Output 1 electrical parameters
250V AC / 3A
Controlled parameter range
-1999...9999
Input 1 properties
RTD, thermocouple
Display height 1
20mm
Kind of output 2
SSR
Kind of output 3
alarm
Output 2 electrical parameters
12V DC / 20mA
Output 3 electrical parameters
250V AC / 1A
Gross weight 199.50 g
Documentation in English #1 Documentation in English #2

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.
