96A1A-B28-A15L BOURNS

Details

96A1A-B28-A15L
96A1A-B28-A15L
96A1A-B28-A15L
96A1A-B28-A15L
96A1A-B28-A15L
96A1A-B28-A15L
96A1A-B28-A15L
96A1A-B28-A15L
96A1A-B28-A15L
  • 96A1A-B28-A15L
  • 96A1A-B28-A15L
  • 96A1A-B28-A15L
  • 96A1A-B28-A15L
  • 96A1A-B28-A15L
  • 96A1A-B28-A15L
  • 96A1A-B28-A15L
  • 96A1A-B28-A15L
  • 96A1A-B28-A15L

Manufacturer product page BOURNS

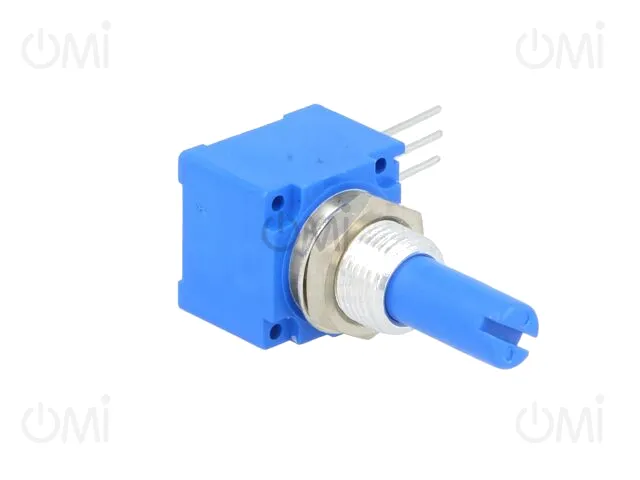

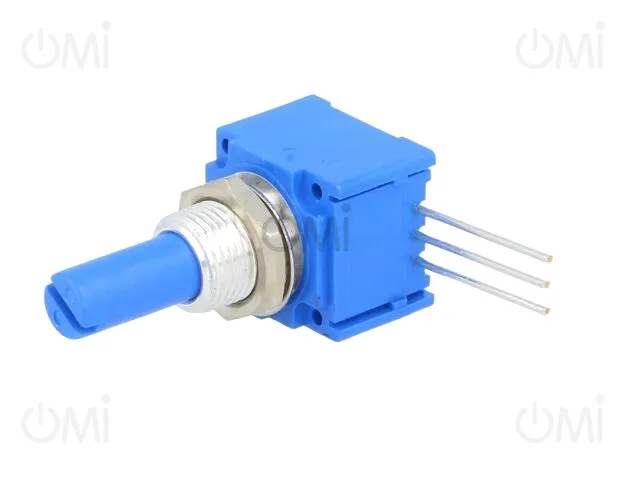

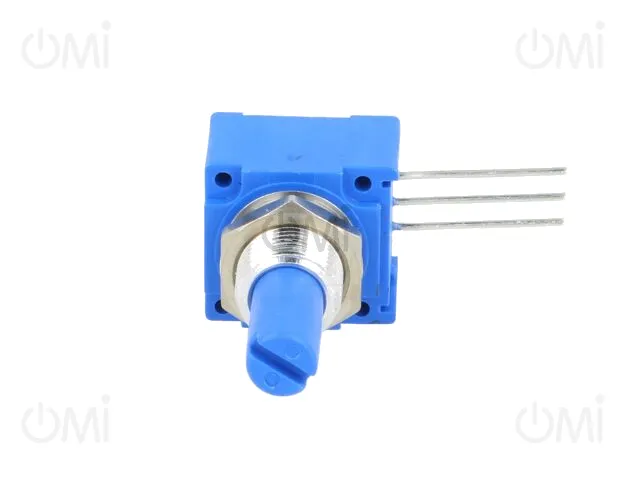

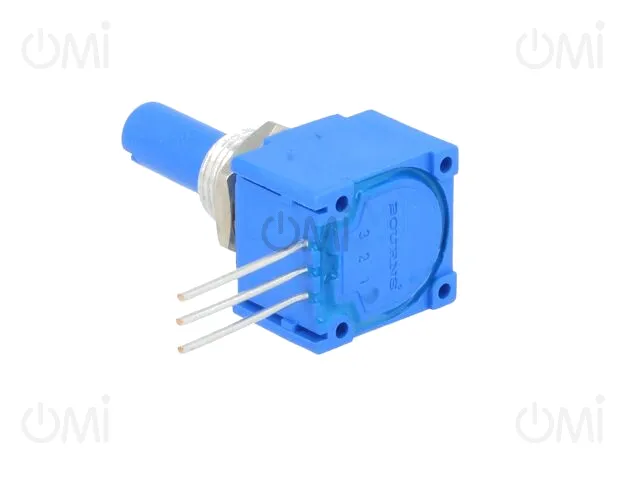

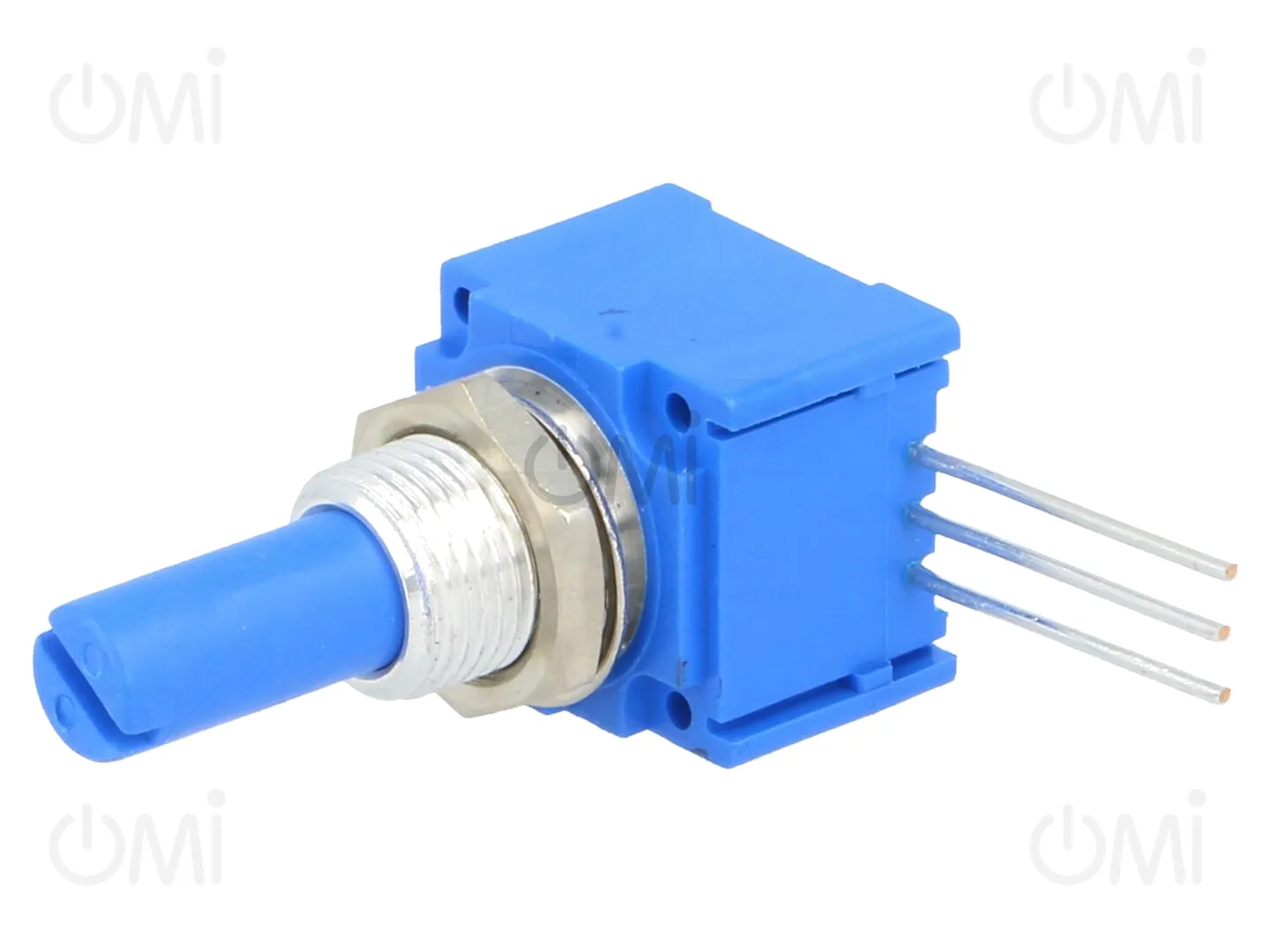

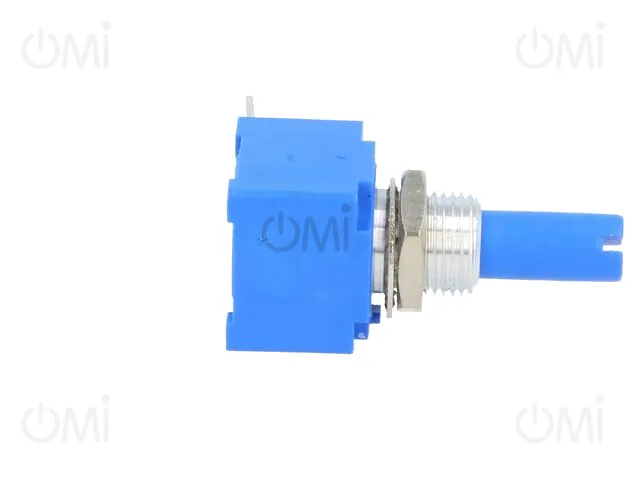

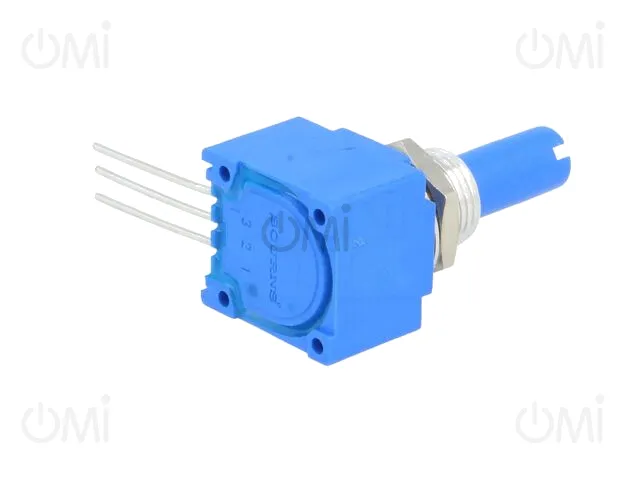

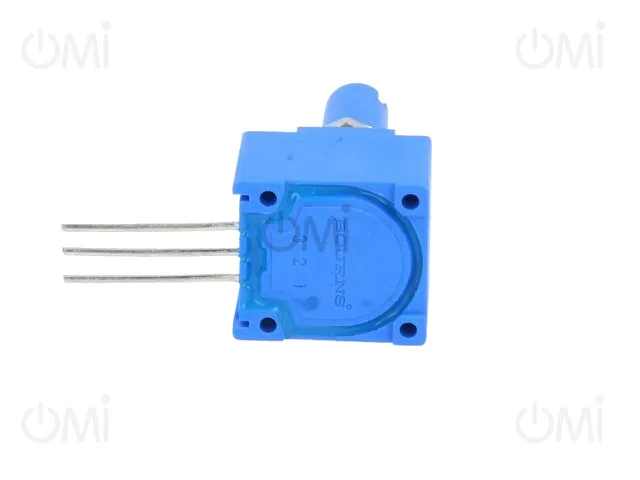

Potentiometer: shaft; single turn; 10kΩ; 2W; ±10%; 6.35mm; linear

Manufacturer code: 96A1A-B28-A15L

OMI code: 372734

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

47 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 14.05
2+ 12.01
3+ 11.38
20+ 11.32

Price details
96A1A-B28-A15L

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 14.05
2+ 12.01
3+ 11.38
20+ 11.32

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
BOURNS
Power
2W
Leads
for PCB
Body dimensions
15.9x17.5x12.95mm
Tolerance
±10%
Resistance
10kΩ
Thread length
9.53mm
Terminal pitch
2.54mm
Type of potentiometer
shaft
Characteristics
linear
Electrical rotation angle
240°
Track material
cermet
Kind of potentiometer
single turn
Shaft diameter
6.35mm
Shaft length
12.7mm
Shaft surface
smooth
L shaft length
22.23mm
Gross weight 10.38 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Cermet single turn potentiometers
