SM0320102 NKK SWITCHES

Details

SM0320102
SM0320102
SM0320102
SM0320102
SM0320102
SM0320102
SM0320102
SM0320102
SM0320102
  • SM0320102
  • SM0320102
  • SM0320102
  • SM0320102
  • SM0320102
  • SM0320102
  • SM0320102
  • SM0320102
  • SM0320102

Manufacturer product page NKK SWITCHES

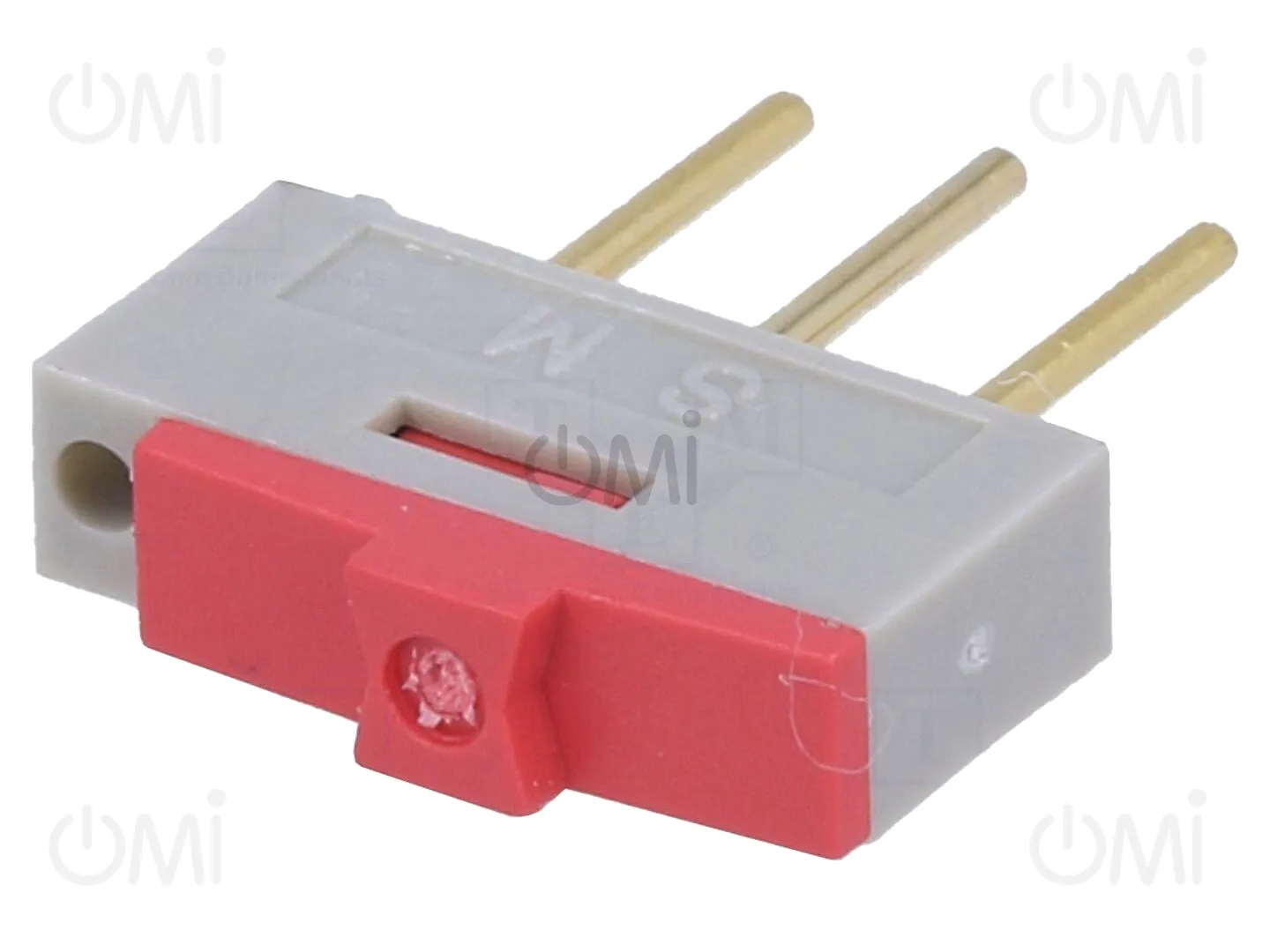

Switch: slide; Pos: 2; SPDT; 0.5A/12VDC; ON-ON; THT; -40÷85°C

Manufacturer code: SM0320102

OMI code: 37387

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

41 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 7.07
4+ 4.91
9+ 4.64
1500+ 4.58

Price details
SM0320102

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 7.07
4+ 4.91
9+ 4.64
1500+ 4.58

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
NKK SWITCHES
Mounting
THT
Type of switch
slide
Operating temperature
-40...85°C
Leads
for soldering
Body dimensions
10x6.4x2.5mm
Contacts configuration
SPDT
Switching method
ON-ON
Mechanical durability
1000 cycles
Electrical life
1000 cycles
Number of positions
2
DC contacts rating @R
0.5A / 12V DC
Max. contact resistance:
30mΩ
Min. insulation resistance
0.1GΩ
Stable positions number
2
Gross weight 0.24 g
Documentation in English #1 Documentation in English #2

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Slide Switches
