TG2000 AIM-TTI

Details

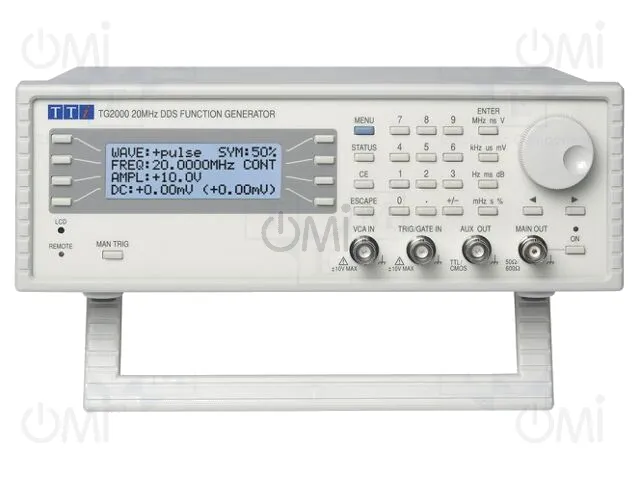

TG2000
  • TG2000

Manufacturer product page AIM-TTI

Generator: function; 20MHz; LCD; 6 digits; Ch: 1; Modulation: AM,FSK

Manufacturer code: TG2000

OMI code: 374174

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 1006.56

Price details
TG2000

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 1006.56

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
AIM-TTI
Supply voltage
100...240V AC
Dimensions
260x88x235mm
Interface
USB, RS232
Number of channels
1
Kind of display used
LCD
Measurement accuracy
10ppm/year; ±1mHz @ <0,2Hz
Measuring instrument features
Direct Digital Synthesized (DDS) technology, high stability
Display parameters
6 digits
Resolution
1mHz or 6 digits
Connectors for the country
Great Britain
Type of generator
function
Plug variant
EU
Maximum waveform frequency
20MHz
Waveform frequency range
1mHz...1MHz (triangle waveform), 1mHz...20MHz (other waveforms), 1mHz...20MHz (rectangular waveform), 1mHz...20MHz (sinus waveform)
Output parameters
impedance: 50Ω or 600Ω, amplitude accuracy: ±3% ±1mV at 1kHz 50Ω/600Ω, amplitude at 50Ω load 2,5mVpp-10Vpp, amplitude flatness: ±2dB to 500Hz; ±1dB to 10MHz, amplitude without load: 5mVpp-20Vpp
Sweep mode
mode: linear or logarithmic; single or continous, period: 50m...999s (resolution 3 digits), range: 0,2...10/20MHz
Kind of modulation
AM, FSK
Waveforms
impulse, rectangular, sinus, triangle
Rectangular waveform parameters
aberrations: 5% + 2mV, rise/fall time: <22ns
Harmonic distortion level
< 0,3% THD (<20kHz), typically 0,1%, < -35dBc (<10MHz), typically < -40dBc, < -45dBc (<300kHz)
Triangle waveform parameters
linearity: <0,5% to 100 kHz
Pulse signal
amplitude at 50Ω load: 2,5mVpp-10Vpp (with respect to DC offset baseline)
External amplitude modulation
carrier frequency: 1mHz...10MHz, carrier waveforms: all, modulation source: VCA IN socket
Gross weight 2651.20 g
Documentation in English #1 Documentation in English #2 Documentation in English #3

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Generators and Frequency Meters
