EX655 EXTECH

Details

EX655
EX655
EX655
EX655
EX655
EX655
EX655
EX655
EX655
  • EX655
  • EX655
  • EX655
  • EX655
  • EX655
  • EX655
  • EX655
  • EX655
  • EX655

Manufacturer product page EXTECH

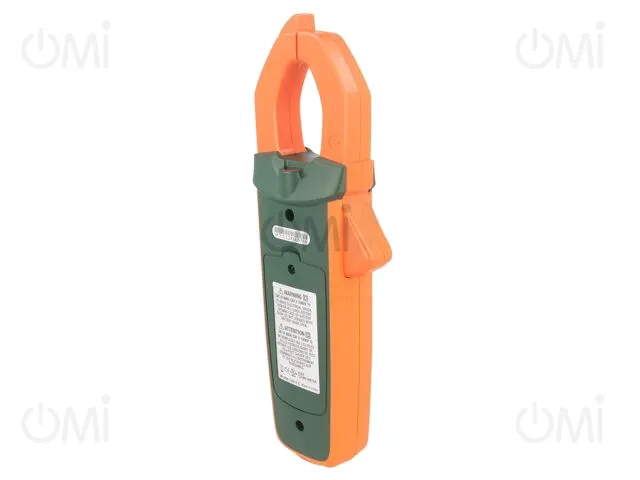

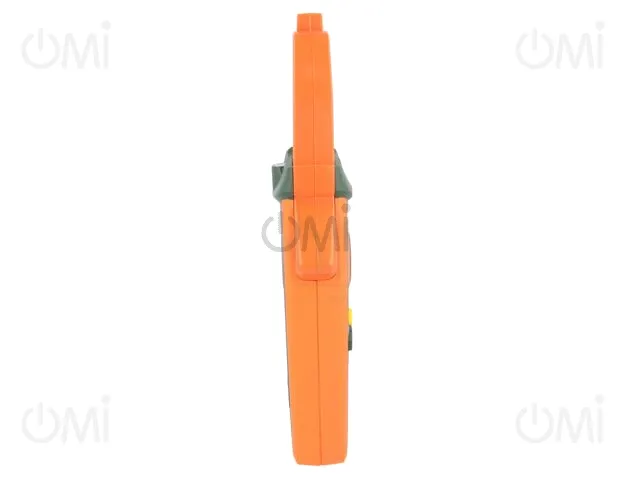

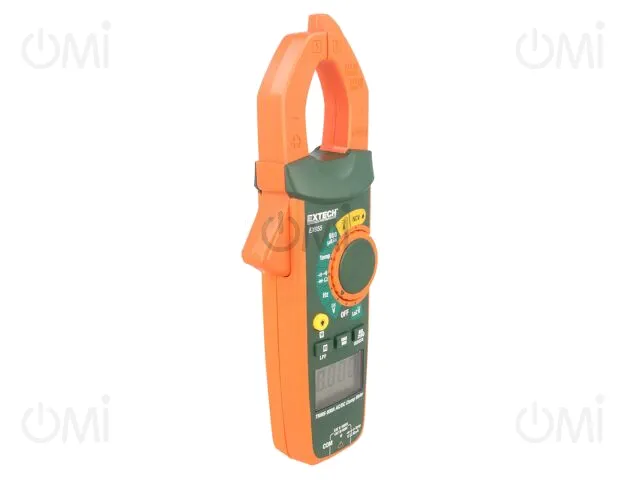

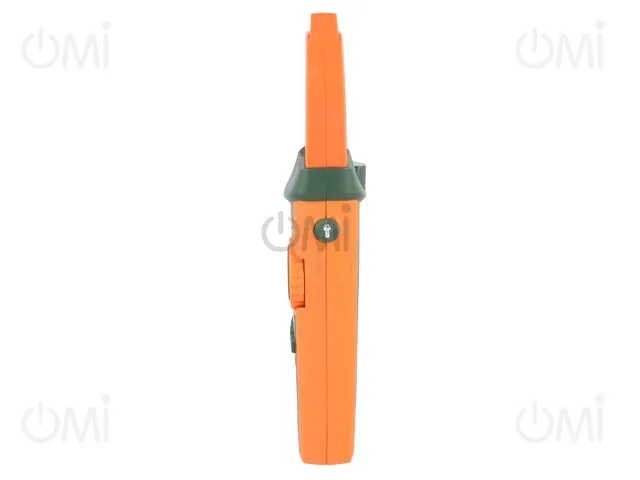

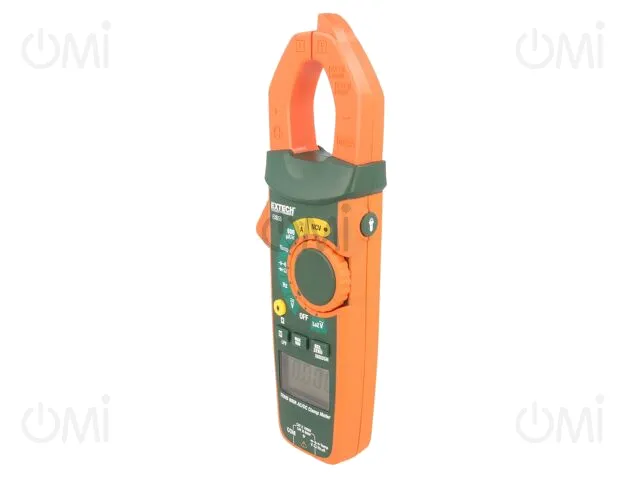

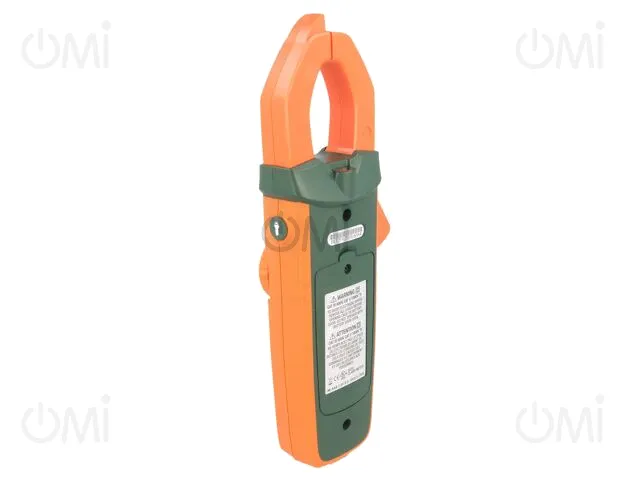

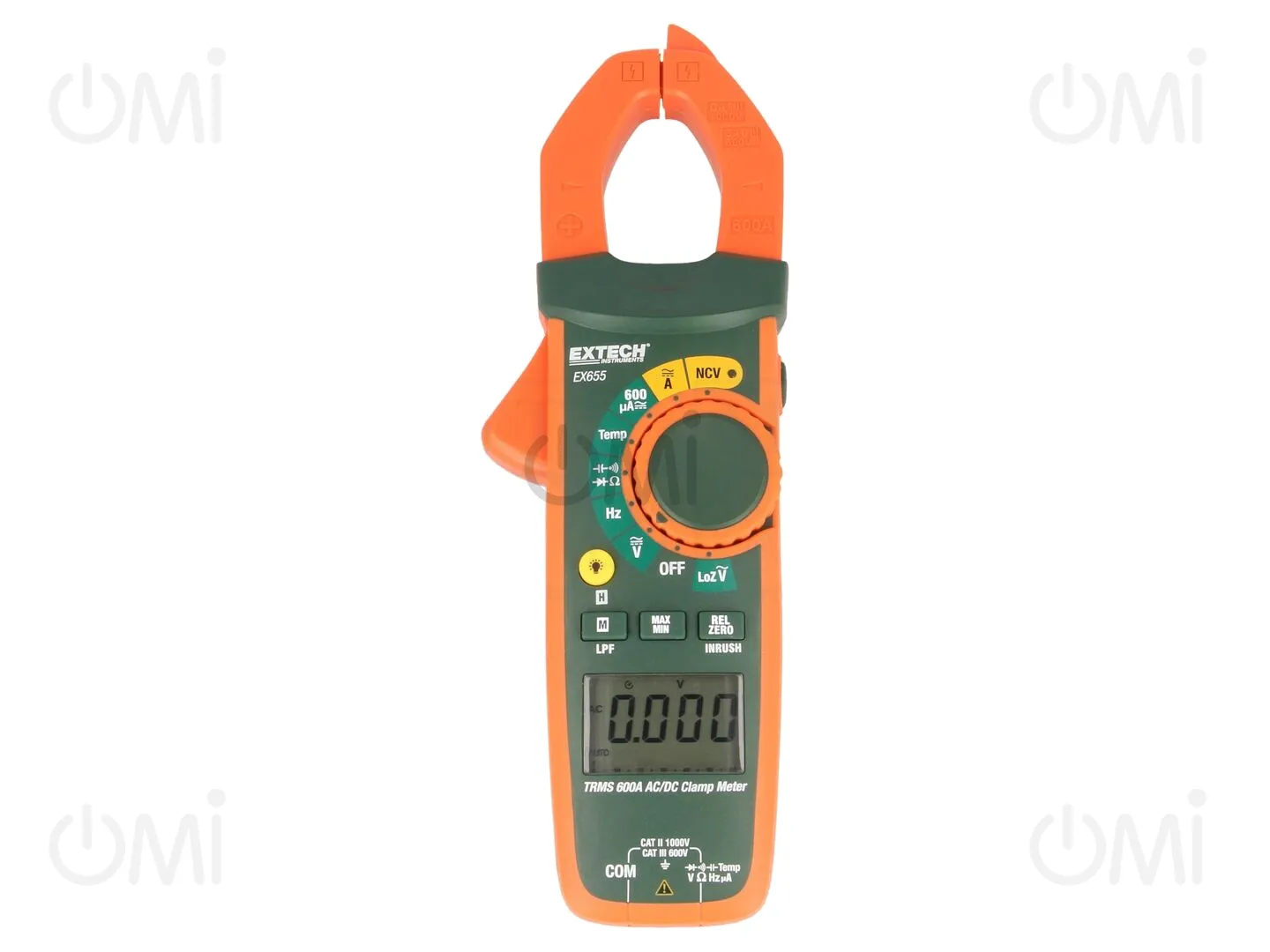

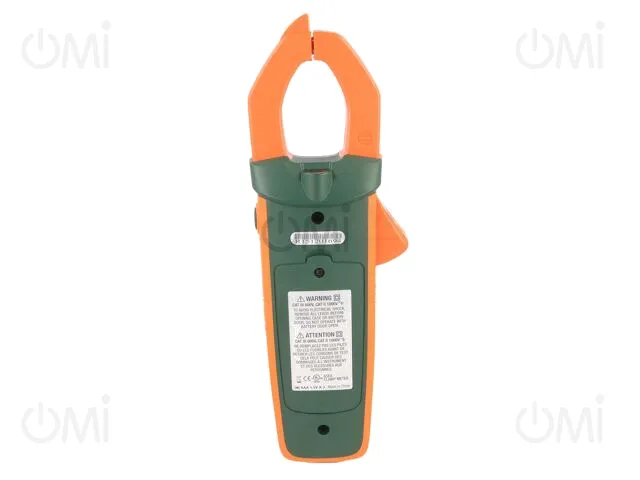

Meter: multifunction; digital,pincers type; Øcable: 30mm; LCD

Manufacturer code: EX655

OMI code: 374593

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

2 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 129.32
3+ 124.01

Price details
EX655

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 129.32
3+ 124.01

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
EXTECH
Conform to the norm
CAT III 600V, CAT II 1000V, EN 61010
Dimensions
288x77x41mm
Kind of display used
LCD
Illumination
yes
Power supply
battery LR03 AAA 1,5V x3
Standard equipment
test leads, temperature probe
Measuring instrument features
automatic power-off, auto and manual ranging, HOLD function, low-pass filter for measuring drive parameters, non-contact voltage detector
Temperature measurement accuracy
±(3% + 5 digits)
Display parameters
(6000)
Type of meter
multifunction
Temperature measuring range
-40...1000°C
True effective value measurement
True RMS AC
Measurement
AC current, DC current, DC voltage, resistance, temperature, AC voltage, frequency, inrush current, capacitance
Kind of meter
digital, pincers type
AC current measuring range
600A, 60A, 600µA
Weight without batteries
265g
Continuity test
acoustic indication, <30Ω
Frequency measuring range
10...1MHz
Bargraph
yes
Pollution degree
2
Resistance measuring range
6kΩ, 60kΩ, 6MΩ, 600Ω, 60MΩ, 600kΩ
DC current measuring range
600A, 60A, 600µA
Max. diameter of measured cable
30mm
DC voltage measuring range
1kV, 600V, 600mV, 6V, 60V
AC voltage measuring range
600V, 750V, 6V, 60V
AC current measuring accuracy
±(2.5% + 5 digit)
DC voltage measuring accuracy
±(0.8% + 3 digit)
Capacitance measuring range
60nF, 600µF, 6mF, 600nF, 6µF, 60µF, 60mF
DC current measuring accuracy
±(1% + 2 digit)
Diode test
3V
AC voltage measuring accuracy
±(1.2% + 5 digit)
Resistance measuring accuracy
±(1%+2 digit)
Frequency measuring accuracy
±(0.1%+3 digit)
Capacitance measuring accuracy
±(4%+ 5 digit)
Gross weight 571.88 g
Documentation in English #1 Documentation in English #2 Documentation in English #3 Documentation in English #4

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Meters and AC/DC Clamp Probes
