70122183 PICOTRONIC

Details

70122183
  • 70122183

Manufacturer product page PICOTRONIC

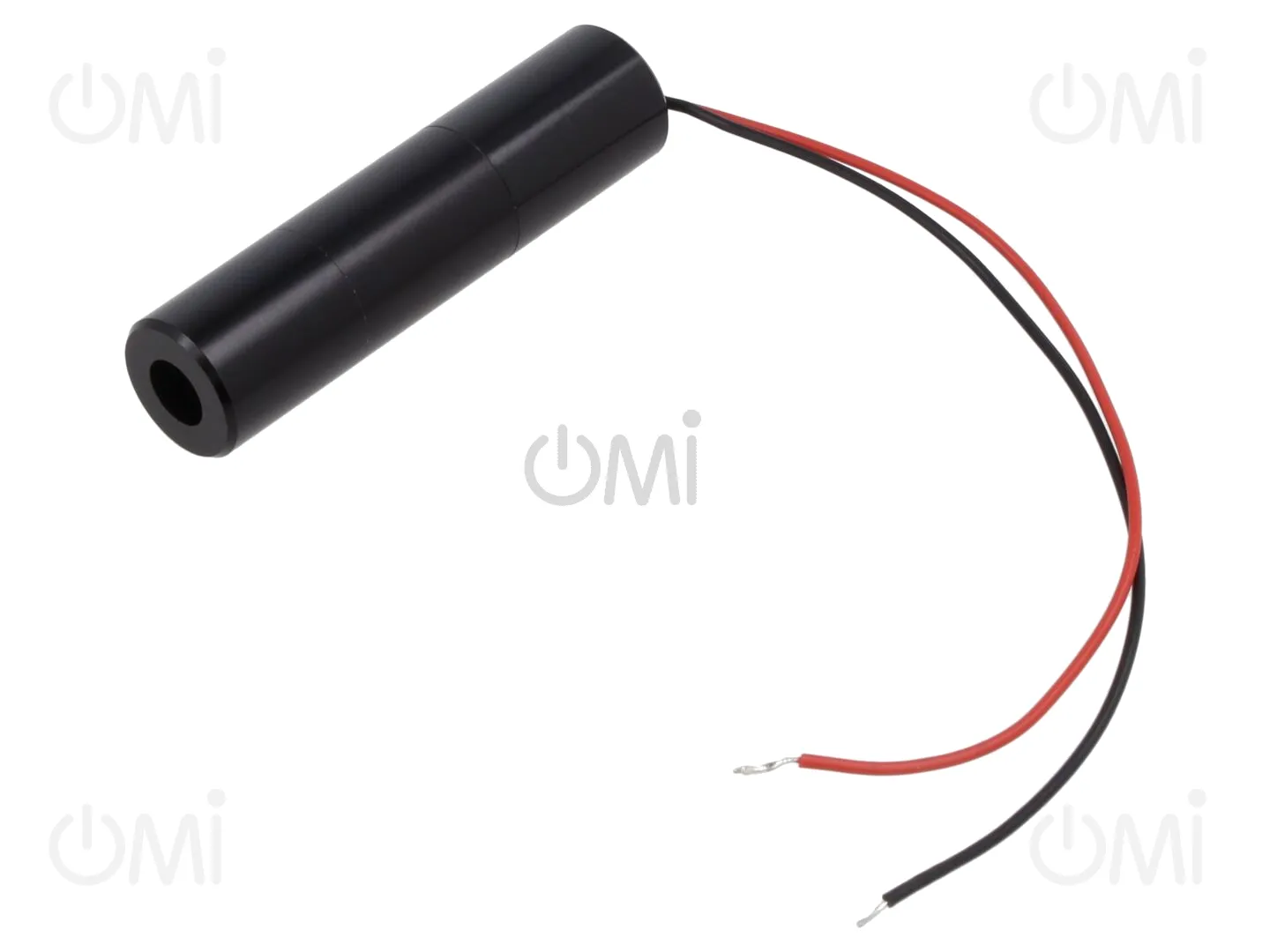

Module: laser; 2mW; red; cross; 635nm; 23.4÷24.5VDC; 10÷40mA; 5÷10°

Manufacturer code: 70122183

OMI code: 379955

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

1 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 129.36

Price details
70122183

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 129.36

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
PICOTRONIC
Power
2mW
Operating current
10...40mA
Supply voltage
23.4...24.5V DC
Colour
red
Body dimensions
Ø16x64mm
Wavelength
635nm
Type of module
laser
Electrical connection
100mm wires
Optical head
cross
Viewing angle
5...10°
Gross weight 41.20 g
Documentation in English #1
