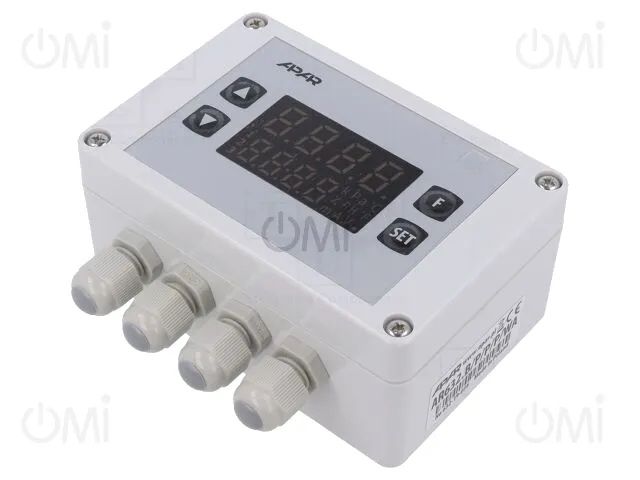

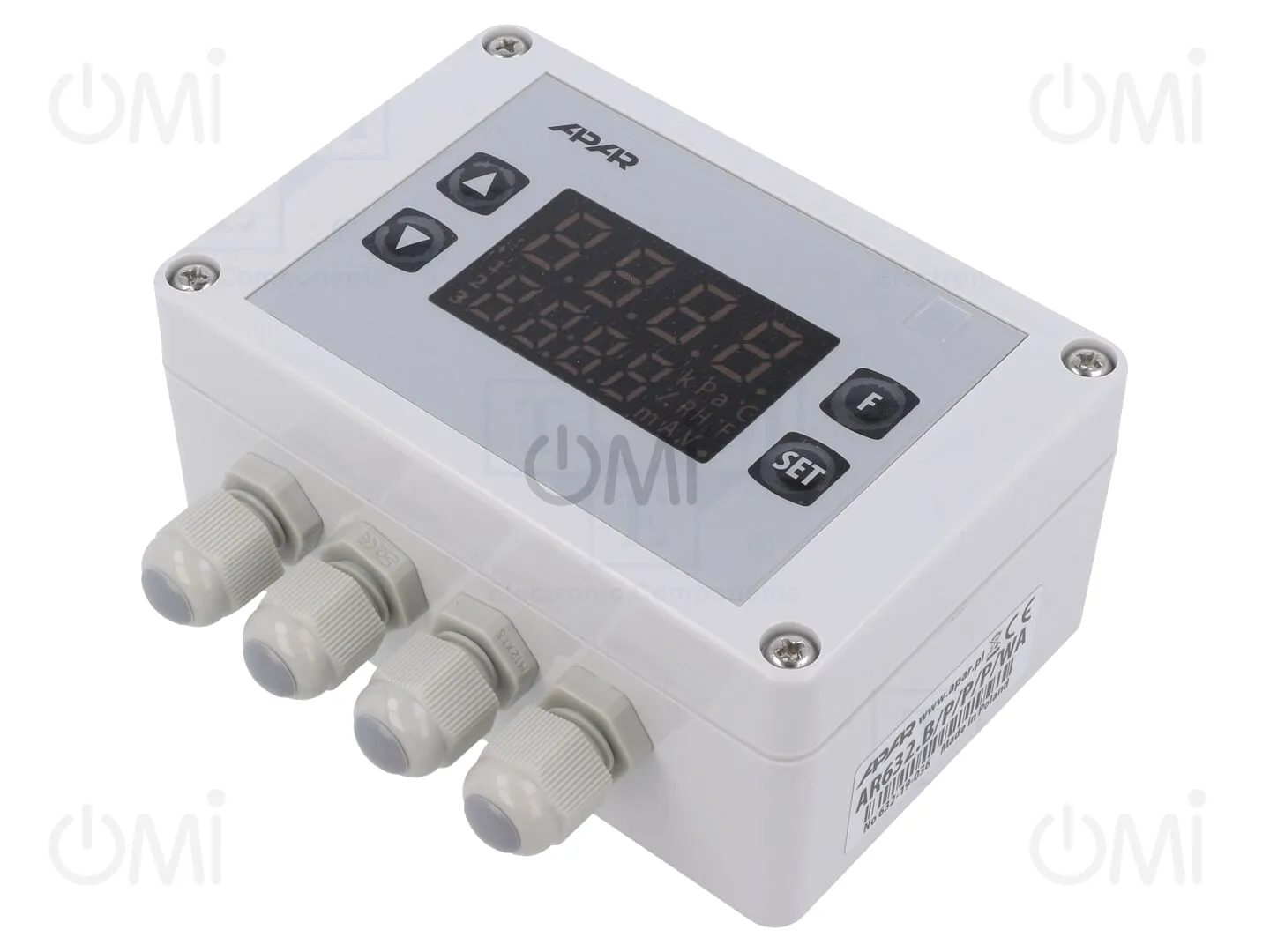

AR632.B/P/P/P/WA APAR

Details

AR632.B/P/P/P/WA
  • AR632.B/P/P/P/WA

Manufacturer product page APAR

Module: regulator; pressure,speed,temperature,humidity; SPDT

Manufacturer code: AR632.B/P/P/P/WA

OMI code: 384676

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

1 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 218.3
5+ 211.59

Price details
AR632.B/P/P/P/WA

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 218.3
5+ 211.59

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
APAR
Mounting
for wall mounting
Operating temperature
0...50°C
IP rating
IP65 (from the front)
Supply voltage
18...265V AC, 22...350V DC
Body dimensions
120x80x55mm
Type of module
regulator
Kind of display used
LED x2
Kind of output 1
SPDT
The programming method
foil keypad
Additional functions
temperature compensation of thermocouple cold ends, error messages on the LED display
Controlled parameter
pressure, temperature, speed, humidity
Kind of temperature sensor
Pt100, thermocouple B, thermocouple E, thermocouple J, thermocouple K, thermocouple N, thermocouple R, thermocouple S, thermocouple T, Pt1000, Ni100, Pt500
Regulation for output 1
ON-OFF, PID, ON-OFF with hysteresis, AUTOTUNING
Display parameters
4-digit
Controlled parameter range
-1999...9999
Kind of input 1
0...20mA, 4...20mA, universal, 0...60mV, 0...10V DC, 0...2,5kΩ
Input 1 properties
RTD, thermocouple
Display height 1
14mm
Display 2 height
10mm
Kind of output 2
SPST-NO
Kind of output 3
SPST-NO
Regulation for output 2
ON-OFF with hysteresis, ON-OFF
Kind of output 4
SPST-NO, 0/4...20mA
Gross weight 473.90 g
Documentation in English #1 Documentation in English #2
