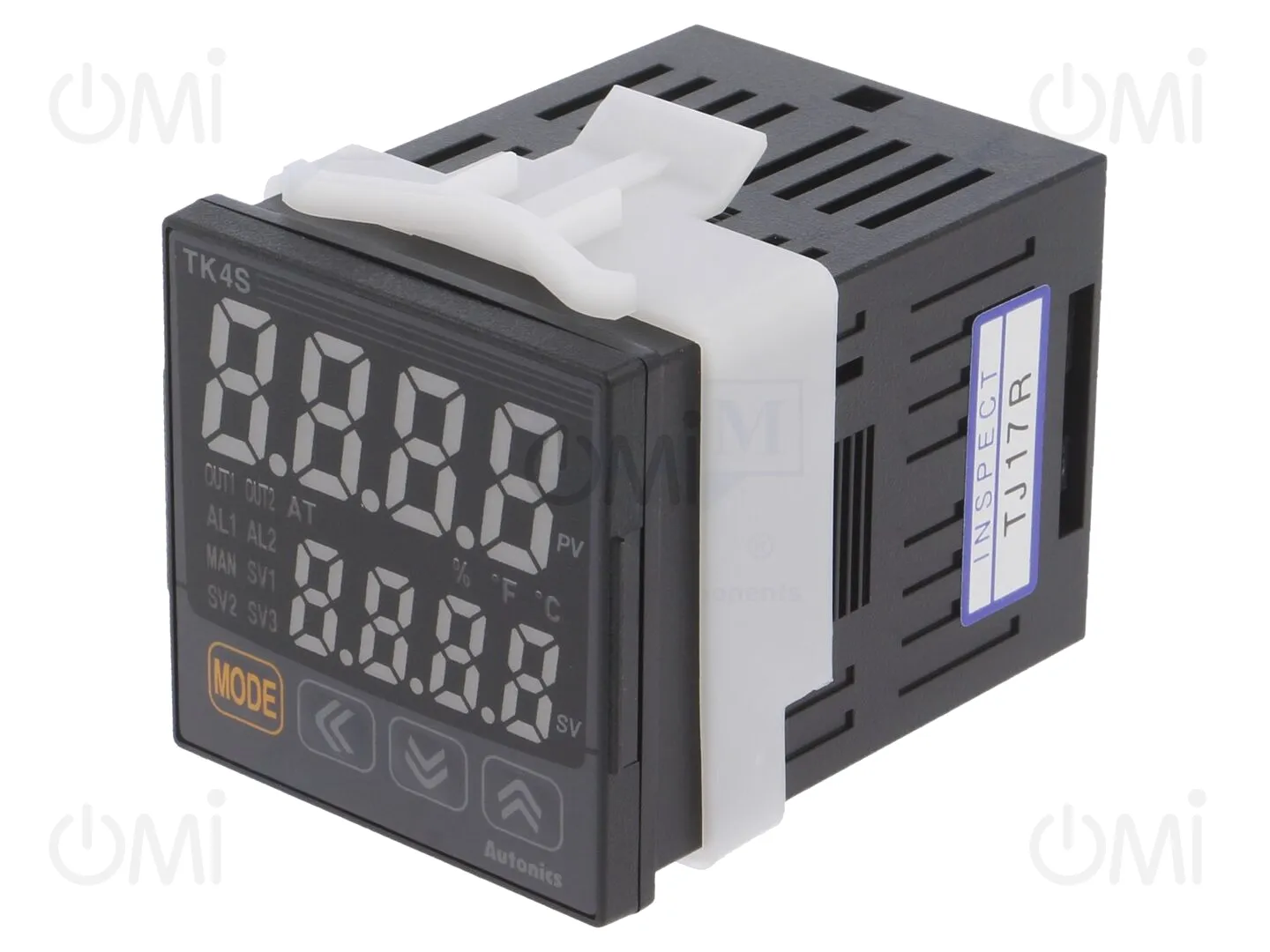

TK4SP-14SC AUTONICS

Details

TK4SP-14SC
  • TK4SP-14SC

Manufacturer product page AUTONICS

Module: regulator; temperature; on panel,socket; -10÷50°C; IP65

Manufacturer code: TK4SP-14SC

OMI code: 388313

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 54.63

Price details
TK4SP-14SC

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 54.63

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
AUTONICS
Mounting
on panel, socket
Operating temperature
-10...50°C
IP rating
IP65
Manufacturer series
TK4S
Body dimensions
48x48x70.5mm
Mounting hole diameter
45x45mm
Type of module
regulator
Kind of display used
LED x2
The programming method
foil keypad
Controlled parameter
temperature
Kind of temperature sensor
Cu50, Cu100, JPt100, Ni120, Pt50, Pt100, thermocouple B, thermocouple C, thermocouple E, thermocouple G, thermocouple J, thermocouple K, thermocouple L, thermocouple N, thermocouple PLII, thermocouple R, thermocouple S, thermocouple T, thermocouple U
Regulation for output 1
ON-OFF, P, PD, PI, PID
Controlled parameter range
-1999...9999
Kind of input 1
0...5V, 0...10V, 0...20mA, 0...100mV, 4...20mA, universal
Input 1 properties
analogue voltage, current analog, RTD, thermocouple
Display height 1
14mm
Display 2 height
10mm
Gross weight 130.00 g
Documentation in English #1 Documentation in English #2 Documentation in English #3

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Temperature Regulators
