9-1393211-1 TE Connectivity

Details

9-1393211-1
9-1393211-1
9-1393211-1
9-1393211-1
9-1393211-1
9-1393211-1
9-1393211-1
9-1393211-1
9-1393211-1
  • 9-1393211-1
  • 9-1393211-1
  • 9-1393211-1
  • 9-1393211-1
  • 9-1393211-1
  • 9-1393211-1
  • 9-1393211-1
  • 9-1393211-1
  • 9-1393211-1

Manufacturer product page TE Connectivity

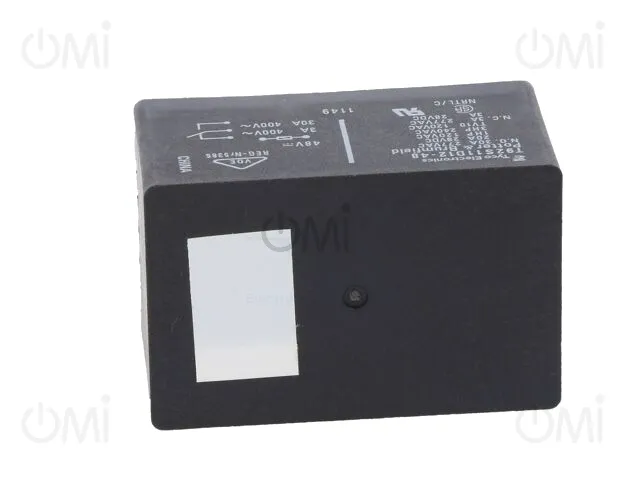

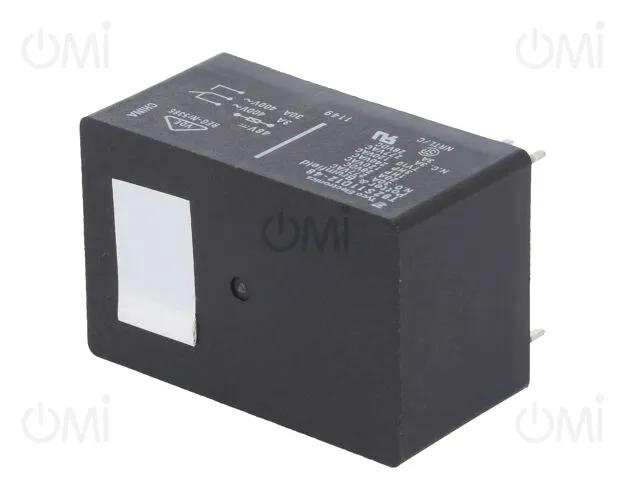

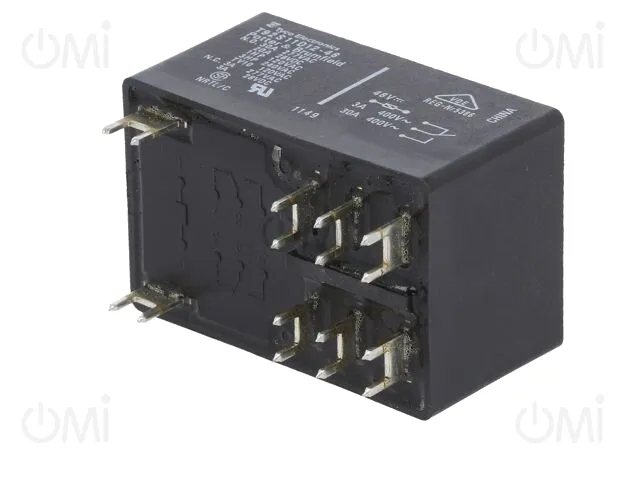

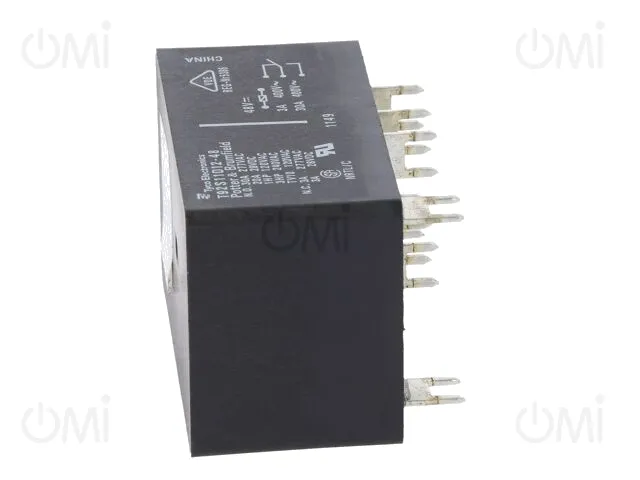

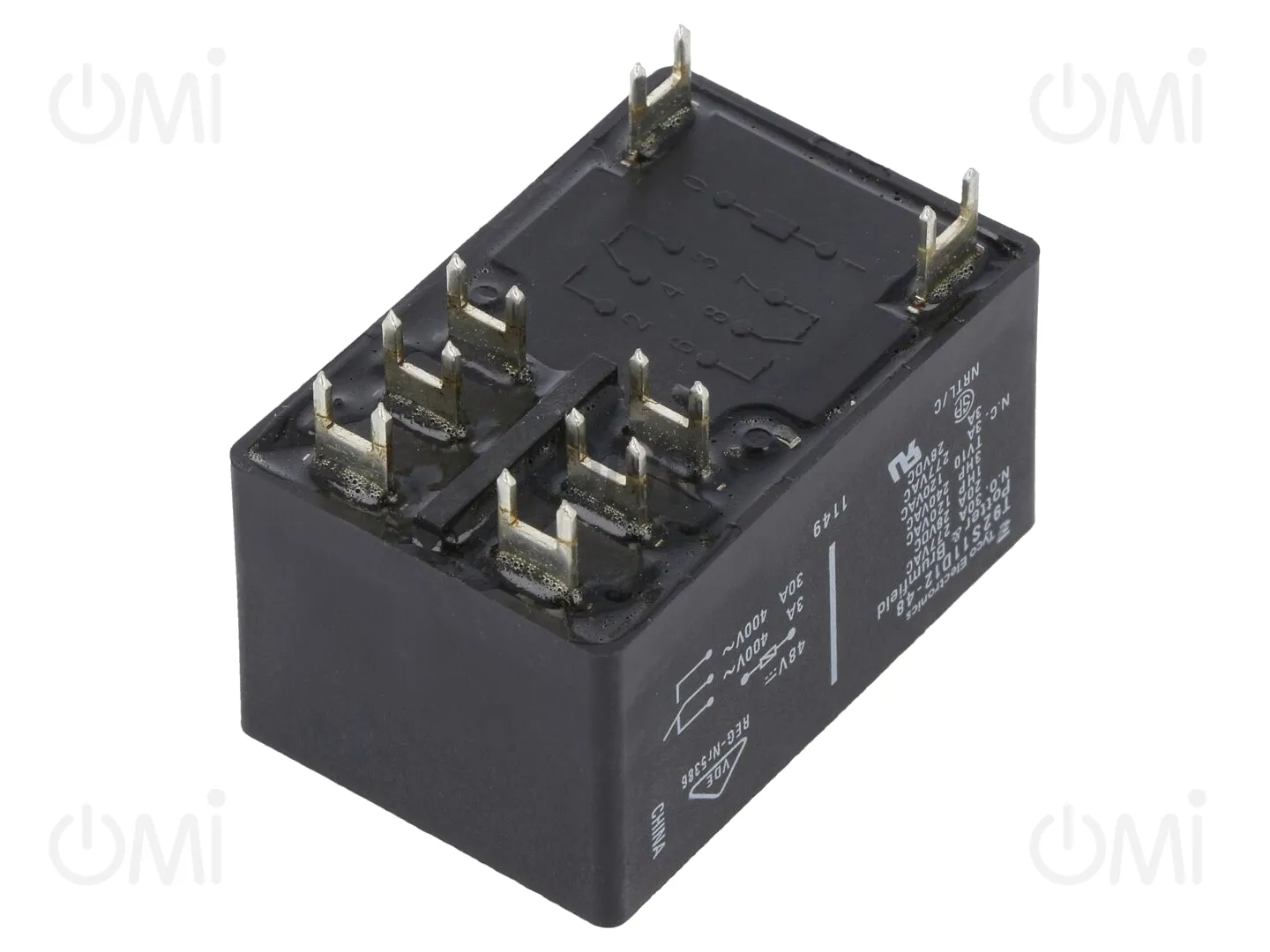

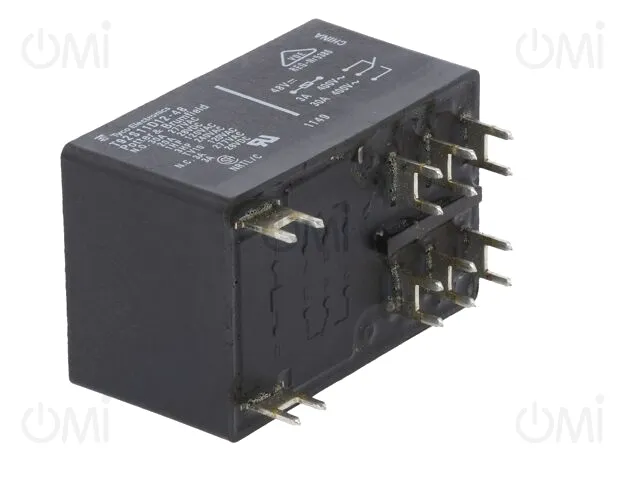

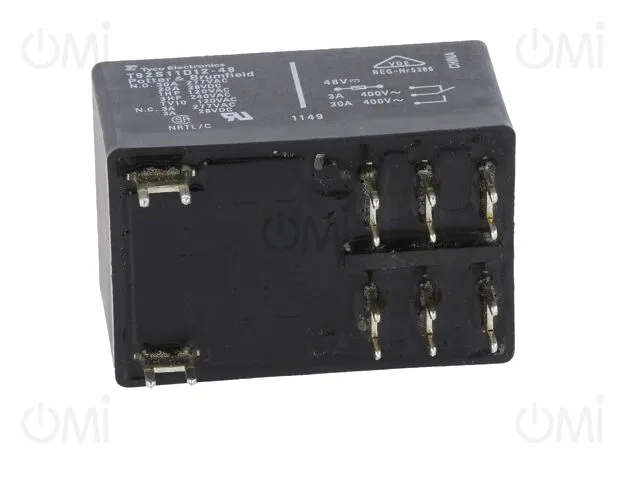

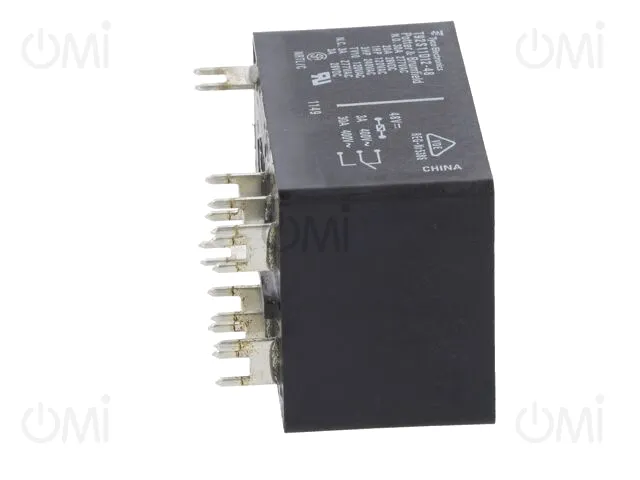

Relay: electromagnetic; DPDT; Ucoil: 48VDC; 30A; Series: T92; PCB

Manufacturer code: 9-1393211-1

OMI code: 394981

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

1 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 20.1
2+ 19.02
240+ 17.94

Price details
9-1393211-1

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 20.1
2+ 19.02
240+ 17.94

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
TE Connectivity
Mounting
PCB
Operating temperature
-40...85°C
Leads
for PCB
Contacts configuration
DPDT
Body dimensions
52.32x34.54x30.73mm
Mechanical durability
5000000 cycles
Contact material
AgCdO
Switched voltage
max. 28V DC, max. 600V AC
AC contacts rating @R
30A / 277V AC
DC contacts rating @R
20A / 28V DC
Type of relay
electromagnetic
Contact current max.
30A
Relay variant
power
Relay series
T92
Coil resistance
1.39kΩ
Rated coil voltage
48V DC
Coil power consumption
1.7W
Gross weight 79.60 g

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Power Electromagnetic Relays
