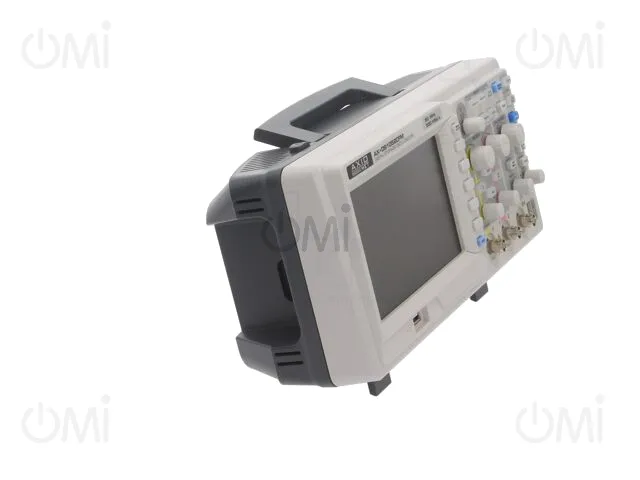

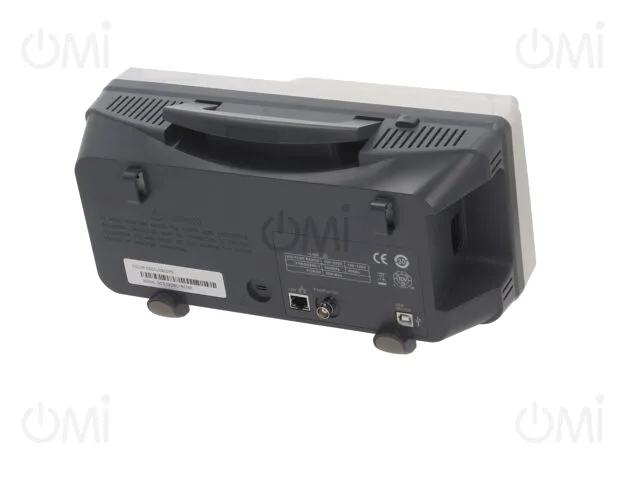

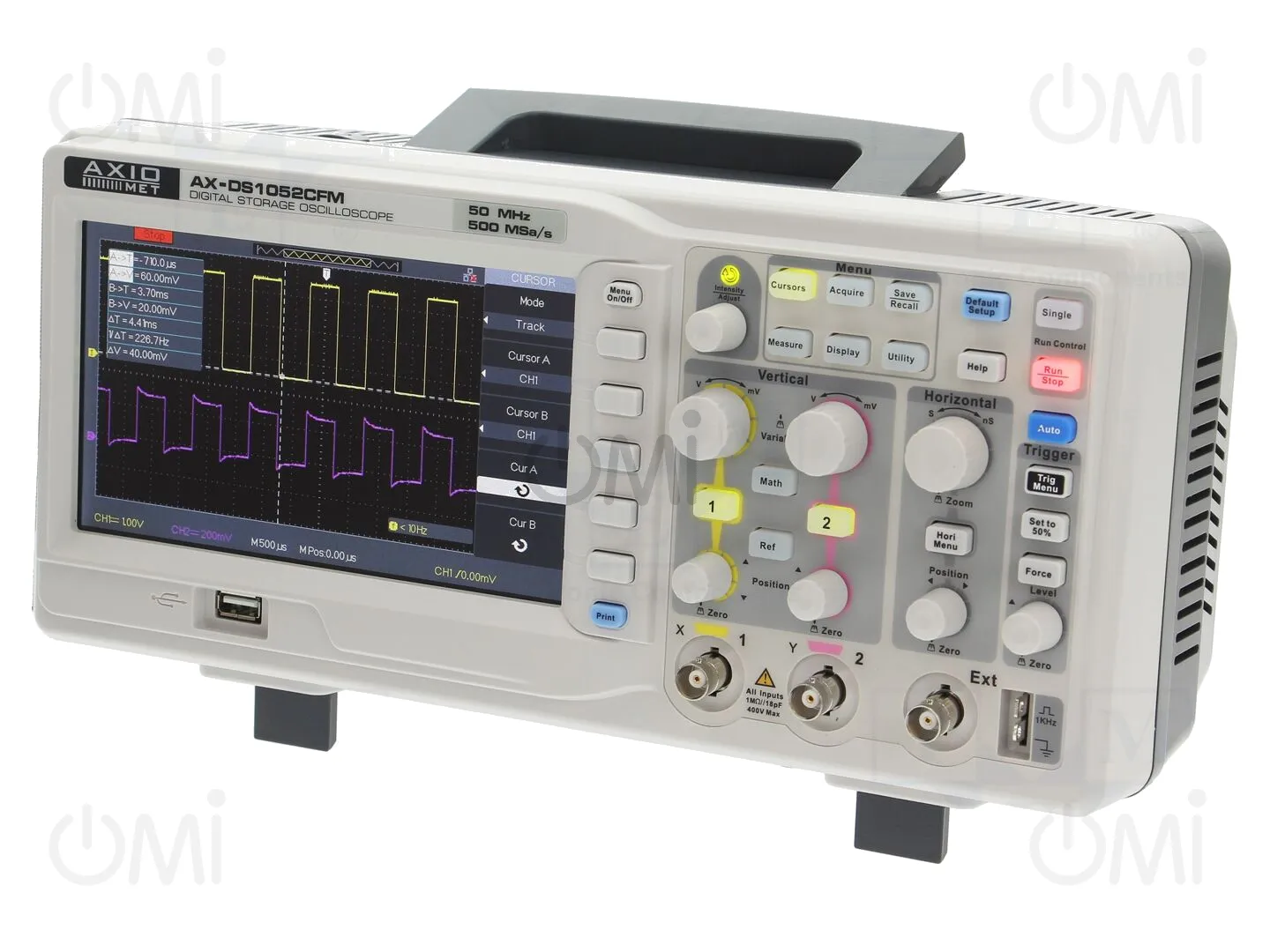

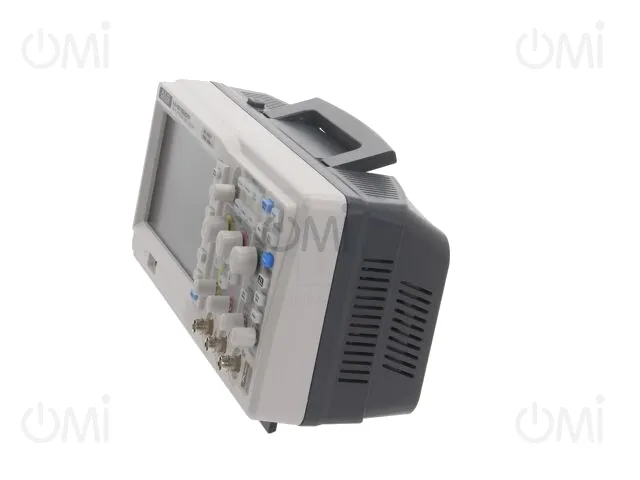

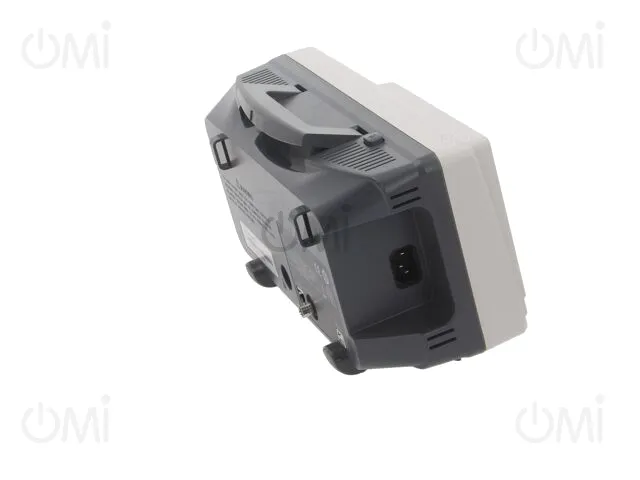

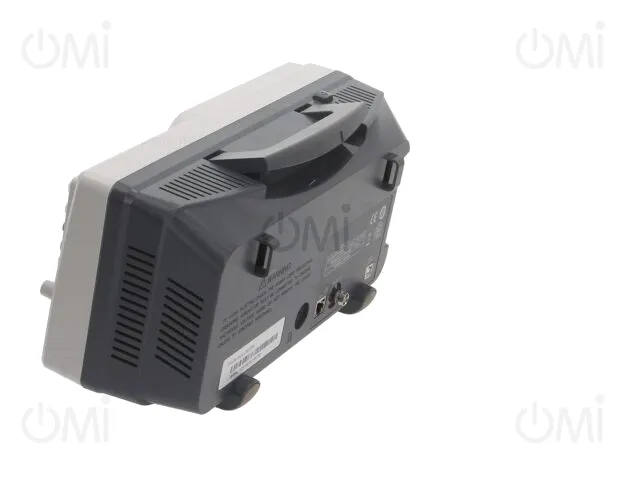

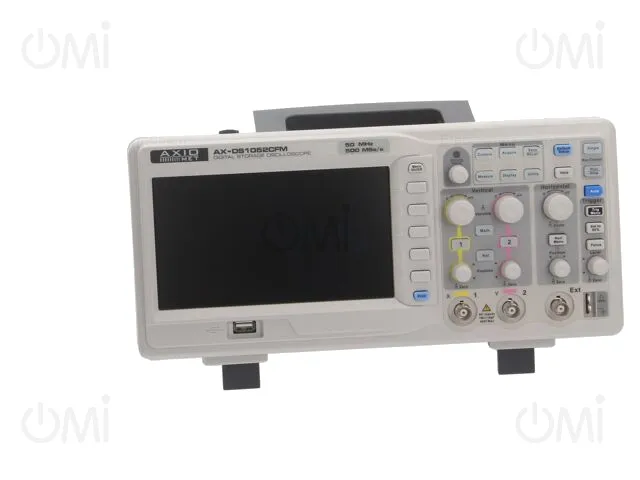

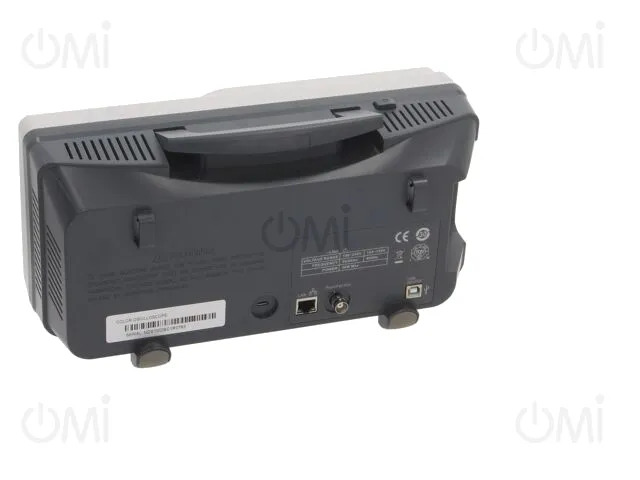

AX-DS1052CFM AXIOMET

Details

AX-DS1052CFM
AX-DS1052CFM
AX-DS1052CFM
AX-DS1052CFM
AX-DS1052CFM
AX-DS1052CFM
AX-DS1052CFM
AX-DS1052CFM
AX-DS1052CFM
  • AX-DS1052CFM
  • AX-DS1052CFM
  • AX-DS1052CFM
  • AX-DS1052CFM
  • AX-DS1052CFM
  • AX-DS1052CFM
  • AX-DS1052CFM
  • AX-DS1052CFM
  • AX-DS1052CFM

Manufacturer product page AXIOMET

Oscilloscope: digital; Ch: 2; 50MHz; 500Msps (in real time); 7ns

Manufacturer code: AX-DS1052CFM

OMI code: 396395

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

2 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 366.78

Price details
AX-DS1052CFM

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 366.78

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
AXIOMET
Supply voltage
100...240V AC
Body dimensions
323.1x135.6x157mm
Interface
USB, LAN
Number of channels
2
Kind of display used
LCD TFT 7"
Standard equipment
USB cable, mains cable, oscilloscope probe (1 per channel)
Measuring instrument features
automatic measurement of many parameters, Pass/Fail function, 20 sets memory, digital filter function, displays input waveform and FFT on divided screen, integrated FFT with algorithm selection: Hamming, Hanning, Blackman, Rectangular, mathematical functions: addition, subtraction, division, multiplication and FFT
Input impedance
1MΩ/18pF
Display resolution
800x480
Plug variant
EU
Sampling
500Msps (in real time)
Band
50MHz
Trigger
rising-edge, falling-edge, impulse width, risetime, video signal
Type of oscilloscope
digital
Input coupling
AC, DC, GND
Vertical resolution
8bit
Trigger modes
automatic, normal, single
Trigger coupling
AC, DC, highpass, lowpass
Max. input voltage
400V
Rise time
7ns
Input sensitivity
2mV/div...10V/div
Time base
5n...50s/div
Memory record length
32kpts
Supply voltage 400Hz
100...120V AC
Trigger source
CH1, CH2, external signal, supply voltage source
Gross weight 3243.90 g
Documentation in English #1 Documentation in English #2 Documentation in English #3 Documentation in English #4 Documentation in English #5

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Digital Oscilloscopes

* All prices are net prices (excluding VAT) and do not include transportation costs, which will be included in the order amount. Transportation costs are available in the tab "Method and cost of delivery"

Last viewed items

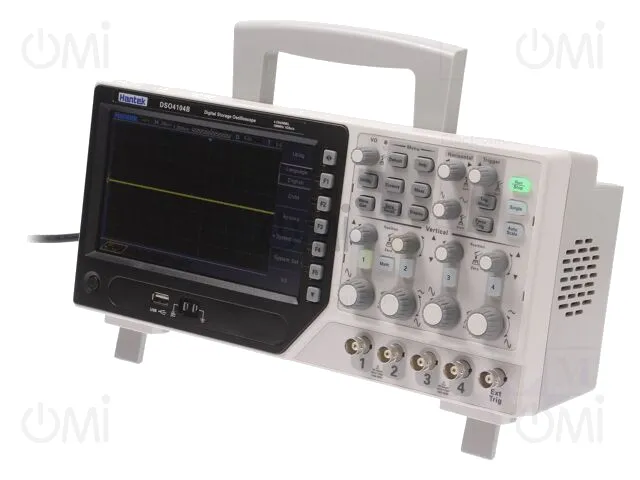

HANTEK DSO4104B
