DIP24-2A72-21L MEDER

Details

DIP24-2A72-21L
  • DIP24-2A72-21L

Manufacturer product page MEDER

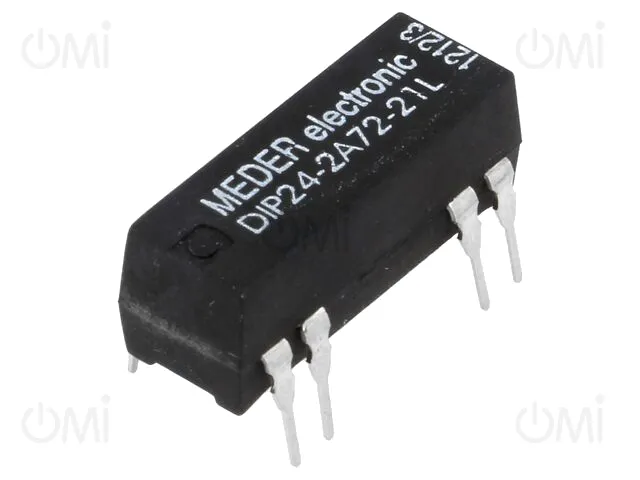

Relay: reed switch; DPST-NO; Ucoil: 24VDC; 1A; max.200VDC; 290mW

Manufacturer code: DIP24-2A72-21L

OMI code: 396786

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

460 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 6.5
5+ 3.82
10+ 3.61

Price details
DIP24-2A72-21L

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 6.5
5+ 3.82
10+ 3.61

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
MEDER
Mounting
PCB
Operating temperature
-20...70°C
Case
DIP14
Contacts configuration
DPST-NO
Body dimensions
19.3x7.5x7mm
Switched voltage
max. 200V AC, max. 200V DC
Soldering temperature
260°C
Terminal pitch
2.54mm
Type of relay
reed switch
Contact current max.
1A
Relay series
DIP
Coil resistance
2kΩ
Rated coil voltage
24V DC
Coil voltage min.
16.8V DC
Contact resistance
0.15Ω
Coil voltage max.
30V DC
Coil power consumption
290mW
Gross weight 2.05 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Reed Electromagnetic Relays
