CF10.07.04 IGUS

Details

CF10.07.04
  • CF10.07.04

Manufacturer product page IGUS

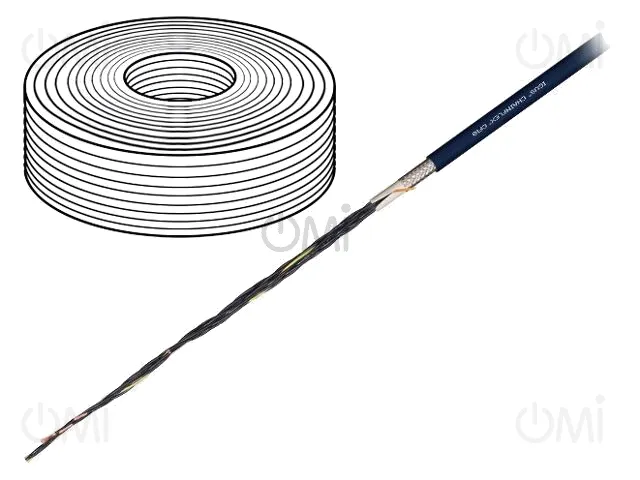

Wire: control cable; chainflex® CF10; 4G0.75mm2; black; stranded

Manufacturer code: CF10.07.04

OMI code: 399801

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

45 m

Qty.
[m] 		Price
[EUR/m]
1+ 16.09
2+ 11.27
4+ 10.67
20+ 10.66

Price details
CF10.07.04

Qty.
[m] 		Price
[EUR/m]
1+ 16.09
2+ 11.27
4+ 10.67
20+ 10.66

Quantity m (multiplicity: 5)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
IGUS
Operating temperature
-35...100°C
Wire insulation material
elastomer thermoplastic TPE
Type of wire
control cable
Number of cores
4
Resistance to
temperature, mineral oils, most of oils, UV rays, moisture
Insulation colour
black
Cable application
control for machines, indoor, industrial applications, outdoor, power chain, rapid handling systems
Kind of material
halogen free
Kind of wire
chainflex® CF10
Kind of core
Cu
Core section
0.75mm<sup>2</sup>
Cable features
self-supporting
Cable external diameter
7.5mm
Shield structure
tinned copper braid, shielded
Rated voltage
500V, 300V
Core marking
black, numbered + ground wire
Core structure
stranded
Earth core
yellow-green
CPR standard
no classification
Cable structure
4G0.75mm<sup>2</sup>
Gross weight 76.83 g
Documentation in English #1 Documentation in English #2

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Cables for Power Chains - Shielded
