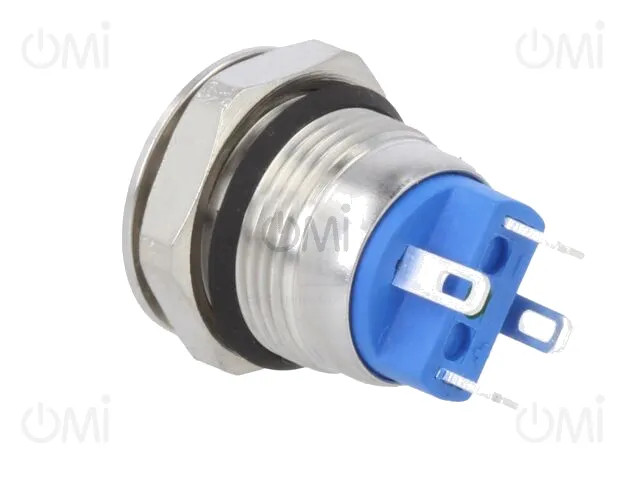

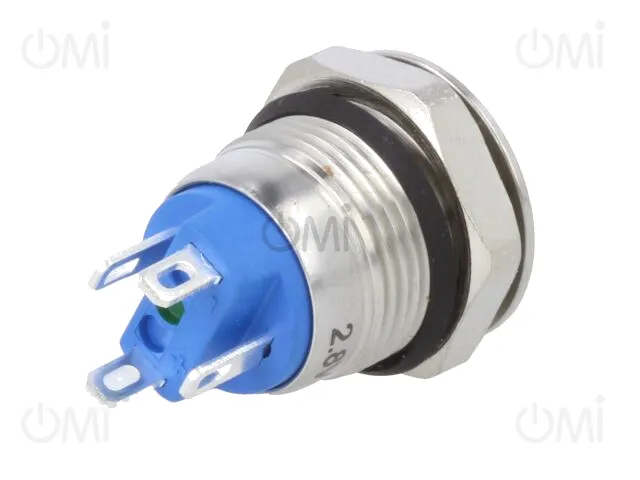

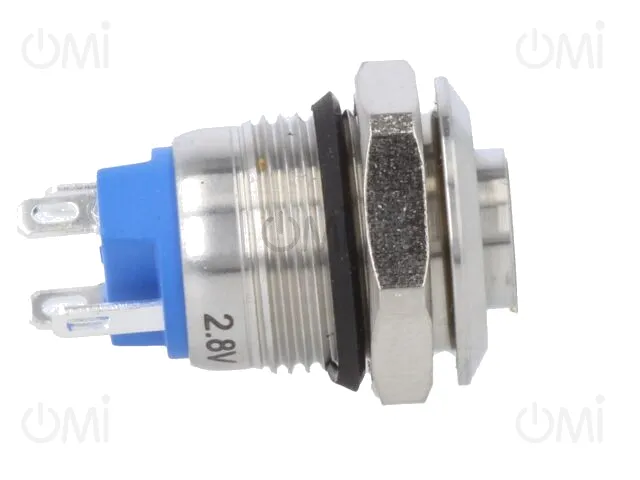

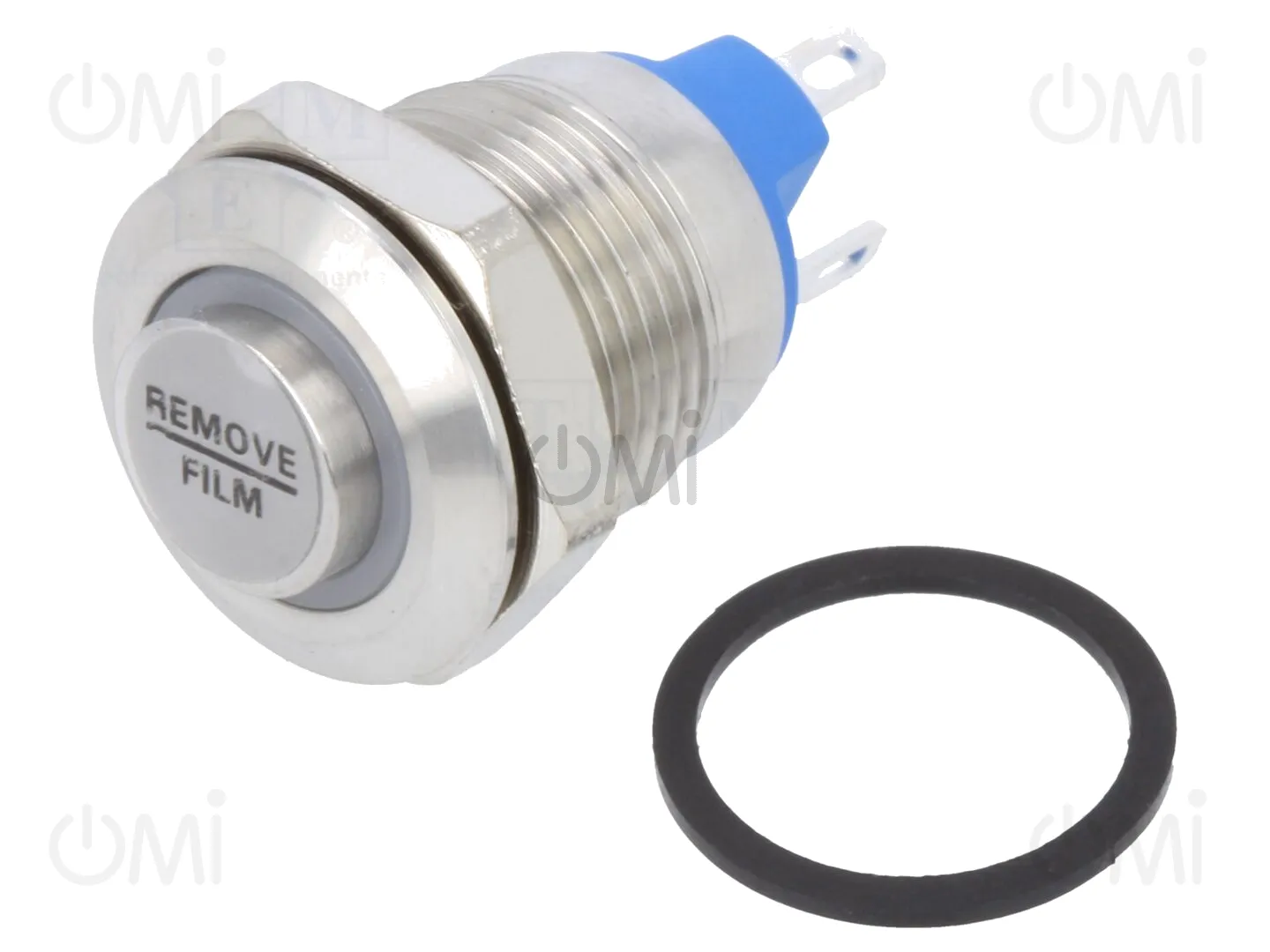

PV0H240SS-331 E-SWITCH

Details

PV0H240SS-331
PV0H240SS-331
PV0H240SS-331
PV0H240SS-331
PV0H240SS-331
PV0H240SS-331
PV0H240SS-331
PV0H240SS-331
PV0H240SS-331
  • PV0H240SS-331
  • PV0H240SS-331
  • PV0H240SS-331
  • PV0H240SS-331
  • PV0H240SS-331
  • PV0H240SS-331
  • PV0H240SS-331
  • PV0H240SS-331
  • PV0H240SS-331

Manufacturer product page E-SWITCH

Switch: vandal resistant; Pos: 2; SPST-NO; 2A/36VDC; IP65; OFF-(ON)

Manufacturer code: PV0H240SS-331

OMI code: 406581

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

89 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 16.26
2+ 12.98
4+ 12.27
250+ 12.19

Price details
PV0H240SS-331

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 16.26
2+ 12.98
4+ 12.27
250+ 12.19

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
E-SWITCH
Mounting
on panel
Type of switch
vandal resistant
Operating temperature
-20...55°C
IP rating
IP65
Leads
for soldering
Manufacturer series
PV0
Contacts configuration
SPST-NO
Body material
stainless steel
Switching method
OFF-(ON)
Mechanical durability
1000000 cycles
Electrical life
200000 cycles
Contact material
silver
Mounting hole diameter
Ø12mm
Number of positions
2
DC contacts rating @R
2A / 36V DC
Illumination
LED
Max. contact resistance:
50mΩ
Backlight colour
green
Button shape
prominent
Stable positions number
1
Operating Force
4N
Button material
stainless steel
Ring shape
rounded
Gross weight 6.11 g
Documentation in English #1 Documentation in English #2

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Push Button Switches
