EB163A-06-C ADAM TECH

Details

EB163A-06-C
  • EB163A-06-C

Manufacturer product page ADAM TECH

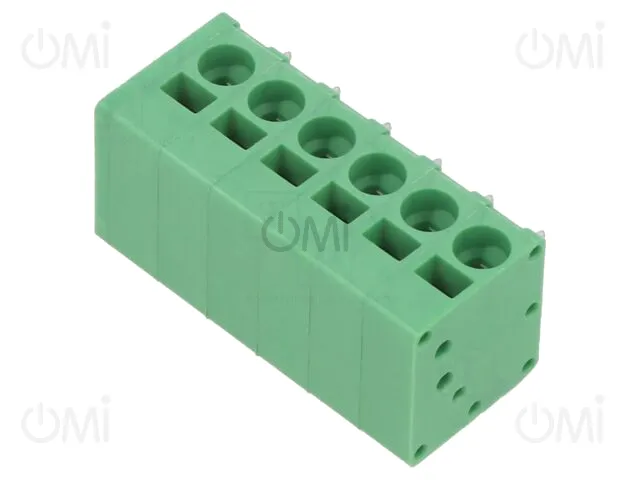

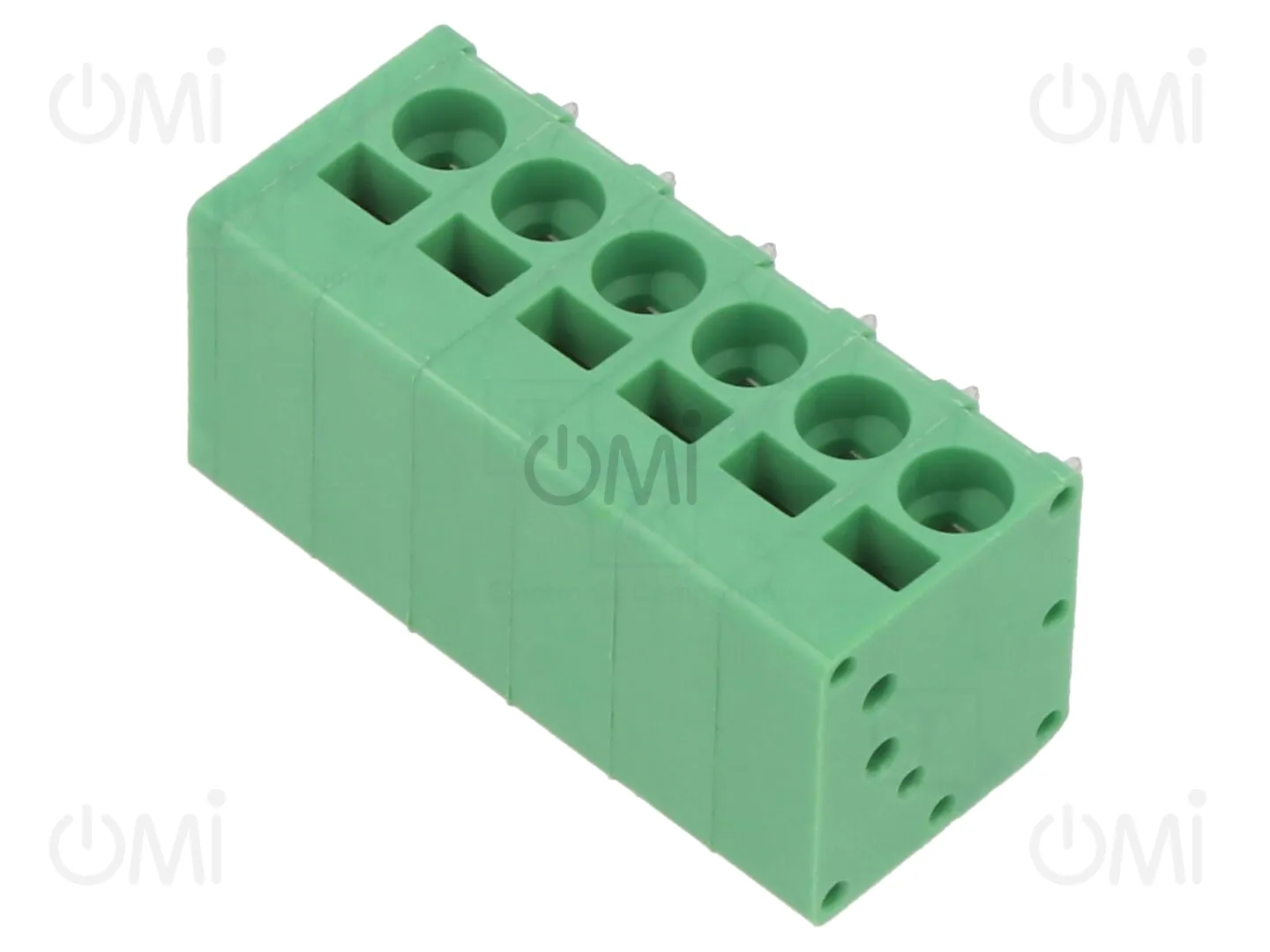

PCB terminal block; angled 90°; 5mm; ways: 6; on PCBs; 24AWG÷12AWG

Manufacturer code: EB163A-06-C

OMI code: 407497

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

292 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 4.59
10+ 3.26
12+ 1.55
26+ 2.16

Price details
EB163A-06-C

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 4.59
10+ 3.26
12+ 1.55
26+ 2.16

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
ADAM TECH
Operating temperature
-40...105°C
Length
30mm
Current rating
20A
Flammability rating
UL94V-0
Connector pinout layout
1x6
Colour
green
Body material
polyamide
Contact material
copper alloy
Height
14.4mm
Connector
terminal
Contacts pitch
5mm
Electrical mounting
THT, spring clamp
Mechanical mounting
on PCBs
Wire size
24AWG...12AWG
Type of connector
PCB terminal block
Spatial orientation
angled 90°
Rated voltage
300V
Depth
13.5mm
Number of ways
6
Connectors features
assembling possibility
Gross weight 7.09 g

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: PCB terminal blocks

* All prices are net prices (excluding VAT) and do not include transportation costs, which will be included in the order amount. Transportation costs are available in the tab "Method and cost of delivery"
