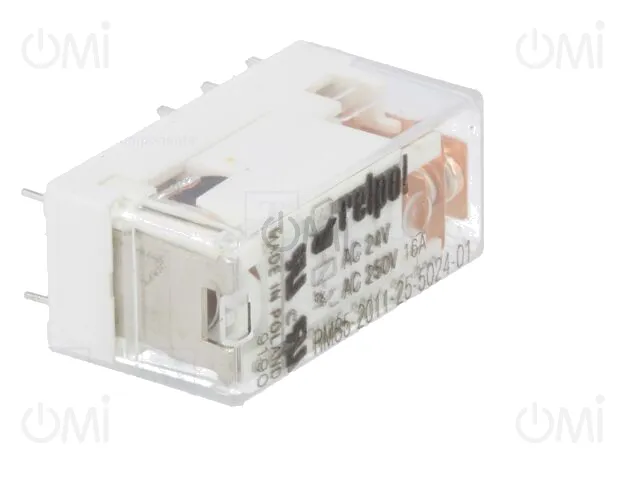

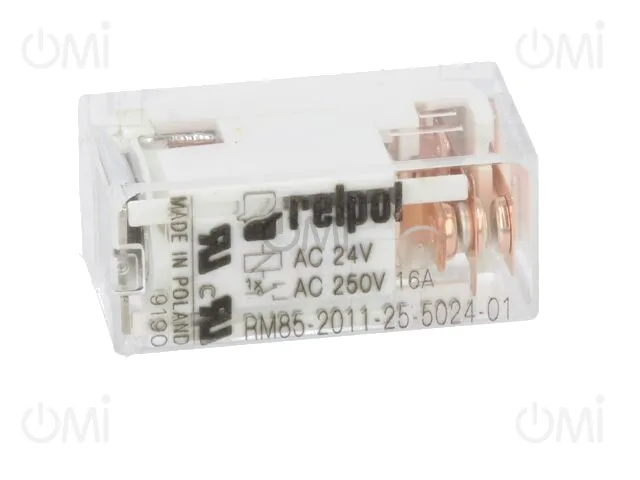

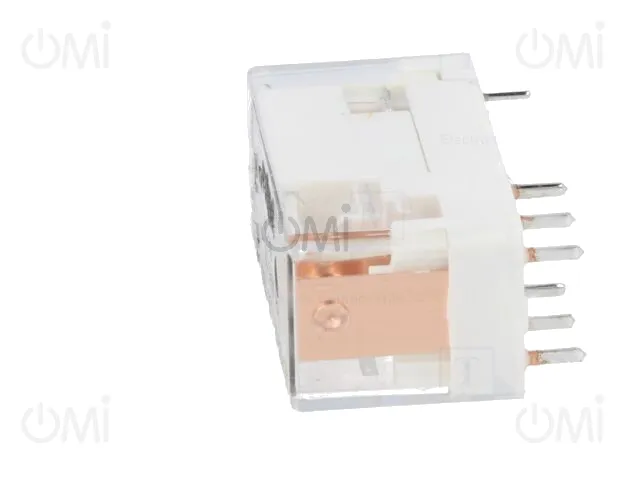

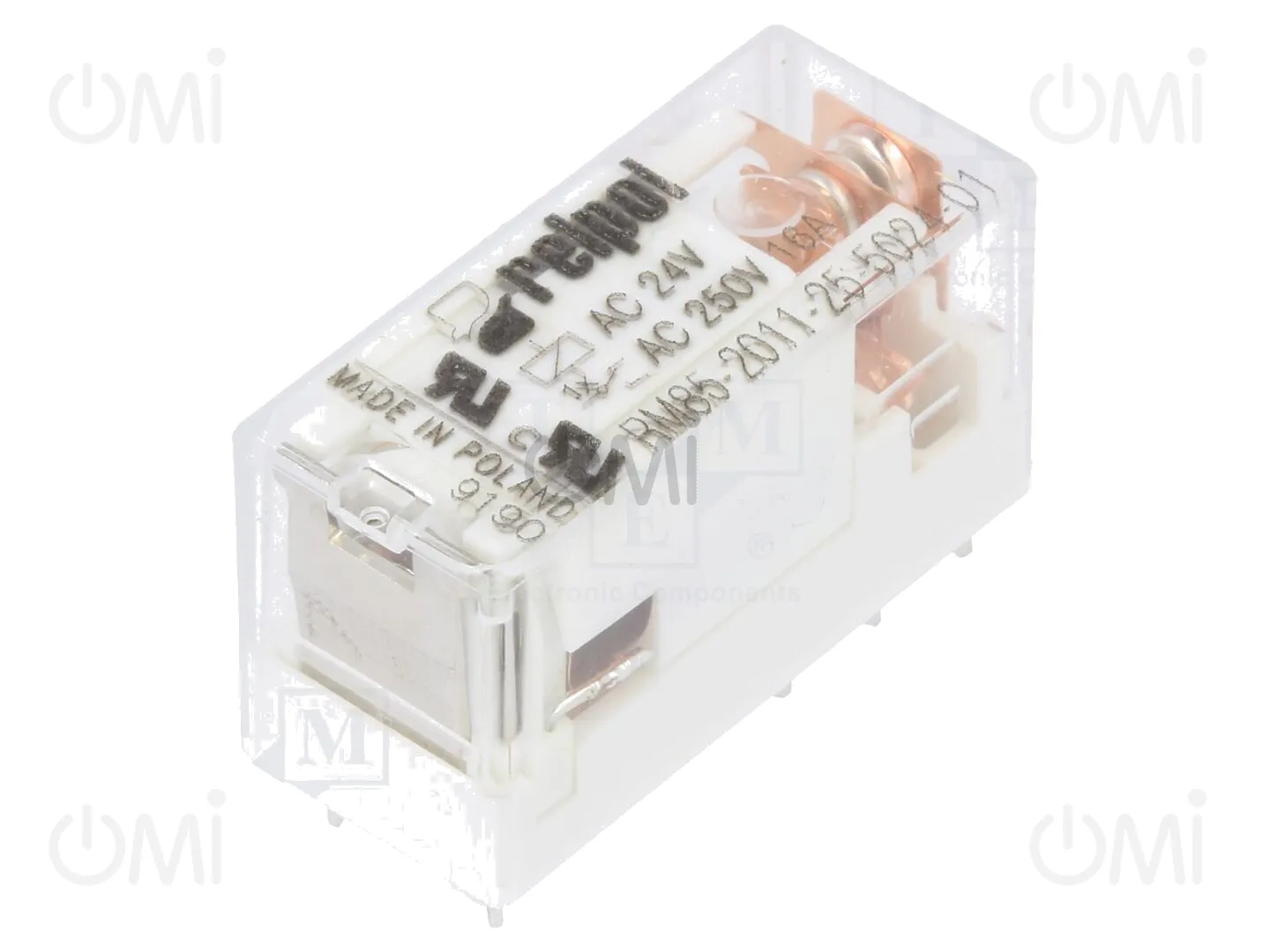

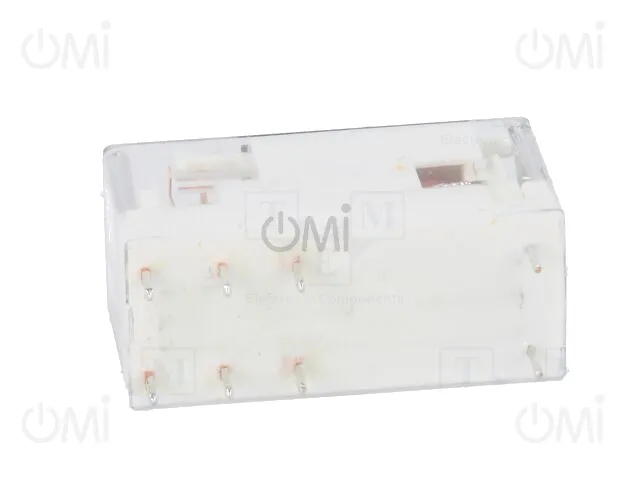

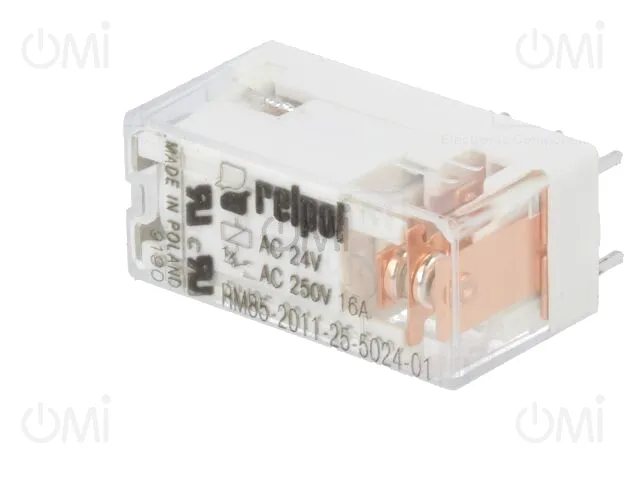

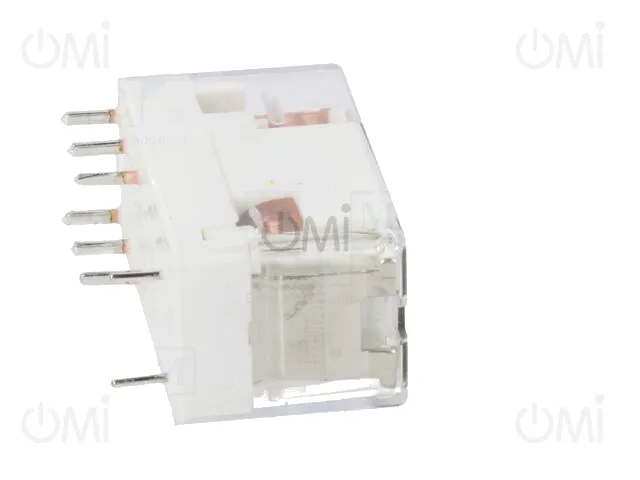

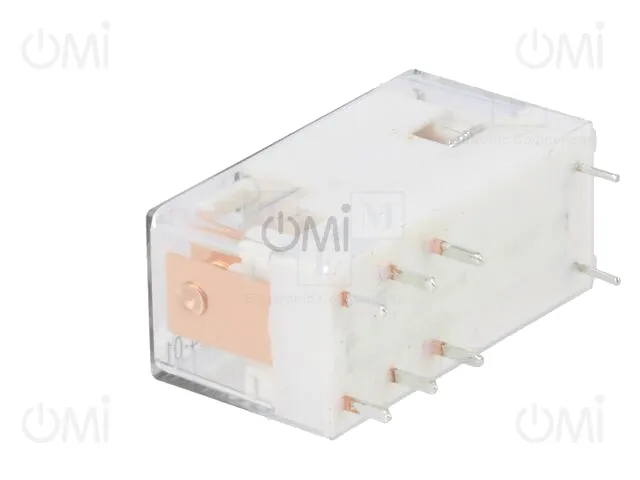

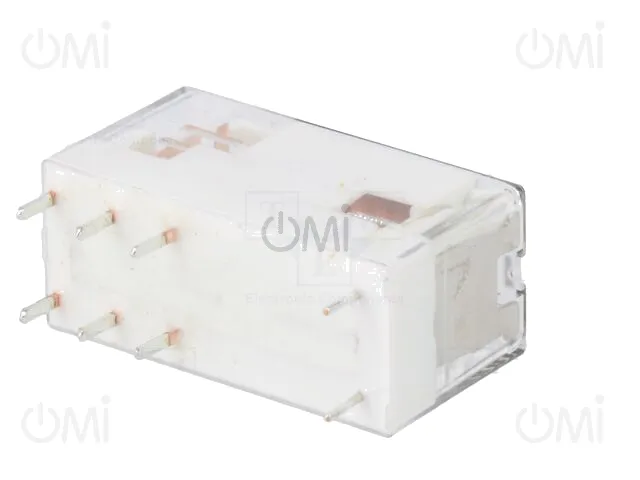

RM85-2011-25-5024-01 RELPOL

Details

RM85-2011-25-5024-01
RM85-2011-25-5024-01
RM85-2011-25-5024-01
RM85-2011-25-5024-01
RM85-2011-25-5024-01
RM85-2011-25-5024-01
RM85-2011-25-5024-01
RM85-2011-25-5024-01
RM85-2011-25-5024-01
  • RM85-2011-25-5024-01
  • RM85-2011-25-5024-01
  • RM85-2011-25-5024-01
  • RM85-2011-25-5024-01
  • RM85-2011-25-5024-01
  • RM85-2011-25-5024-01
  • RM85-2011-25-5024-01
  • RM85-2011-25-5024-01
  • RM85-2011-25-5024-01

Manufacturer product page RELPOL

Relay: electromagnetic; SPDT; Ucoil: 24VAC; Icontacts max: 16A

Manufacturer code: RM85-2011-25-5024-01

OMI code: 407898

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

23 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 5.79
4+ 4.73
8+ 4.49
500+ 4.24

Price details
RM85-2011-25-5024-01

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 5.79
4+ 4.73
8+ 4.49
500+ 4.24

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
RELPOL
Mounting
PCB
Operating temperature
-40...85°C
IP rating
IP67
Current rating
16A
Related items
GZM80, GZ80, GZT80, PW80, GD50, GZM80-BK
Contacts configuration
SPDT
Body dimensions
29x12.7x15.7mm
Contact material
AgNi
Switched voltage
max. 250V DC, max. 440V AC
Body colour
transparent
AC contacts rating @R
16A / 250V AC
DC contacts rating @R
16A / 24V DC
Terminal pitch
5mm
Type of relay
electromagnetic
Contact current max.
16A
Relay variant
miniature
Relay series
RM85
Coil resistance
400Ω
Rated coil voltage
24V AC
Coil voltage min.
19.2V AC
Operate time
8ms
OEM number
859814
Max surge current
30A
Contact resistance
100mΩ
Coil voltage max.
28.8V AC
Release time
3ms
Coil power consumption
0.75VA
Gross weight 11.95 g

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Miniature Electromagnetic Relays
