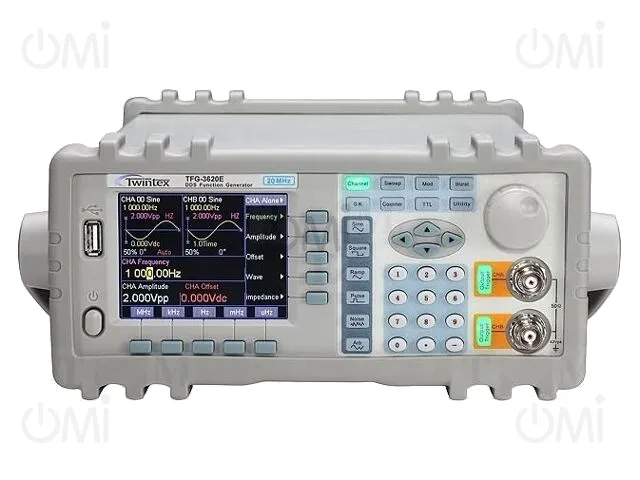

TFG-3620E TWINTEX

Details

TFG-3620E
  • TFG-3620E

Manufacturer product page TWINTEX

Generator: arbitrary, function; 20MHz; LCD TFT 3,5"; Ch: 2

Manufacturer code: TFG-3620E

OMI code: 410816

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

8 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 333.3

Price details
TFG-3620E

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 333.3

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
TWINTEX
Supply voltage
100...240V AC
Dimensions
415x295x195mm
Interface
RS232
Number of channels
2
Kind of display used
LCD TFT 3,5"
Additional functions
frequency meter
Standard equipment
mains cable, RS232 cable, BNC cable, test lead
Measuring instrument features
32 built-in waveforms
Protection
short circuit protection SCP, anti-overload OPP, anti-overvoltage OVP, against reverse polarity
Type of generator
arbitrary, function
Software
included
Sampling
100Msps
Vertical resolution
8bit
Memory record length
1024pts
Maximum waveform frequency
20MHz
Waveform frequency range
1µHz...20MHz (sinus waveform), 1µHz...5MHz (rectangular waveform), 1µHz...1MHz (other waveforms)
Output parameters
impedance: 50Ω
Sweep mode
period: 100m...900s
Kind of modulation
FM, FSK, ASK, PSK
Waveforms
impulse, arbitrary, rectangular, sinus, triangle, ramp
Gross weight 4417.20 g
Documentation in English #1 Documentation in English #2 Documentation in English #3

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Generators and Frequency Meters
