TS53YJ104MR10 VISHAY

Details

TS53YJ104MR10
  • TS53YJ104MR10

Manufacturer product page VISHAY

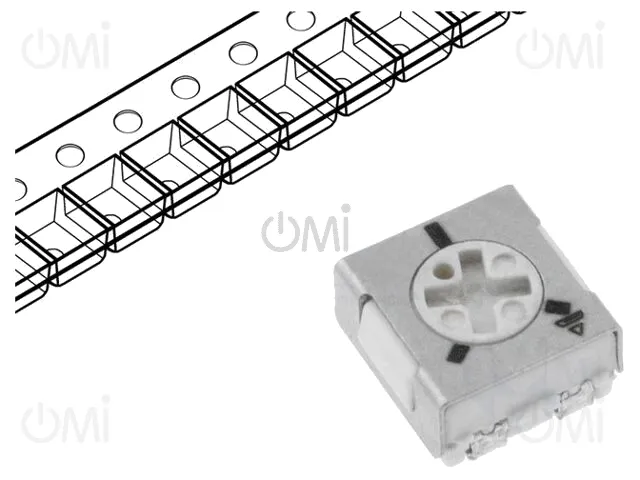

Potentiometer: mounting; single turn; 100kΩ; 250mW; SMD; ±20%

Manufacturer code: TS53YJ104MR10

OMI code: 413576

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

414 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 4.72
10+ 3.34
11+ 1.73
24+ 1.64

Price details
TS53YJ104MR10

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 4.72
10+ 3.34
11+ 1.73
24+ 1.64

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
VISHAY
Mounting
SMD
Operating temperature
-55...155°C
IP rating
IP67
Power
0.25W
Body dimensions
5x5x2.7mm
Tolerance
±20%
Resistance
100kΩ
Max. operating voltage
200V
Type of potentiometer
mounting
Characteristics
linear
Temperature coefficient
100ppm/°C
Torque
1,5Ncm
Mechanical rotation angle
270 ±10°
Electrical rotation angle
220 ±15°
Track material
cermet
Kind of potentiometer
single turn
Gross weight 0.21 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Single turn SMD trimmers
