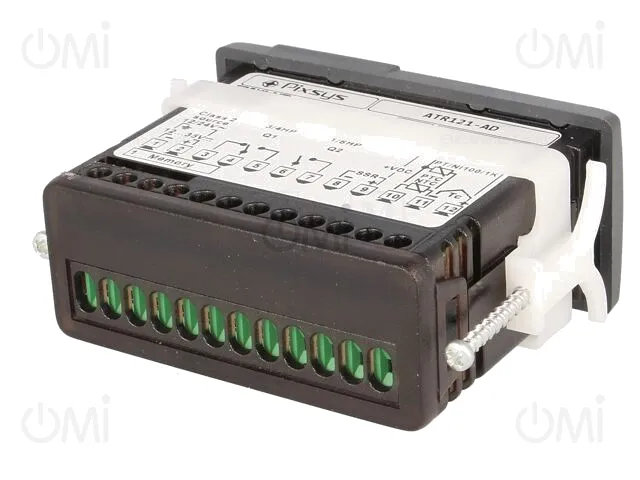

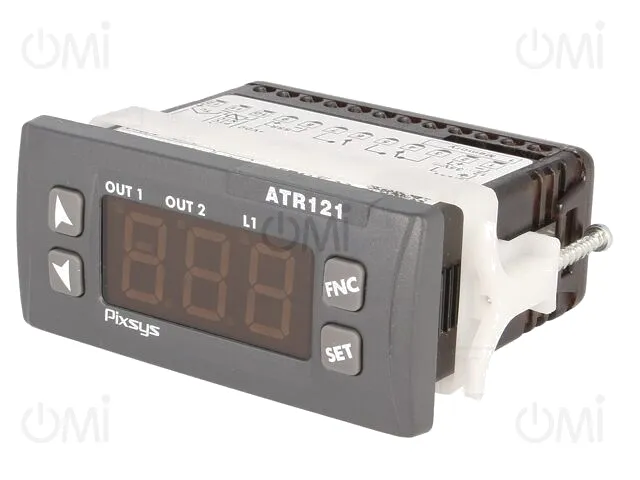

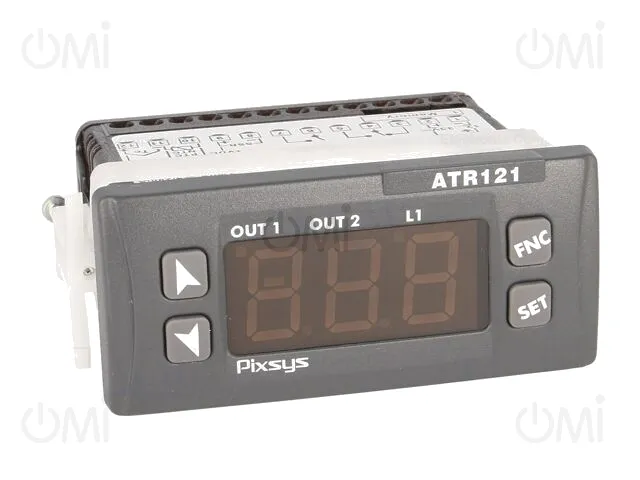

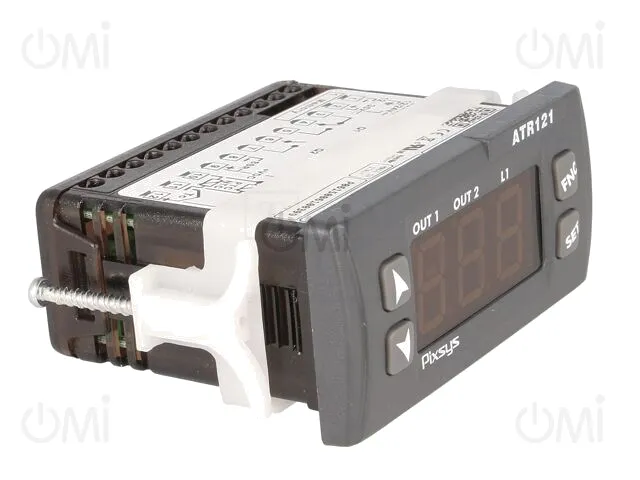

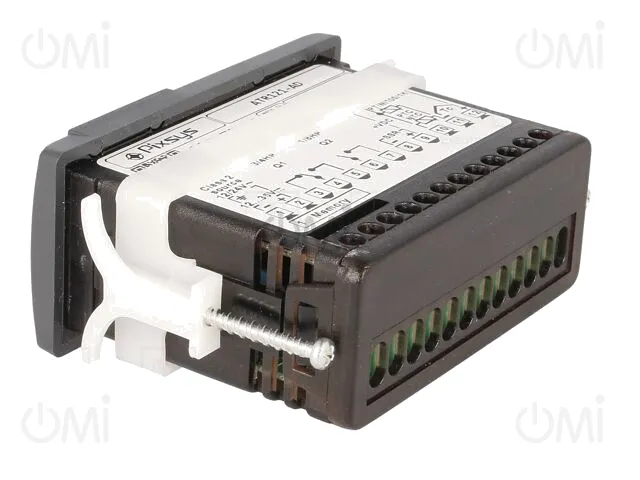

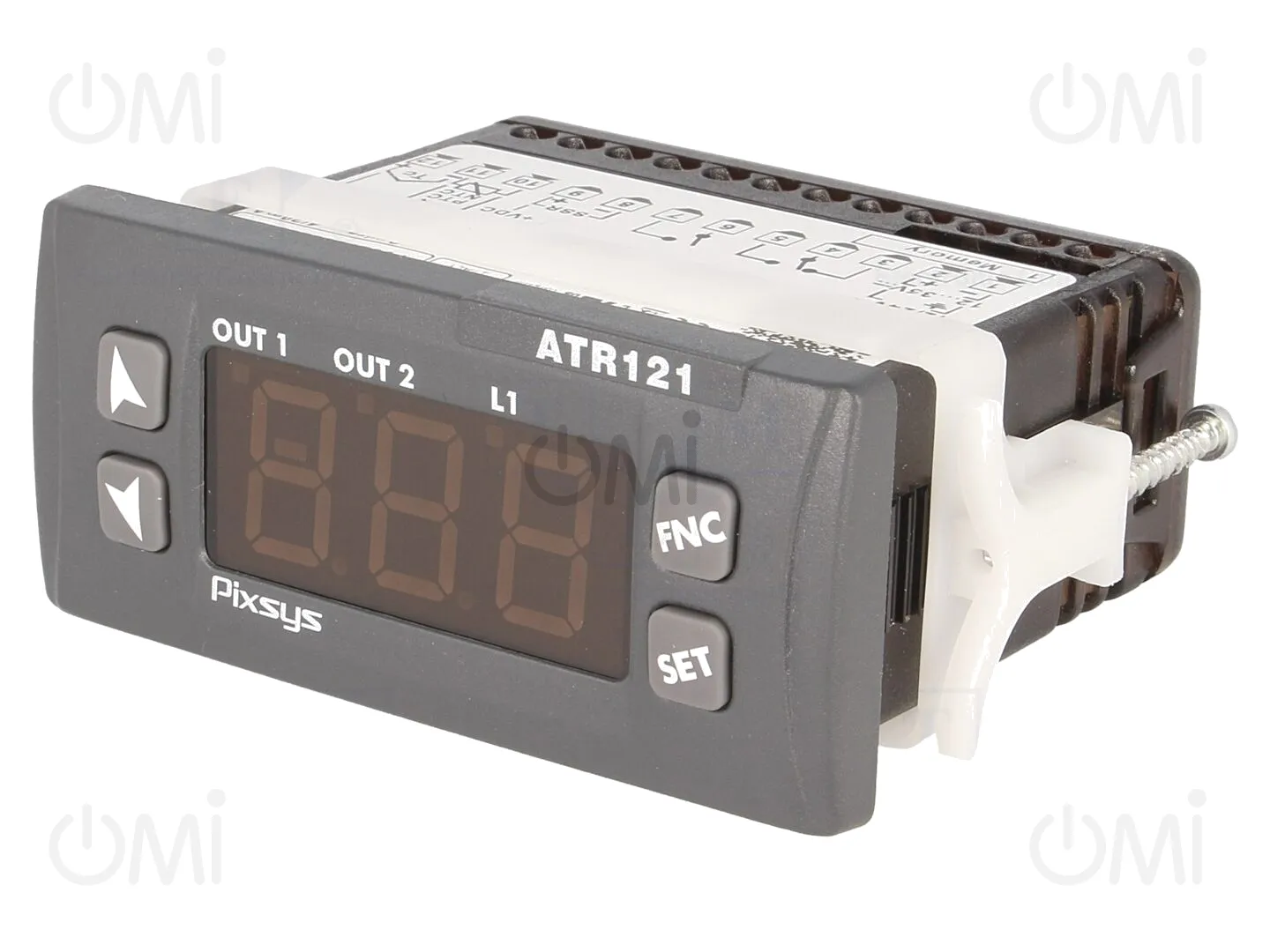

ATR121-AD PIXSYS

Details

ATR121-AD
ATR121-AD
ATR121-AD
ATR121-AD
ATR121-AD
ATR121-AD
ATR121-AD
ATR121-AD
ATR121-AD
  • ATR121-AD
  • ATR121-AD
  • ATR121-AD
  • ATR121-AD
  • ATR121-AD
  • ATR121-AD
  • ATR121-AD
  • ATR121-AD
  • ATR121-AD

Manufacturer product page PIXSYS

Module: regulator; temperature; SPDT; OUT 2: SPST-NO; OUT 3: SSR

Manufacturer code: ATR121-AD

OMI code: 414185

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

57 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 125.14
10+ 122.78

Price details
ATR121-AD

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 125.14
10+ 122.78

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
PIXSYS
Mounting
on panel
Operating temperature
0...40°C
IP rating
IP54
Manufacturer series
ATR121
Supply voltage
12...24V AC, 12...35V DC
Body dimensions
77x35x53mm
Mounting hole diameter
70.5x28.5mm
Type of module
regulator
Kind of display used
LED
Kind of output 1
SPDT
The programming method
foil keypad
Additional functions
one control input and one alarm input can be used simultaneously
Controlled parameter
temperature
Kind of temperature sensor
NTC, Pt100, thermocouple J, thermocouple K, thermocouple R, thermocouple S, Pt1000, PTC, Ni100, Pt500
Regulation for output 1
ON-OFF, PID, ON-OFF with hysteresis, AUTOTUNING
Display parameters
3 digit
Output 1 electrical parameters
250V AC / 8A
Controlled parameter range
-99.9...999
Kind of input 1
0...20mA, 4...20mA, universal, 0...10V DC, 0...6kΩ, 0...150kΩ
Input 1 properties
analogue voltage, current analog, RTD, thermocouple, potentiometric
Display height 1
14mm
Kind of output 2
SPST-NO
Kind of output 3
SSR
Output 2 electrical parameters
250V AC / 5A
Output 3 electrical parameters
8V DC / 20mA
Gross weight 219.03 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Temperature Regulators
