A11442MNZB C&K

Details

A11442MNZB
A11442MNZB
A11442MNZB
A11442MNZB
A11442MNZB
A11442MNZB
A11442MNZB
A11442MNZB
A11442MNZB
  • A11442MNZB
  • A11442MNZB
  • A11442MNZB
  • A11442MNZB
  • A11442MNZB
  • A11442MNZB
  • A11442MNZB
  • A11442MNZB
  • A11442MNZB

Manufacturer product page C&K

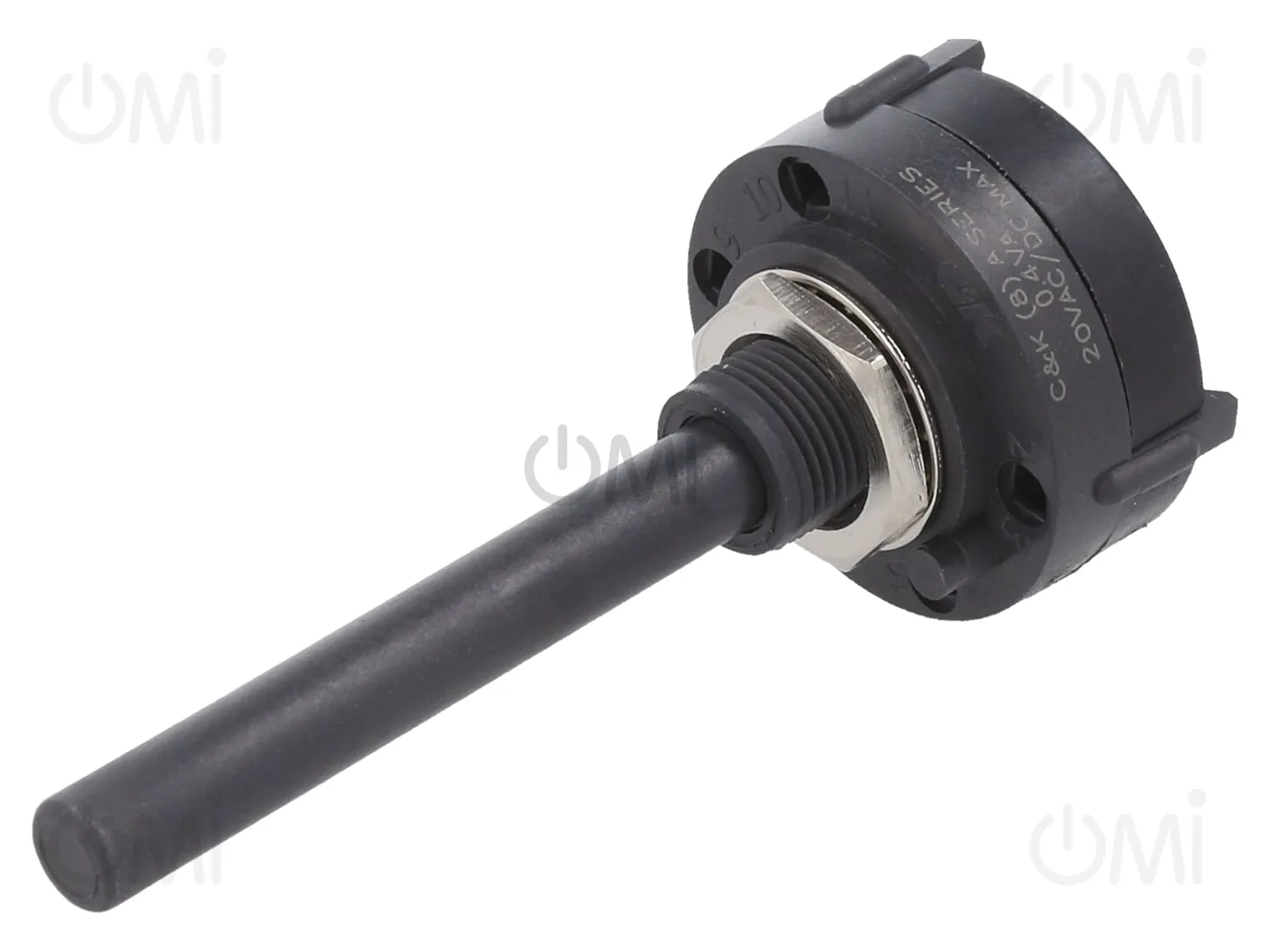

Switch: rotary; Pos: 2; SPDT; 2.5A/125VAC; 0.35A/125VDC; 90°; L: 42mm

Manufacturer code: A11442MNZB

OMI code: 415489

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

14 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 30.38
2+ 28.75
72+ 27.9
108+ 27.44

Price details
A11442MNZB

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 30.38
2+ 28.75
72+ 27.9
108+ 27.44

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
C&K
Type of switch
rotary
Operating temperature
-30...85°C
Leads
for soldering
Body dimensions
Ø26.19x12.83mm
Manufacturer series
A
Contacts configuration
SPDT
Contact plating
nickel plated, gold-plated
Electrical life
15000 cycles
Contact material
brass
AC contacts rating @R
2.5A / 125V AC
Number of positions
2
DC contacts rating @R
0.35A / 125V DC
Max. contact resistance:
20mΩ
Min. insulation resistance
10GΩ
Stable positions number
2
Poles number
1
Fastening thread
M10x0,75
Shaft diameter
6mm
Shaft length
42mm
Shaft surface
smooth
Indexed positions
90°
Gross weight 12.25 g
