RF3-1A-DC-2-GL SWITCH COMPONENTS

Details

RF3-1A-DC-2-GL
RF3-1A-DC-2-GL
RF3-1A-DC-2-GL
RF3-1A-DC-2-GL
RF3-1A-DC-2-GL
RF3-1A-DC-2-GL
RF3-1A-DC-2-GL
RF3-1A-DC-2-GL
RF3-1A-DC-2-GL
  • RF3-1A-DC-2-GL
  • RF3-1A-DC-2-GL
  • RF3-1A-DC-2-GL
  • RF3-1A-DC-2-GL
  • RF3-1A-DC-2-GL
  • RF3-1A-DC-2-GL
  • RF3-1A-DC-2-GL
  • RF3-1A-DC-2-GL
  • RF3-1A-DC-2-GL

Manufacturer product page SWITCH COMPONENTS

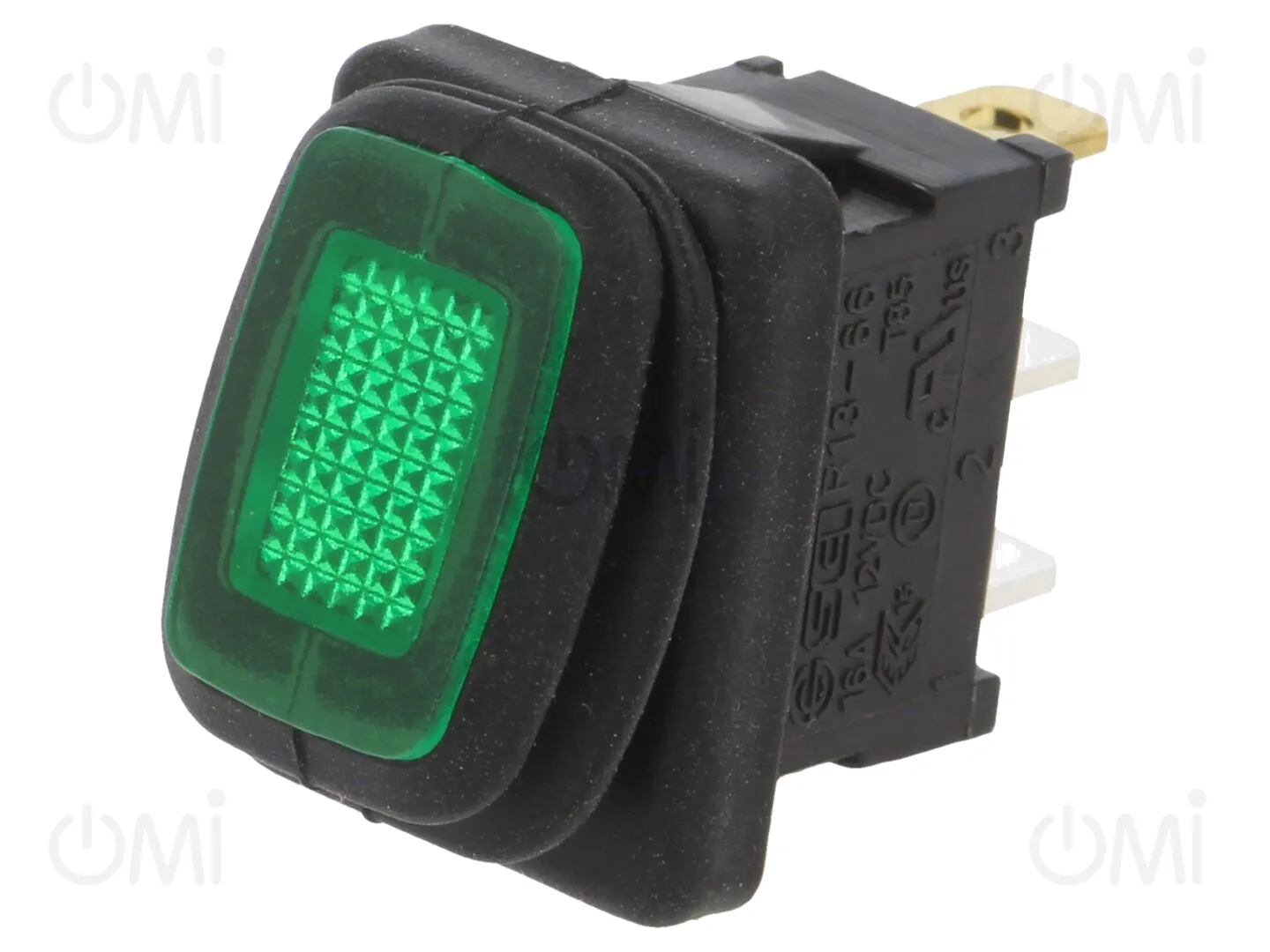

ROCKER; SPST; Pos: 2; ON-OFF; 16A/12VDC; green; IP65; LED; Body: black

Manufacturer code: RF3-1A-DC-2-GL

OMI code: 415665

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

11 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 7.04
4+ 5.47
8+ 5.18

Price details
RF3-1A-DC-2-GL

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 7.04
4+ 5.47
8+ 5.18

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
SWITCH COMPONENTS
Mounting
on panel
Type of switch
ROCKER
Operating temperature
-25...85°C
IP rating
IP65
Leads
connectors 4,8x0,8mm
Flammability rating
UL94V-2
Manufacturer series
RF
Contacts configuration
SPST
Contact plating
silver plated
Switching method
ON-OFF
Contact material
copper alloy
Body colour
black
Number of positions
2
DC contacts rating @R
16A / 12V DC
Illumination
LED
Max. contact resistance:
50mΩ
Backlight colour
green
Button shape
rectangular
Min. insulation resistance
0.1GΩ
Shape
rectangular
Stable positions number
2
Key button colour
green
Gross weight 5.88 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Rocker Switches
