HT-330K SMT ELECTRONIC TECHNOLOGY

Details

HT-330K
  • HT-330K

Manufacturer product page SMT ELECTRONIC TECHNOLOGY

Kit: for colaxial connector crimping; Crimp tool len: 220mm

Manufacturer code: HT-330K

OMI code: 416059

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

37 set

Qty.
[set] 		Price
[EUR/set]
1+ 63.24

Price details
HT-330K

Qty.
[set] 		Price
[EUR/set]
1+ 63.24

Quantity set (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
SMT ELECTRONIC TECHNOLOGY

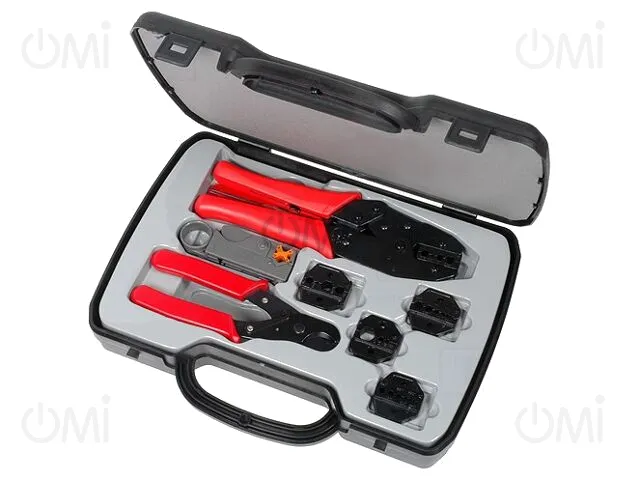

Kit contents
crimp tool, interchangeable dies (5 pcs.), coaxial cable stripper, pliers for cables up to 10.5 mm diameter, screwdriver with Phillips tip for changing the dies
Kind of package
case
Pliers length
165mm
Type of tools set
for colaxial connector crimping
Crimp tool features
the crimp correctness is ensured by special ratchet mechanism which enables to open the tool only after finishing the full crimping cycle, a special lever mechanism generates high pressure, handles fitted with plastic sleeves, a stripper design enables to mount the tool on the cable as a self- tightening clip, cutting of insulation layers occurs simultaneously after the tool rotates several times around the cable, pliers fitted with return spring, jaws opening lock and plastic sleeves on handles, pliers made of hardened carbon steel, two movable knives, adjustable with delivered Allen hex key, enable to set insulation cutting acc. to system: 4, 6, 8, 12mm
Tools features
236A die - crimping HF connectors on RG cables: 55, 58, 59, 62, 140, 141, 142, 210, 223, 174, 303, 400, fiber-optic cables, Belden 8279, 336C die - crimping HF connectors on RG cables: 6, 59, 62, 140, 210, Belden 8279, 55, 58, 141, 142, 223, 303, 400, fiber-optic cables;, 336G die - crimping HF connectors on RG cables: 59, 62 , 8X, 140, 210, Belden 8279, 55, 58, 141, 142, 174, 223, 303, 400, fiber-optic cables;, 336J die - crimping HF connectors on RG cables: 122, 174, 179, 180, 187, 188, 195, 178, 316, Belden 8279, fiber-optic cables, 336K - crimping HF connectors on RG cables: 8, 9, 11, 87A, 149, 165, 213, 216, 225, 393, 174, 179, 187, 188, 316, Belden 9913
Package dimensions
305x235x60mm
Crimp tool length
220mm
Stripper head marking
6 - RG6, 8 - RG58, 9 - RG59/62, D - special
Gross weight 1483.20 g

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.
