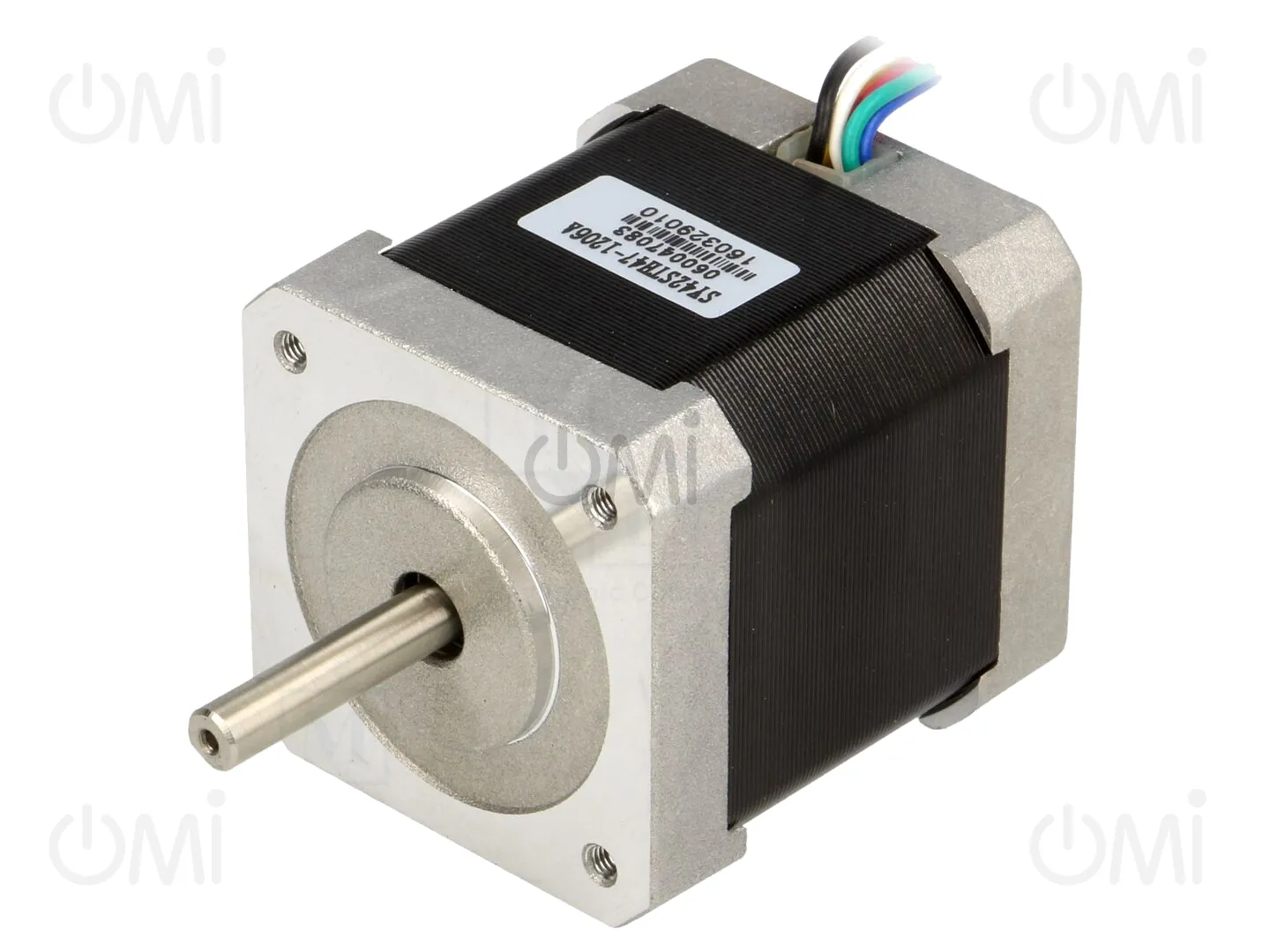

STEPPER MOTOR: BIPOLAR 42×48MM 4V POLOLU

Details

STEPPER MOTOR: BIPOLAR 42×48MM 4V
  • STEPPER MOTOR: BIPOLAR 42×48MM 4V

Manufacturer product page POLOLU

Motor: stepper; 4VDC; Shaft: D spring; max.313mNm; 1.2A

Manufacturer code: STEPPER MOTOR: BIPOLAR 42×48MM 4V

OMI code: 422627

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

5 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 51.2
3+ 49.93

Price details
STEPPER MOTOR: BIPOLAR 42×48MM 4V

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 51.2
3+ 49.93

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
POLOLU
Max. operating current
1.2A
Body dimensions
42.3x42.3x38mm
Supply voltage
4V DC
Size
Nema 17
Torque
max. 313mNm
Type of motor
stepper
Motors features
step 1,8°
Information
product is not a working device, but only component
Shaft diameter
5mm
Shaft surface
D spring
Double sided shaft
no
Gross weight 365.00 g

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.
