UTD1025CL UNI-T

Details

UTD1025CL
UTD1025CL
UTD1025CL
UTD1025CL
UTD1025CL
UTD1025CL
UTD1025CL
UTD1025CL
UTD1025CL
  • UTD1025CL
  • UTD1025CL
  • UTD1025CL
  • UTD1025CL
  • UTD1025CL
  • UTD1025CL
  • UTD1025CL
  • UTD1025CL
  • UTD1025CL

Manufacturer product page UNI-T

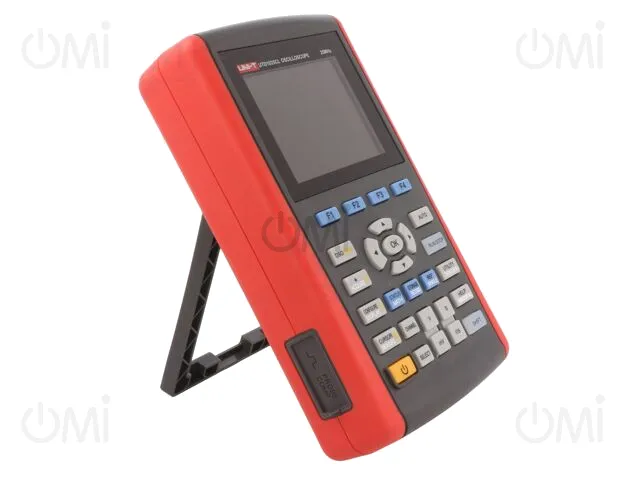

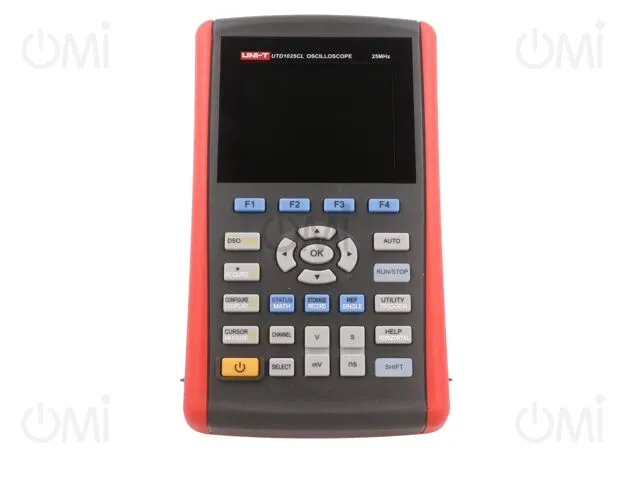

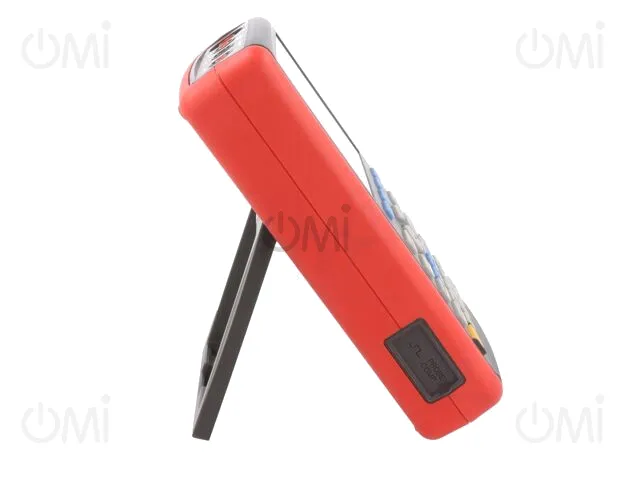

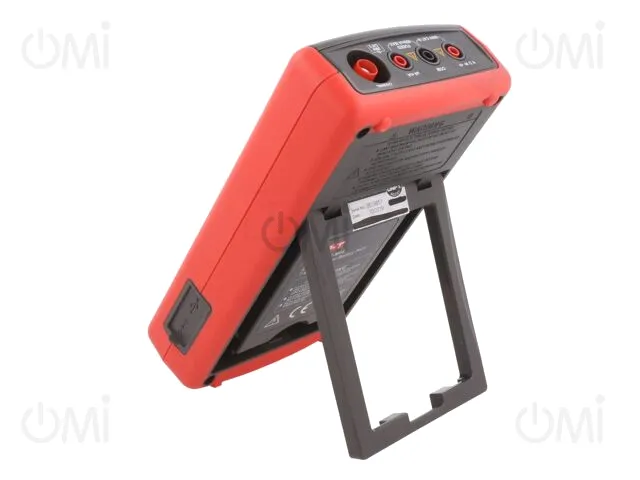

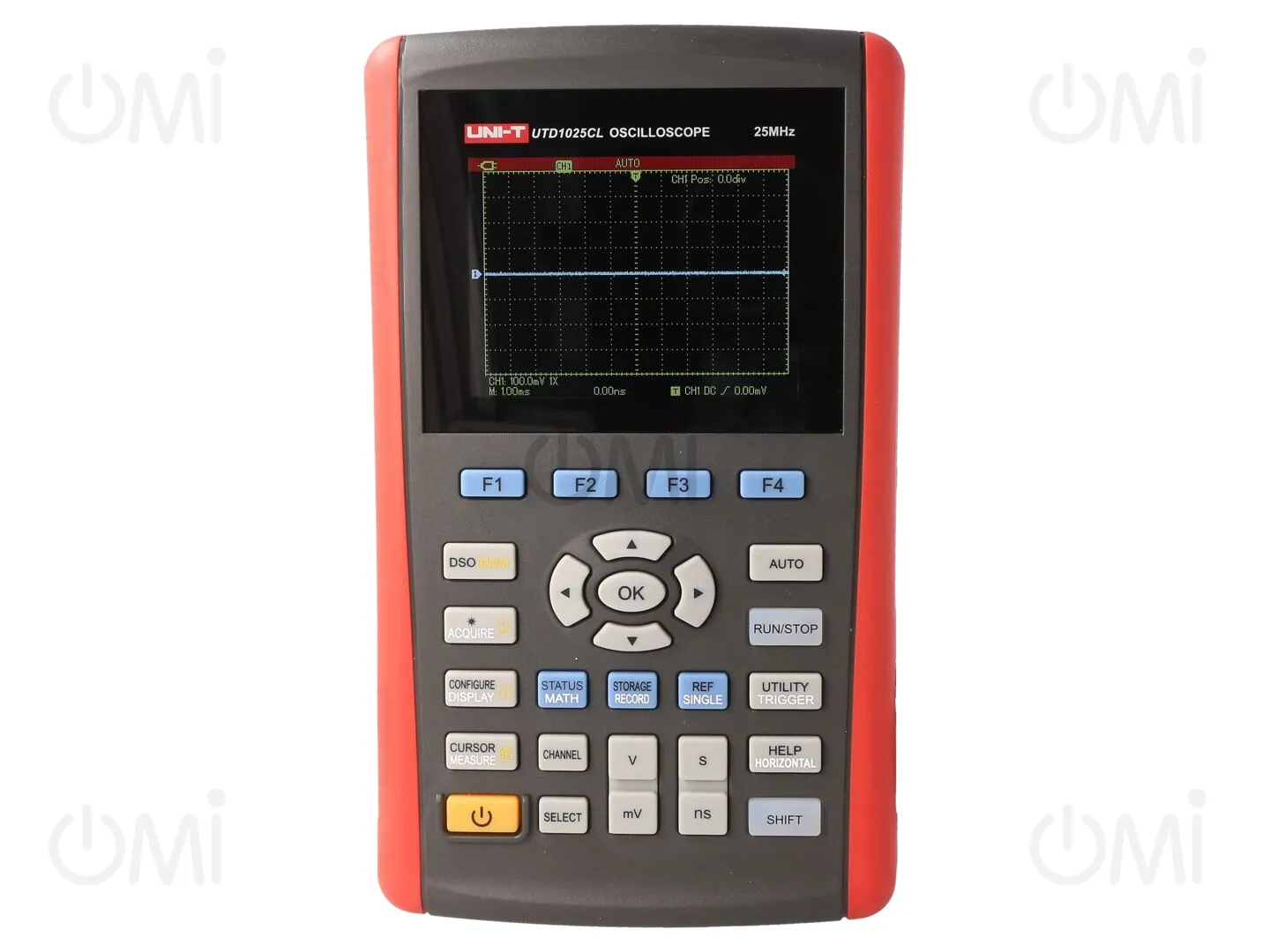

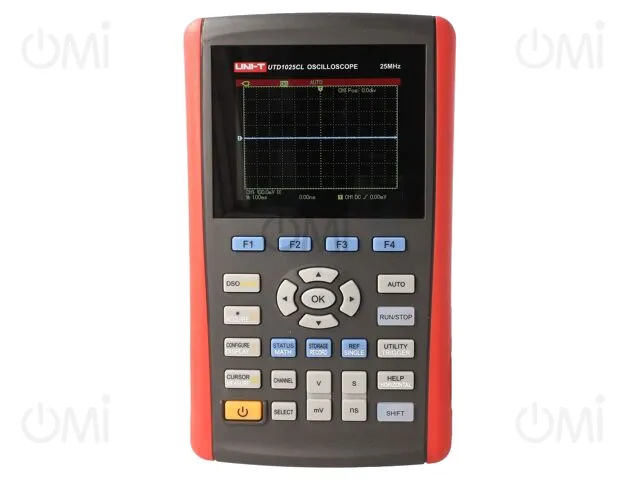

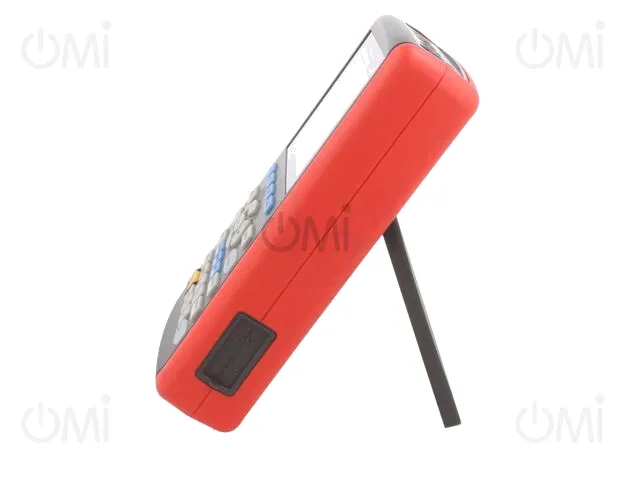

Handheld oscilloscope; 25MHz; LCD TFT 3,5"; Ch: 1; 250Msps; 12kpts

Manufacturer code: UTD1025CL

OMI code: 426855

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

7 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 306.6
4+ 306.22

Price details
UTD1025CL

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 306.6
4+ 306.22

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
UNI-T
Dimensions
199x118x49mm
Interface
USB mini
Number of channels
1
Kind of display used
LCD TFT 3,5"
Power supply
mains power supply, rechargeable battery Li-Ion 7,4V 3600mAh x1
Standard equipment
USB cable, test leads, mains cable, CD with documentation, test probe x1, power supply, measuring probe
Measuring instrument features
automatic measurement of many parameters
Display parameters
(3999)
Display resolution
320x240
Measurement
AC current, DC current, DC voltage, resistance, AC voltage, capacitance, continuity
Battery/ rechargeable battery
rechargeable battery Li-Ion 7,4V 3600mAh x1
AC current measuring range
4mA, 40mA, 4A, 0.4mA
Test
diodes
Sampling
250Msps
Band
25MHz
Resistance measuring range
40kΩ, 4MΩ, 4kΩ, 400kΩ, 40MΩ, 0.4kΩ
DC current measuring range
4mA, 40mA, 0.4mA, 4A
DC voltage measuring range
400V, 4V, 40V, 400mV
AC voltage measuring range
400V, 4V, 40V, 400mV
DC voltage measuring accuracy
±(1.2% + 5 digit)
Capacitance measuring range
100µF, 51.2nF, 512nF, 5.12µF, 51.2µF
AC voltage measuring accuracy
±(1.2% + 5 digit)
Resistance measuring accuracy
±(1.2%+5 digit), ±(1.5%+5 digit)@(40MΩ)
Capacitance measuring accuracy
±(3%+ 5 digit)
Trigger
rising-edge, falling-edge, impulse width, video signal, slope
Type of oscilloscope
handheld oscilloscope
Max. input voltage
400V
Rise time
≤14ns
Input sensitivity
5mV/div...20V/div
Time base
10n...50s/div
Memory record length
12kpts
Gross weight 2006.50 g
Documentation in English #1 Documentation in English #2

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Portable Oscilloscopes, Scopemeters
