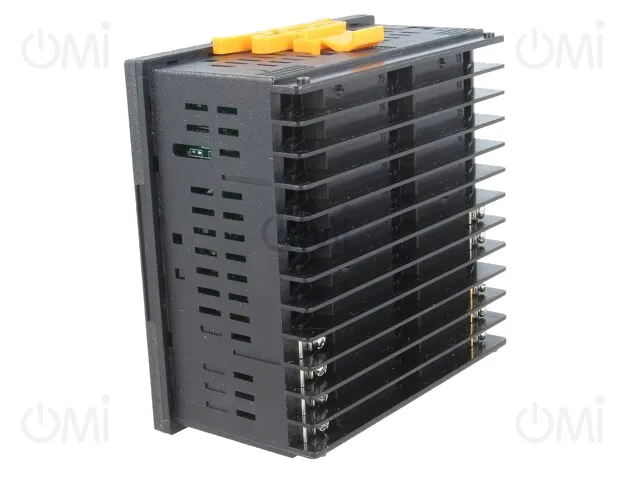

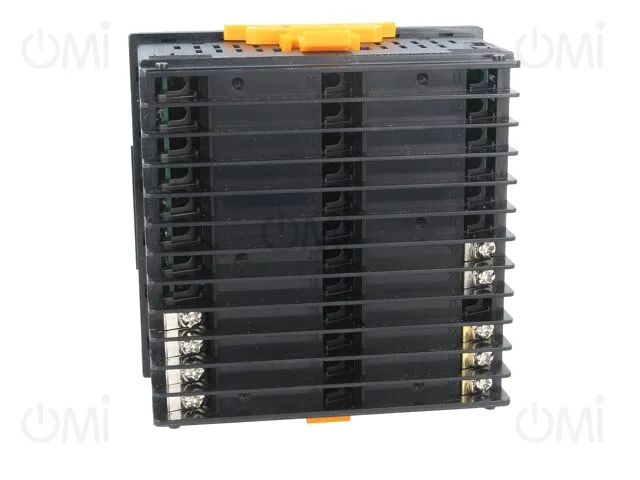

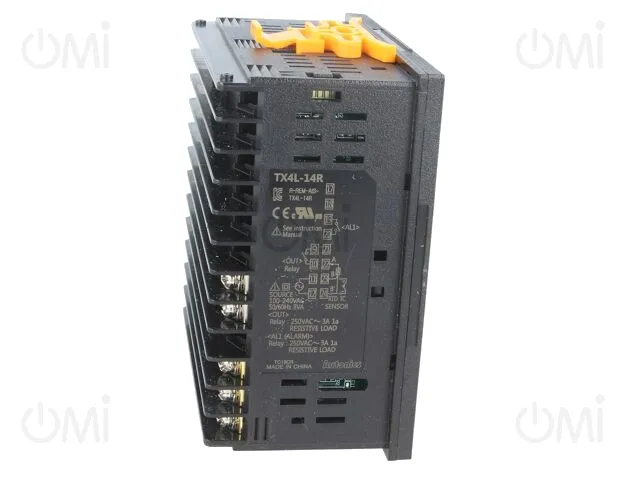

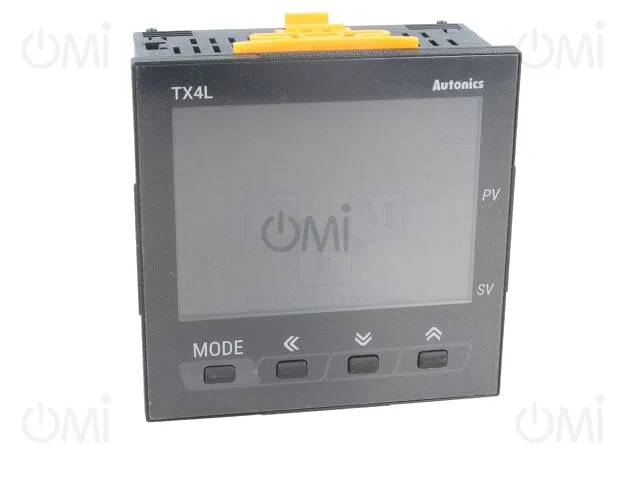

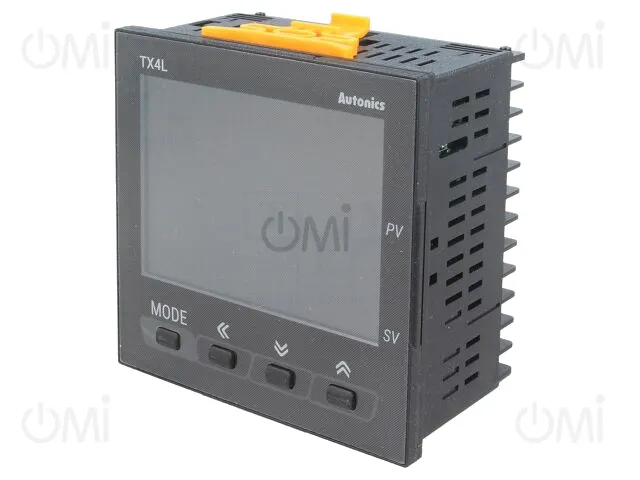

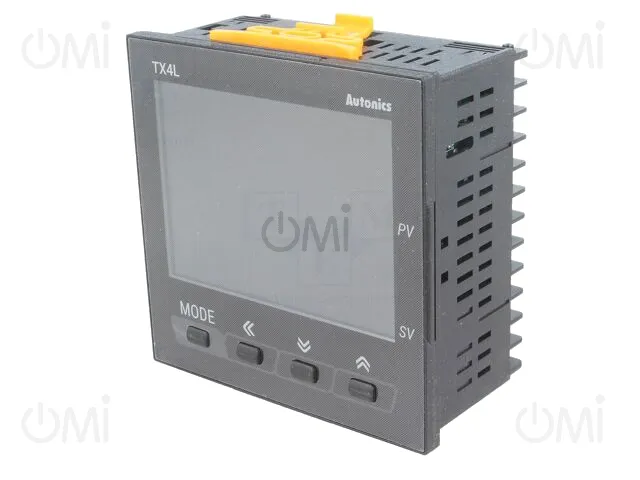

TX4L-14R AUTONICS

Details

TX4L-14R
TX4L-14R
TX4L-14R
TX4L-14R
TX4L-14R
TX4L-14R
TX4L-14R
TX4L-14R
TX4L-14R
  • TX4L-14R
  • TX4L-14R
  • TX4L-14R
  • TX4L-14R
  • TX4L-14R
  • TX4L-14R
  • TX4L-14R
  • TX4L-14R
  • TX4L-14R

Manufacturer product page AUTONICS

Module: regulator; temperature; SPST-NO; OUT 2: alarm; on panel

Manufacturer code: TX4L-14R

OMI code: 432620

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

6 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 59.18
10+ 57.6

Price details
TX4L-14R

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 59.18
10+ 57.6

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
AUTONICS
Mounting
on panel
Operating temperature
-10...50°C
IP rating
IP50
Manufacturer series
TX4L
Supply voltage
100...240V AC
Body dimensions
96x96x51mm
Mounting hole diameter
92x92mm
Type of module
regulator
Kind of display used
LCD
Kind of output 1
SPST-NO
The programming method
foil keypad
Controlled parameter
temperature
Kind of temperature sensor
Cu50, Pt100, thermocouple J, thermocouple K, thermocouple L, thermocouple R, thermocouple S, thermocouple T
Regulation for output 1
ON-OFF, P, PD, PI, PID
Output 1 electrical parameters
250V AC / 3A
Controlled parameter range
-1999...9999
Input 1 properties
RTD, thermocouple
Display height 1
26.8mm
Display 2 height
17.8mm
Kind of output 2
alarm
Output 2 electrical parameters
250V AC / 3A
Gross weight 270.00 g
Documentation in English #1 Documentation in English #2 Documentation in English #3

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Temperature Regulators
