HR25A-9P-20P HIROSE

Details

HR25A-9P-20P
  • HR25A-9P-20P

Manufacturer product page HIROSE

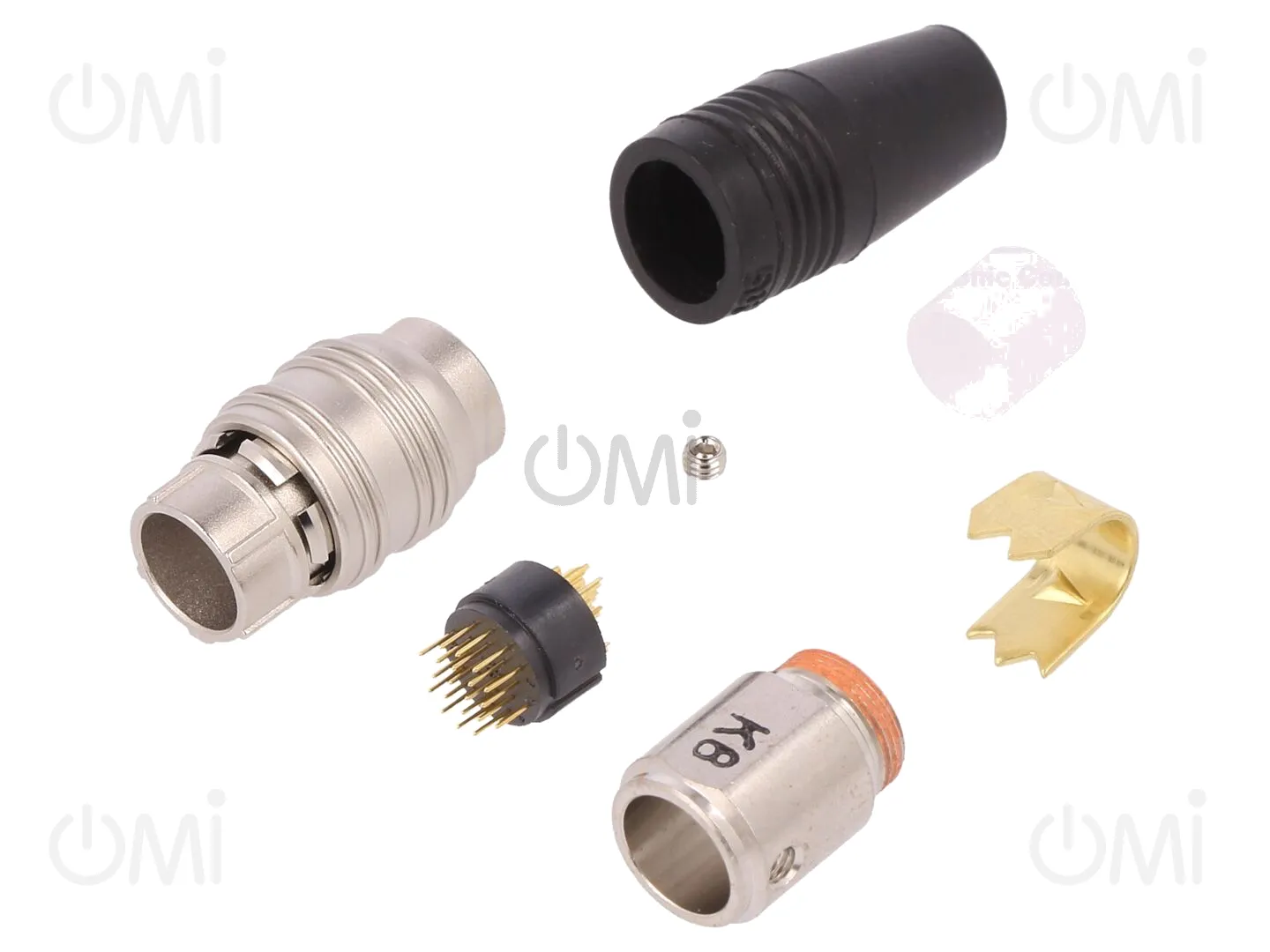

Connector: circular; plug; HR25; male; PIN: 20; push-pull; 1A; 28AWG

Manufacturer code: HR25A-9P-20P

OMI code: 437452

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

183 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 42.04

Price details
HR25A-9P-20P

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 42.04

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
HIROSE
Current rating
1A
Number of pins
20
Connector series
HR25
Contact plating
gold-plated
Kind of connector
male
Connector
plug
Max. wire diameter
7mm
Locking system
push-pull
Electrical mounting
soldering
Mechanical mounting
for cable
Wire size
28AWG
Type of connector
circular
Spatial orientation
straight
Rated voltage
30V AC, 42V DC
Gross weight 14.51 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Industrial connectors - others
