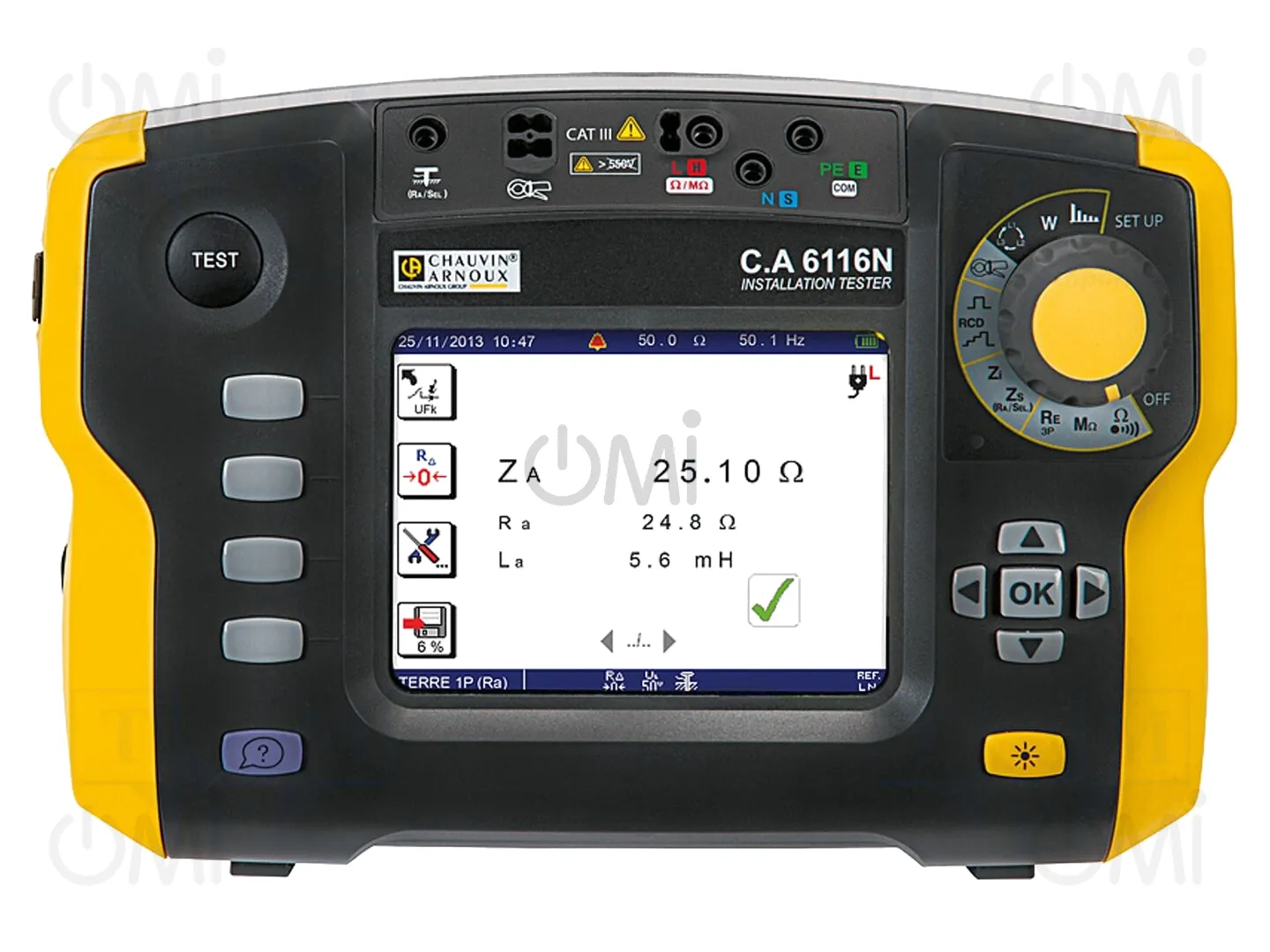

C.A 6116N CHAUVIN ARNOUX

Details

C.A 6116N
  • C.A 6116N

Manufacturer product page CHAUVIN ARNOUX

Meter: appliance meter; colour,LCD 5,7"; 320x240; USB; IP53

Manufacturer code: C.A 6116N

OMI code: 437998

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 2012.54

Price details
C.A 6116N

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 2012.54

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
CHAUVIN ARNOUX
IP rating
IP53
Conform to the norm
CAT III 600V, CAT IV 300V, EN 61010, IEC 61326-1
Body dimensions
280x190x128mm
Interface
USB
Kind of display used
colour, LCD 5,7"
Illumination
yes
Power supply
rechargeable battery Li-Ion 10,8V x1
Standard equipment
USB cable, test leads, carrying case, test probes, hand strap, mains battery charger, 3 crocodile clips, screen protector preventing scratching (set), neckstrap, remote probe
Measuring instrument features
programmable alarm thresholds, test leads resistance compensation, long operating time up to 30 hours
Type of meter
appliance meter
Display resolution
320x240
Measurement
DC voltage, AC voltage, active power, frequency, harmonics, continuity, AC current (with current clamps), earthing resistance, insulation resistance, phase sequence, RCD tripping time, leakage current, impedance, RCD tripping current, short circuit loop impedance, votlage drop
Battery/ rechargeable battery
rechargeable battery Li-Ion 10,8V x1
Optional equipment
CA-C177A, CA-MN77
Continuity test
acoustic indication, optical indication
Weight with battery
2.2kg
Software
included
RCD test
general purpose, AC, A and F-type RCDs
Test voltage
50V, 100V, 250V, 500V, 1kV
Insulation resistance measuring ranges
0.01MΩ...2GΩ
Earthing resistance measuring range
500mΩ...40Ω, 15kΩ, 40kΩ
Earthing resistance measuring accuracy
±(2% + 2 digit)
Loop impedance measurement
100...500mΩ, 4Ω, 40Ω, 400Ω
Loop impedance measuring accuracy
±(5% + 2 digit)
Gross weight 5604.90 g
Documentation in English #1 Documentation in English #2 Documentation in English #3 Documentation in English #4 Documentation in English #5

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Multimeters for Electrical Installations
