PLA160S IXYS

Details

PLA160S
  • PLA160S

Manufacturer product page IXYS

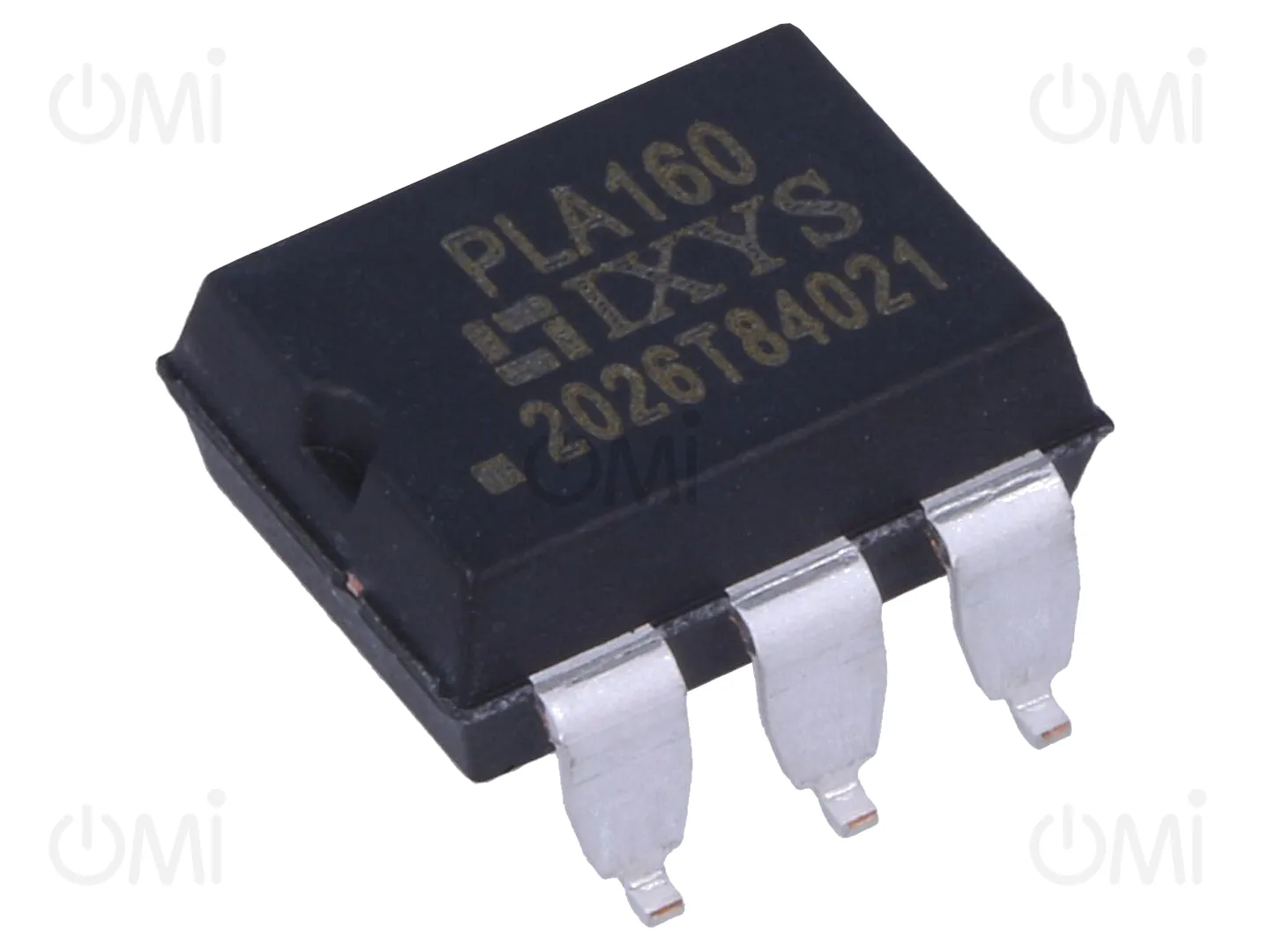

Relay: solid state; SPST-NO; Icntrl max: 50mA; 50mA; max.300VAC

Manufacturer code: PLA160S

OMI code: 438663

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 4.55
4+ 3.84
10+ 3.63
1000+ 3.56

Price details
PLA160S

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 4.55
4+ 3.84
10+ 3.63
1000+ 3.56

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
IXYS
Mounting
SMT
Operating temperature
-40...85°C
Max. operating current
50mA
Manufacturer series
OptoMOS
Case
DIP6
Contacts configuration
SPST-NO
Body dimensions
8.38x6.35x3.3mm
Switched voltage
max. 300V DC, max. 300V AC
Turn-on time
50µs
Insulation voltage
3.75kV
Type of relay
solid state
On-state resistance
100Ω
Relay variant
1-phase, current source
Turn-off time
50µs
Control current max.
50mA
Gross weight 0.38 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: One Phase Solid State Relays
