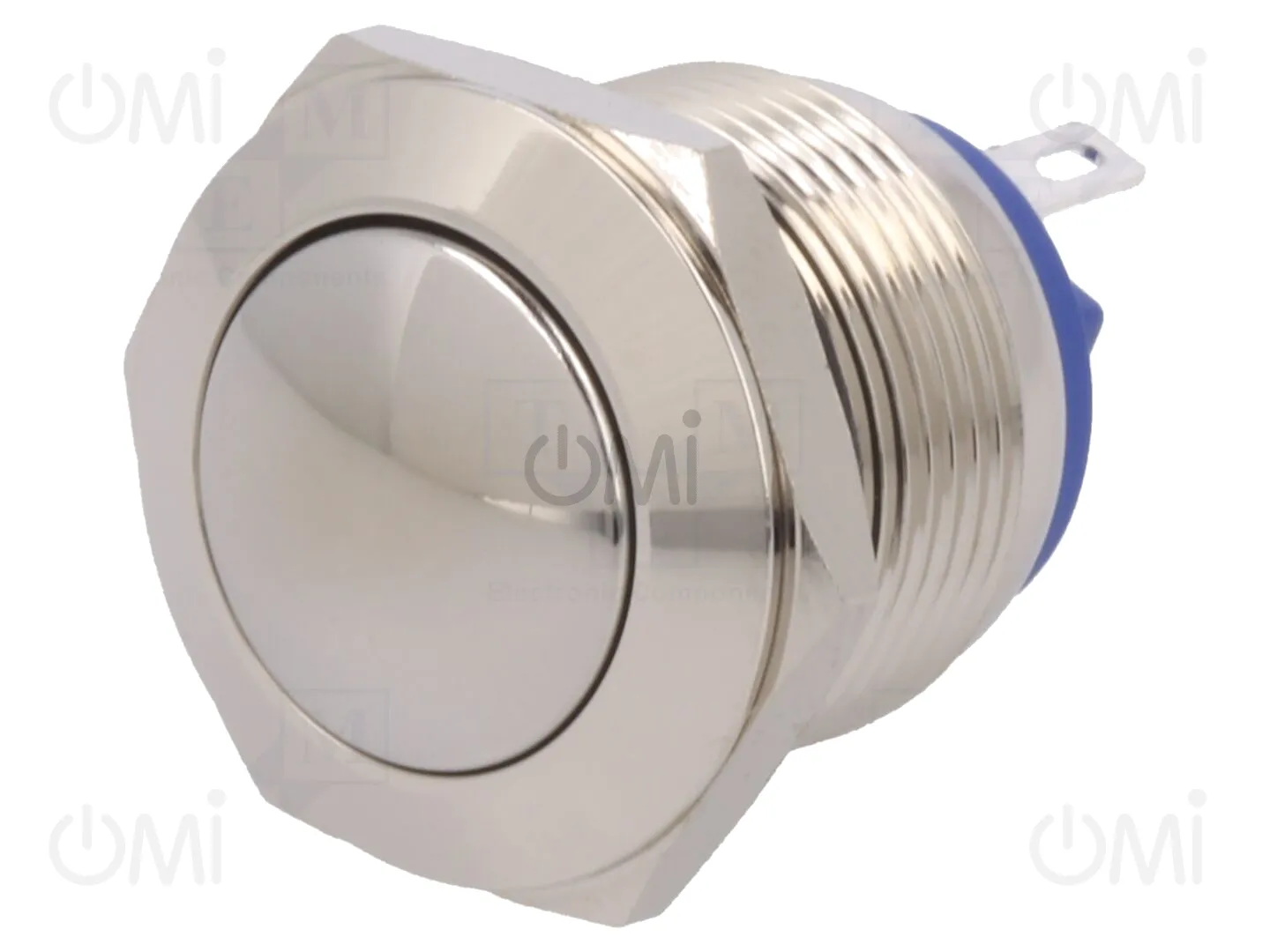

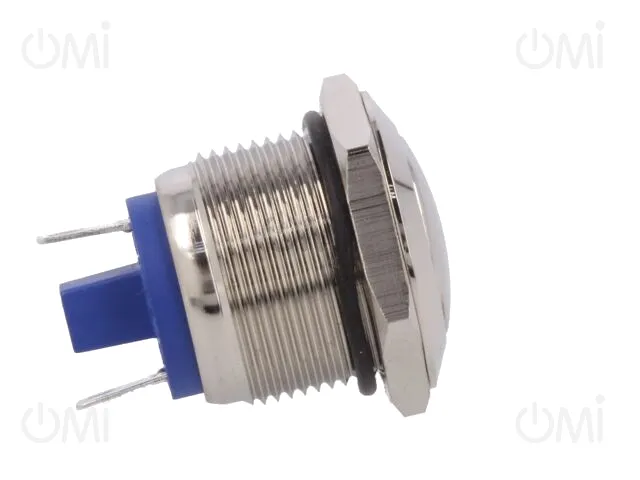

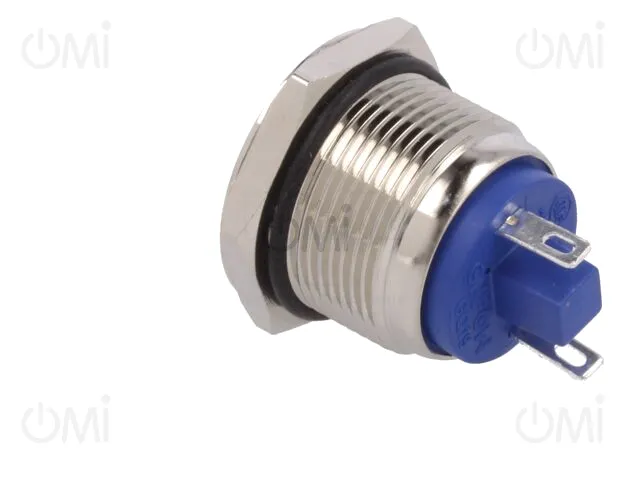

GQ19B-10/J/N ONPOW

Details

GQ19B-10/J/N
GQ19B-10/J/N
GQ19B-10/J/N
GQ19B-10/J/N
GQ19B-10/J/N
GQ19B-10/J/N
GQ19B-10/J/N
GQ19B-10/J/N
GQ19B-10/J/N
  • GQ19B-10/J/N
  • GQ19B-10/J/N
  • GQ19B-10/J/N
  • GQ19B-10/J/N
  • GQ19B-10/J/N
  • GQ19B-10/J/N
  • GQ19B-10/J/N
  • GQ19B-10/J/N
  • GQ19B-10/J/N

Manufacturer product page ONPOW

Switch: vandal resistant; Pos: 2; SPST-NO; 2A/36VDC; IP65; OFF-(ON)

Manufacturer code: GQ19B-10/J/N

OMI code: 439196

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

716 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 4.53
5+ 4.29
7+ 2.67
16+ 2.52

Price details
GQ19B-10/J/N

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 4.53
5+ 4.29
7+ 2.67
16+ 2.52

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
ONPOW
Type of switch
vandal resistant
IP rating
IP65
Leads
for soldering
Contacts configuration
SPST-NO
Body material
nickel plated brass
Switching method
OFF-(ON)
Mechanical durability
1000000 cycles
Electrical life
200000 cycles
Body colour
silver
Mounting hole diameter
Ø19mm
Number of positions
2
DC contacts rating @R
2A / 36V DC
Illumination
none
Button shape
convex
Stable positions number
1
Operating Force
4N
Ring shape
rounded
Gross weight 17.92 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Push Button Switches
