435-6.U PCE

Details

435-6.U
  • 435-6.U

Manufacturer product page PCE

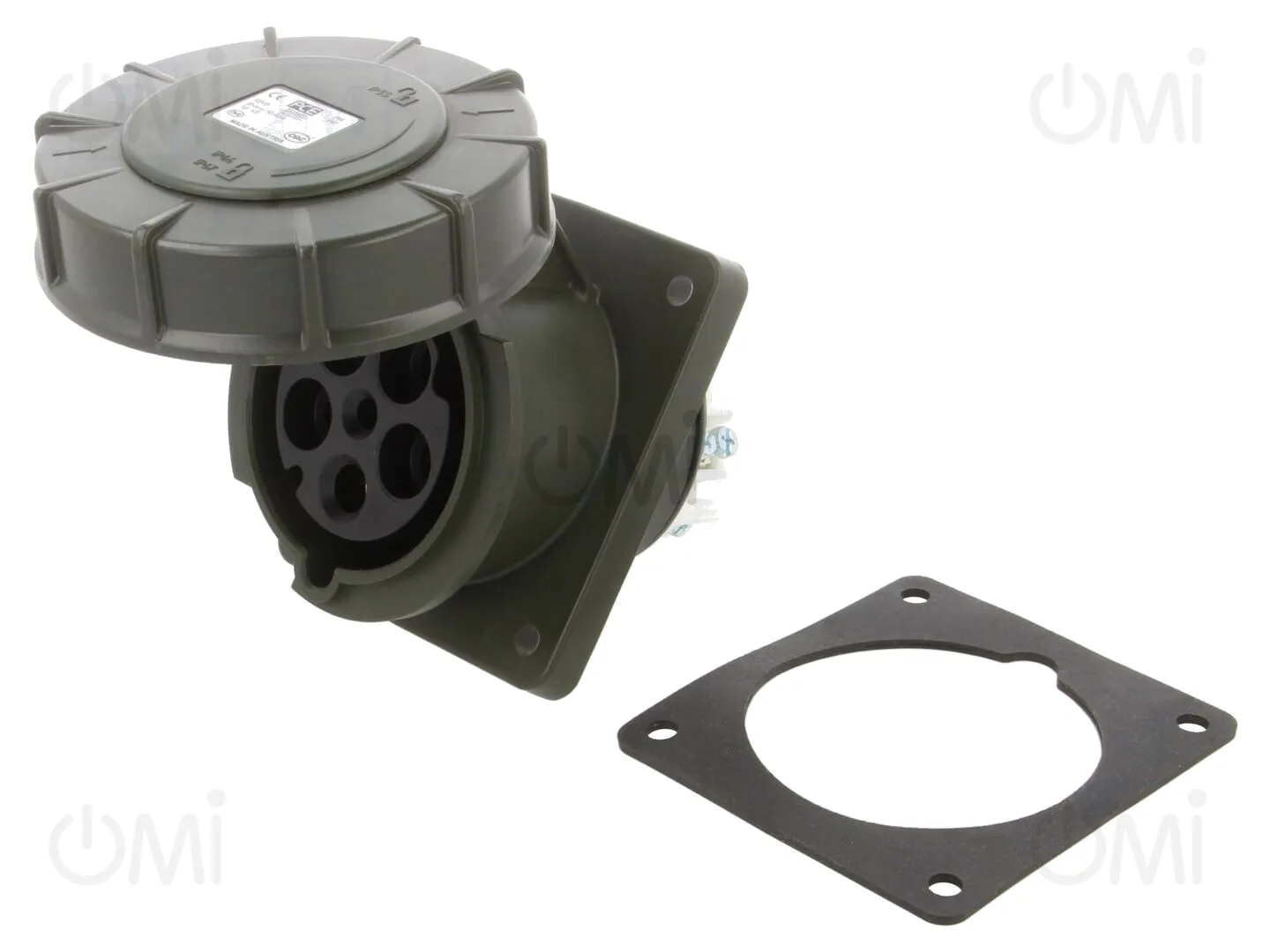

Connector: AC supply 3-phase; socket; female; 63A; 400VAC; IP67

Manufacturer code: 435-6.U

OMI code: 4519

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

1 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 72.7

Price details
435-6.U

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 72.7

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
PCE
IP rating
IP67
Current rating
63A
Number of pins
5
Connector pinout layout
3P+N+PE
Colour
green
Contact plating
none
Kind of connector
female
Contact material
brass
Connector
socket
Wire cross-section
6...16mm<sup>2</sup>
Polarisation
6H
Electrical mounting
screw terminal
Mechanical mounting
flange (4 holes), for panel mounting
Type of connector
AC supply 3-phase
Spatial orientation
angled
Standard
IEC 60309
Rated voltage
400V AC
Gross weight 587.20 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Industrial IEC 60309 connectors
