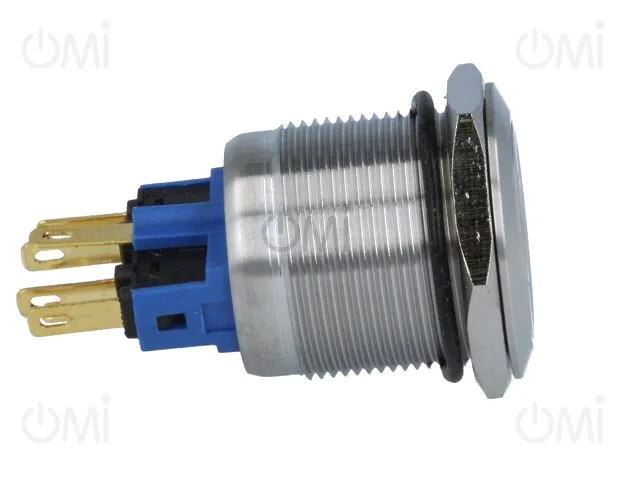

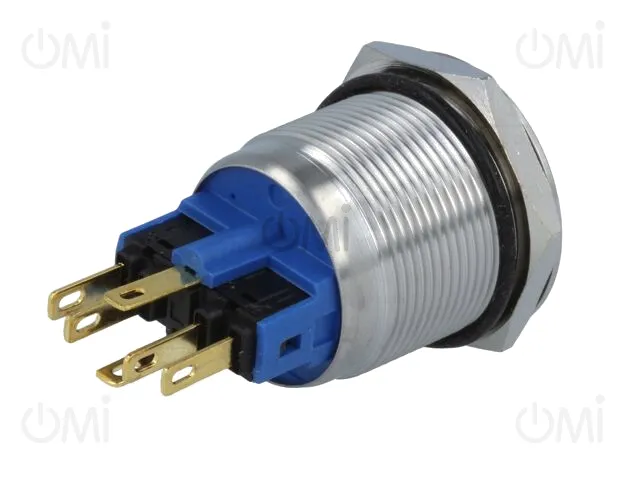

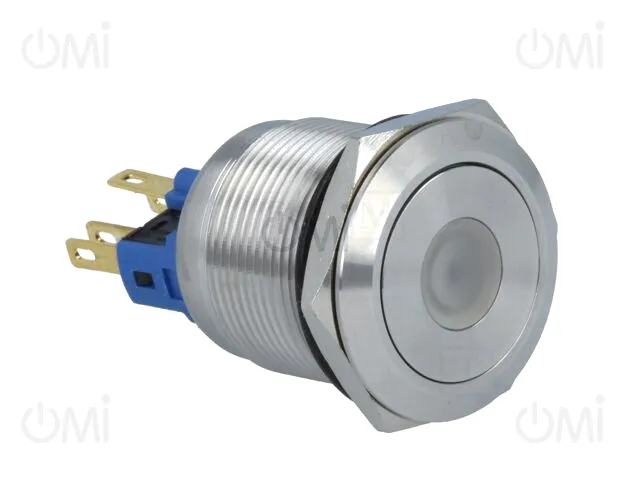

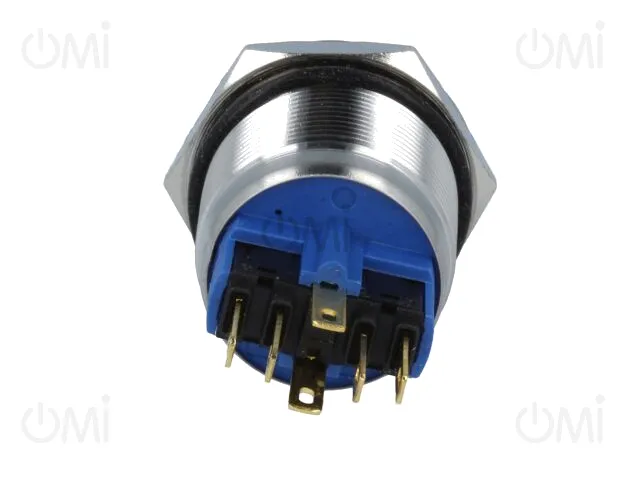

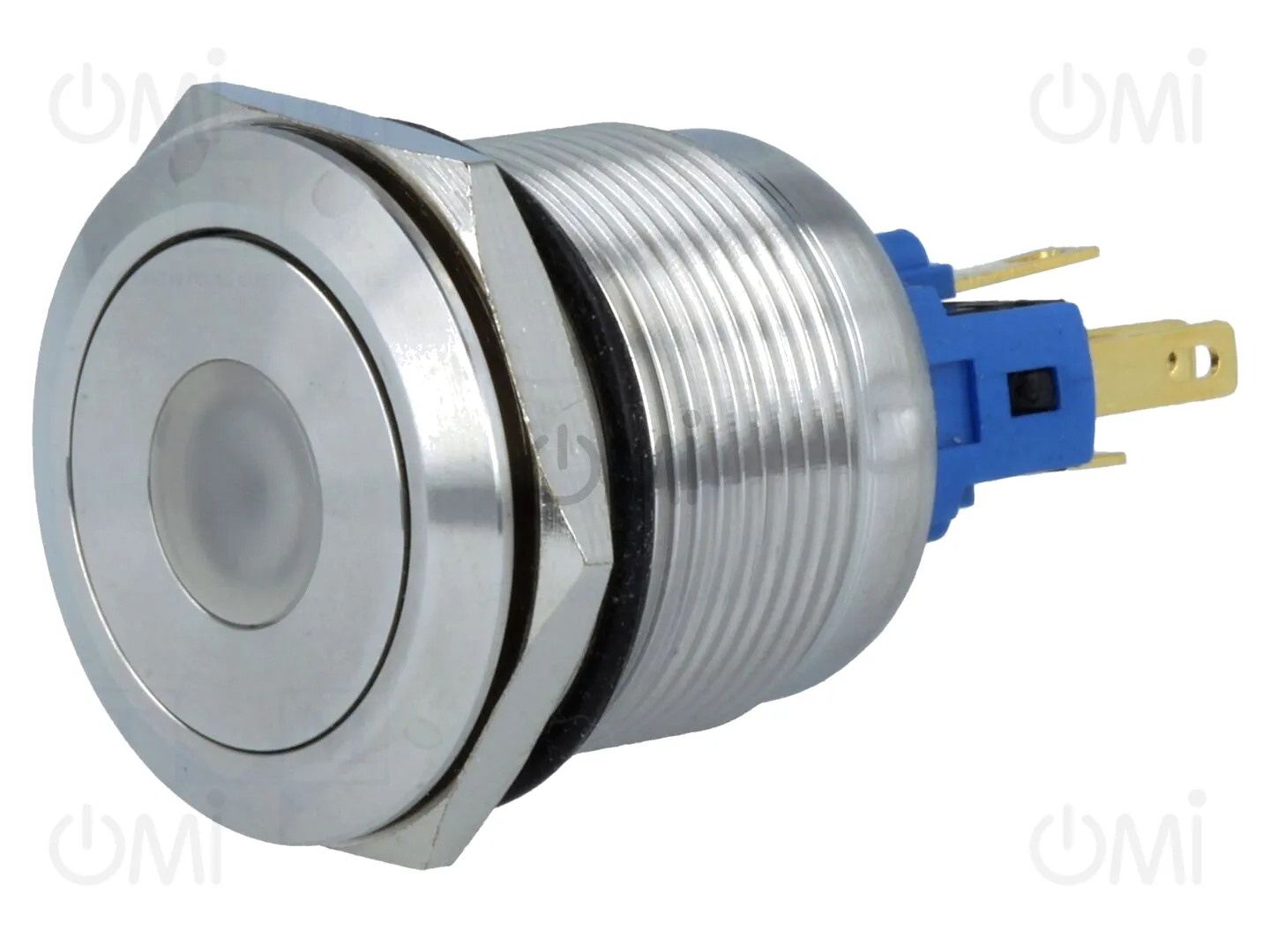

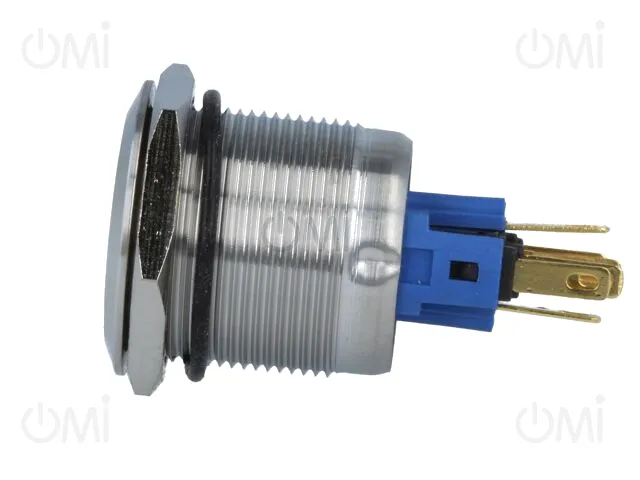

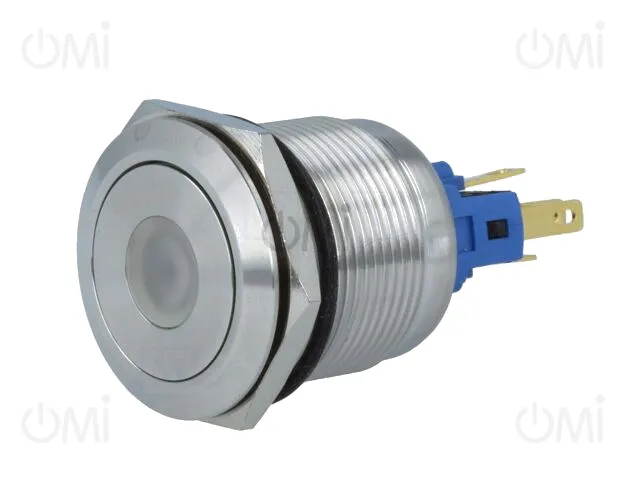

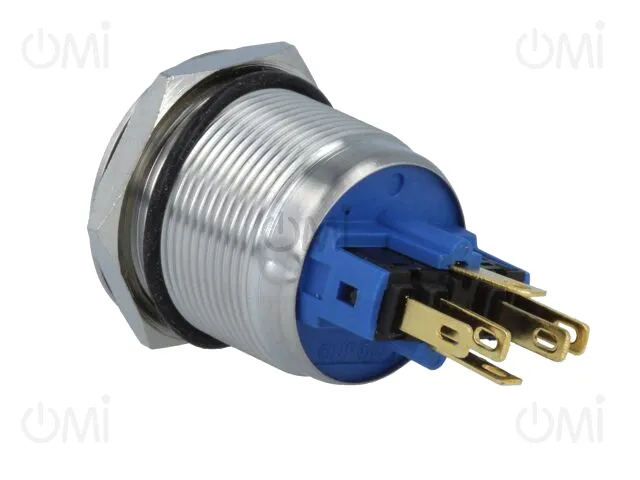

GQ22-11ZD/B/12V ONPOW

Details

GQ22-11ZD/B/12V
GQ22-11ZD/B/12V
GQ22-11ZD/B/12V
GQ22-11ZD/B/12V
GQ22-11ZD/B/12V
GQ22-11ZD/B/12V
GQ22-11ZD/B/12V
GQ22-11ZD/B/12V
GQ22-11ZD/B/12V
  • GQ22-11ZD/B/12V
  • GQ22-11ZD/B/12V
  • GQ22-11ZD/B/12V
  • GQ22-11ZD/B/12V
  • GQ22-11ZD/B/12V
  • GQ22-11ZD/B/12V
  • GQ22-11ZD/B/12V
  • GQ22-11ZD/B/12V
  • GQ22-11ZD/B/12V

Manufacturer product page ONPOW

Switch: vandal resistant; Pos: 2; SPST-NO + SPST-NC; 3A/220VAC

Manufacturer code: GQ22-11ZD/B/12V

OMI code: 47659

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

4 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 16.88
2+ 12.3
4+ 11.65

Price details
GQ22-11ZD/B/12V

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 16.88
2+ 12.3
4+ 11.65

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
ONPOW
Type of switch
vandal resistant
Operating temperature
-20...55°C
IP rating
IP65
Leads
for soldering
Related items
M22-11D
Contacts configuration
SPST-NO + SPST-NC
Body material
stainless steel
Switching method
ON-ON
Mechanical durability
1000000 cycles
Electrical life
50000 cycles
Contact material
silver alloy
Body colour
silver
Mounting hole diameter
Ø22mm
AC contacts rating @R
3A / 220V AC
Number of positions
2
DC contacts rating @R
5A / 24V DC
Illumination
LED, point
Max. contact resistance:
50mΩ
Backlight colour
blue
Button shape
flat
Stable positions number
2
Operating Force
5.5N
Illumination voltage
12V
Ring shape
rounded
Test voltage
2kV
Gross weight 25.75 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Push Button Switches
