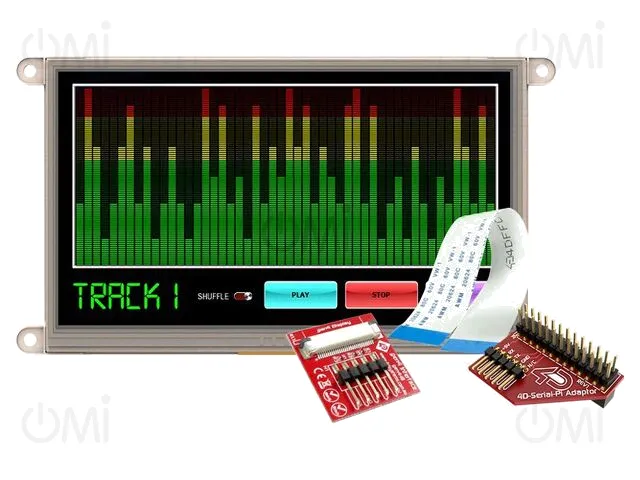

GEN4-ULCD-70DT-PI 4D Systems

Details

GEN4-ULCD-70DT-PI
  • GEN4-ULCD-70DT-PI

Manufacturer product page 4D Systems

Display: TFT; 7"; 800x480; 32kBRAM,192kBFLASH; 455cd/m2; uLCD; 5VDC

Manufacturer code: GEN4-ULCD-70DT-PI

OMI code: 53164

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 186.82

Price details
GEN4-ULCD-70DT-PI

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 186.82

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
4D Systems
Operating temperature
-15...65°C
Kit contents
4D Serial Pi adapter, 15cm 30pin FFC cable, GEN4-IB
Manufacturer series
uLCD
Operating current
0.67A
Supply voltage
5V DC
Connector pinout layout
1x30
Related items
BANANA-PI, BANANA-PI-M1+, BANANA-PI-M2
Kind of connector
FFC/FPC
Dimensions
187x102.1x8.3mm
Interface
I2C x3, SPI x3, serial, GPIO, 1-wire, 8bit parallel
Memory
32kB RAM, 192kB FLASH
Kind of display
graphical
Display resolution
800x480
Type of display
TFT
Window dimensions (H x W)
154.08x85.92mm
Screen size
7"
Luminosity
455cd/m<sup>2</sup>
No. of colours
65k
Touchpad
resistance
Display features
microSD card reader, pulse output, CRC, PWM output, NeoPixel, quadrature input
Flash memory organisation
6x32kB
Microcontroller
DIABLO16
Gross weight 409.60 g
Documentation in English #1 Documentation in English #2

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Intelligent displays modules
