DSO2C15 HANTEK

Details

DSO2C15
  • DSO2C15

Manufacturer product page HANTEK

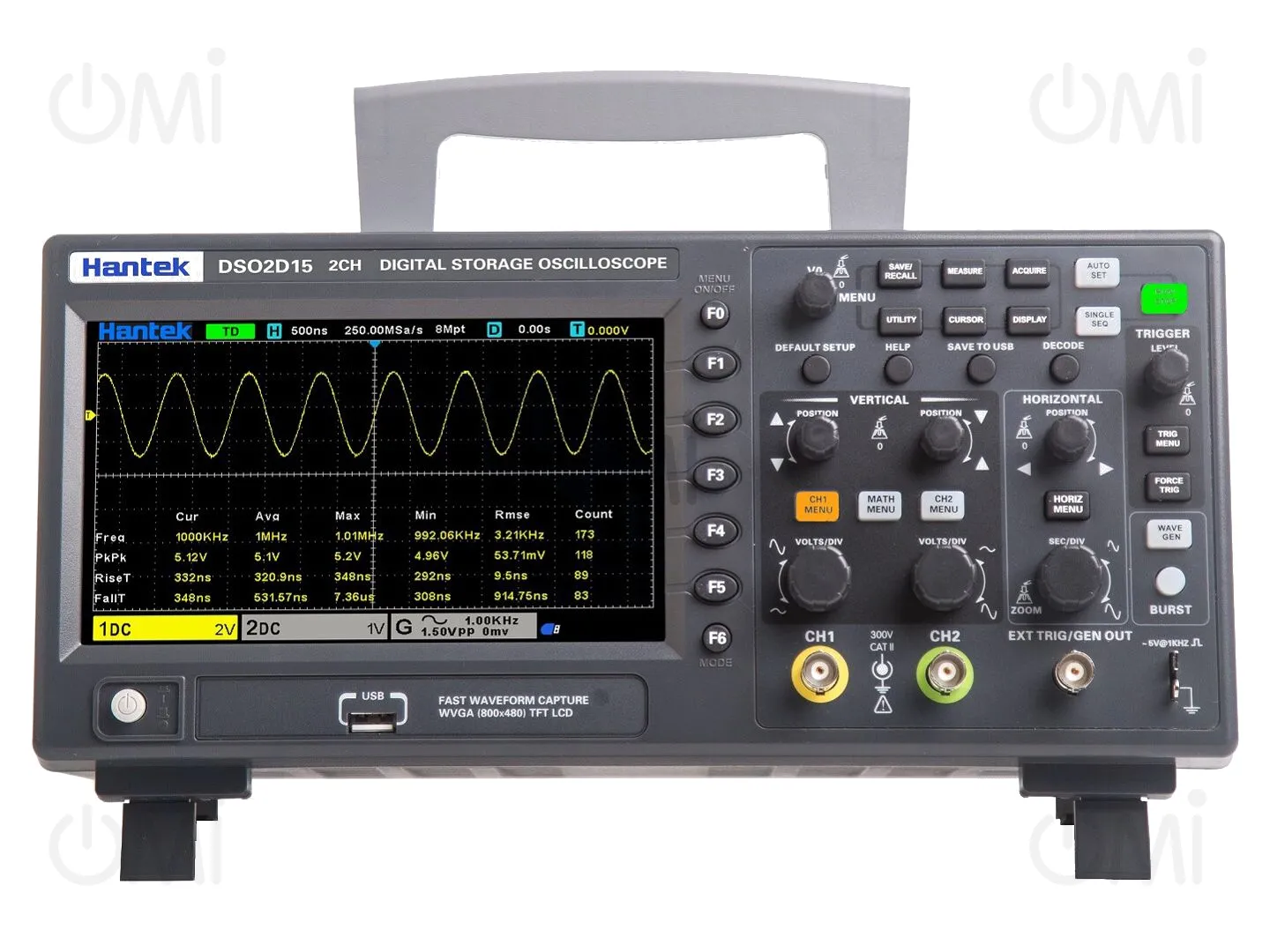

Oscilloscope: digital; DSO; Ch: 2; 150MHz; 1Gsps; 4Mpts/ch; DSO2000

Manufacturer code: DSO2C15

OMI code: 53480

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

18 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 224.14

Price details
DSO2C15

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 224.14

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
HANTEK
Operating temperature
0...50°C
Manufacturer series
DSO2000
Supply voltage
100...240V AC
Conform to the norm
EN 61010, CAT II 300V
Body dimensions
318x110x150mm
Interface
USB
Number of channels
2
Kind of display used
colour, LCD TFT 7"
Standard equipment
USB cable, test leads, manufacturer's calibration certificate, mains cable, oscilloscope probe with 10:1 divider
Measuring instrument features
measurements by means of cursors, supports SCPI, mathematical functions: addition, subtraction, division, multiplication and FFT, automatically measures frequency, period, peak to peak, RMS, MIN, MAX, MEAN values, FFT analysis: Hanning, Flattop, Rectangular, Bartletta, Blackman, Hamming, protocols analyse: I2C, SPI, RS232/UART, CAN, LIN
Input impedance
1MΩ/20pF
Software
included
Sampling
1Gsps
Band
150MHz
Trigger
rising-edge, falling-edge, impulse width, video signal, interval, pattern, slope, window, CAN/LIN, IIC, overtime, SPI, UART
Type of oscilloscope
digital
Input coupling
AC, DC, GND
Vertical resolution
12bit
Trigger modes
automatic, normal, single
Max. input voltage
300V
Rise time
≤2.4ns
Time base
2n...1ks/div
Memory record length
4Mpts/ch
Supply voltage 400Hz
100...120V AC
Kind of oscilloscope
DSO
Gross weight 2608.30 g
Documentation in English #1 Documentation in English #2 Documentation in English #3

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Digital Oscilloscopes
