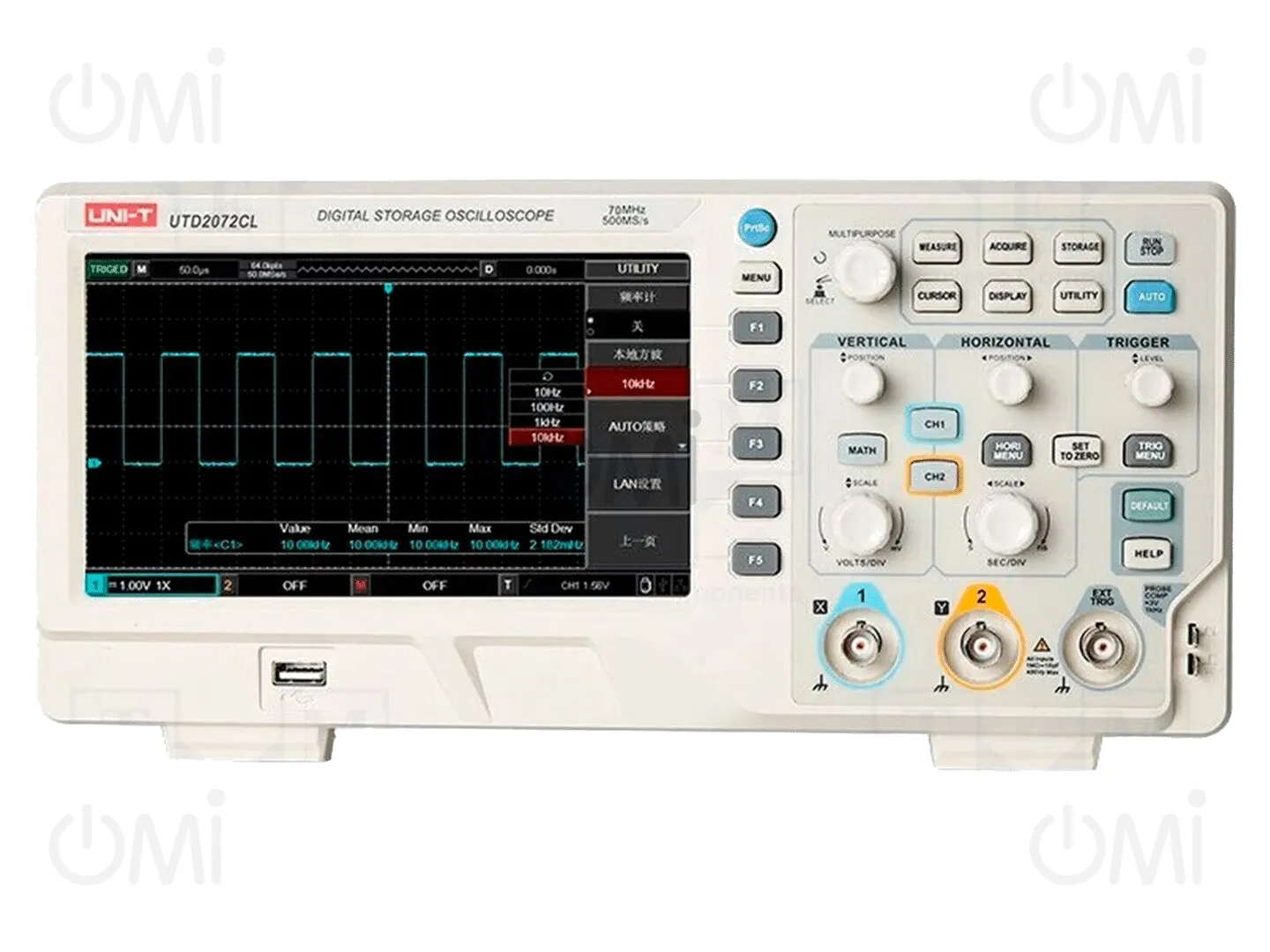

UTD2072CL UNI-T

Details

UTD2072CL
  • UTD2072CL

Manufacturer product page UNI-T

Oscilloscope: digital; Ch: 2; 25MHz; 500Msps; 64kpts; 2n÷50s/div

Manufacturer code: UTD2072CL

OMI code: 54496

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

3 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 262.7

Price details
UTD2072CL

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 262.7

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
UNI-T
Supply voltage
100...240V AC
Dimensions
306x138x124mm
Interface
USB
Number of channels
2
Kind of display used
colour, LCD TFT 7"
Standard equipment
mains cable, USB cable, oscilloscope probe x2
Measuring instrument features
automatic measurement of many parameters, mathematical functions: addition, subtraction, division, multiplication and FFT
Input impedance
1MΩ/24pF
Sampling
500Msps
Band
25MHz
Trigger
rising-edge, falling-edge, impulse width, video signal, alternative
Type of oscilloscope
digital
Input coupling
AC, DC, GND
Max. input voltage
400V
Rise time
≤5ns
Input sensitivity
1mV/div...20V/div
Time base
2n...50s/div
Memory record length
64kpts
Gross weight 3412.50 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Digital Oscilloscopes
