3403.0156.24 SCHURTER

Details

3403.0156.24
  • 3403.0156.24

Manufacturer product page SCHURTER

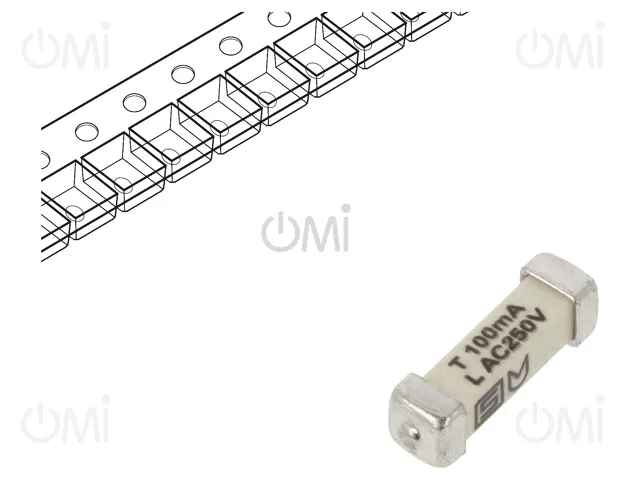

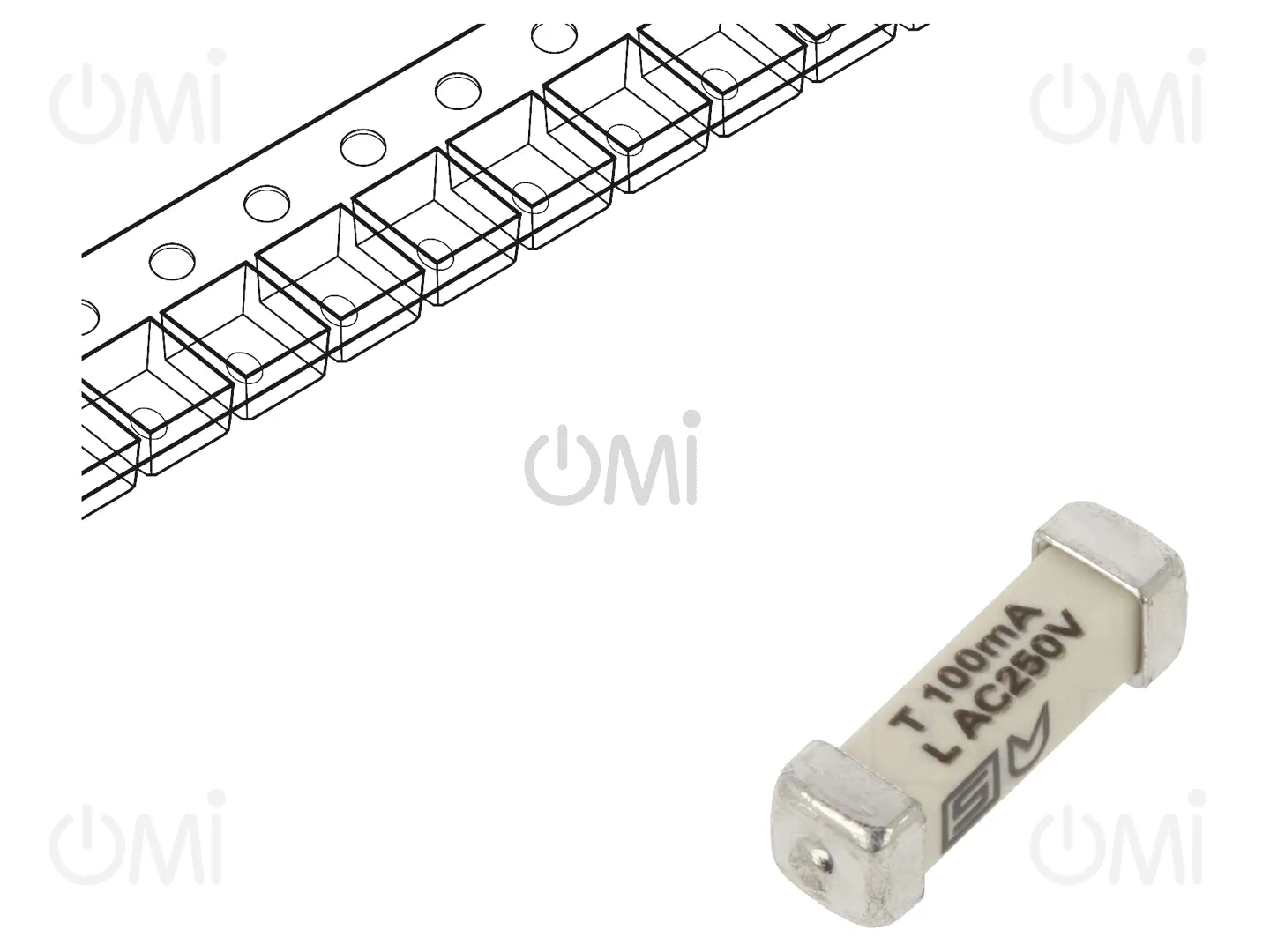

Fuse: fuse; time-lag; 100mA; 250VAC; 125VDC; SMD; ceramic; 3x10.1mm

Manufacturer code: 3403.0156.24

OMI code: 606926

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

6699 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 1.29
10+ 0.88
25+ 0.76
58+ 0.72

Price details
3403.0156.24

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 1.29
10+ 0.88
25+ 0.76
58+ 0.72

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
SCHURTER
Mounting
SMD
Operating temperature
-55...125°C
Current rating
0.1A
Manufacturer series
UMT 250
Kind of package
reel, tape
Contact plating
tinned
Contact material
copper
Fuse size
3x10.1mm
Soldering temperature
245°C / 3 s
Type of fuse
fuse
Power dissipation
0.2W
Max voltage drop
1.3V
Kind of fuse
ceramic
Fuse characteristics
time-lag
Rated voltage
250V AC, 125V DC
Breaking characteristics
2I<sub>n</sub>: max 120s, 1.25I<sub>n</sub>: min 1h, 10I<sub>n</sub>: min 10ms, 10I<sub>n</sub>: max 100ms
Gross weight 0.31 g

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: UMT SMD Fuses - Time-Lag
