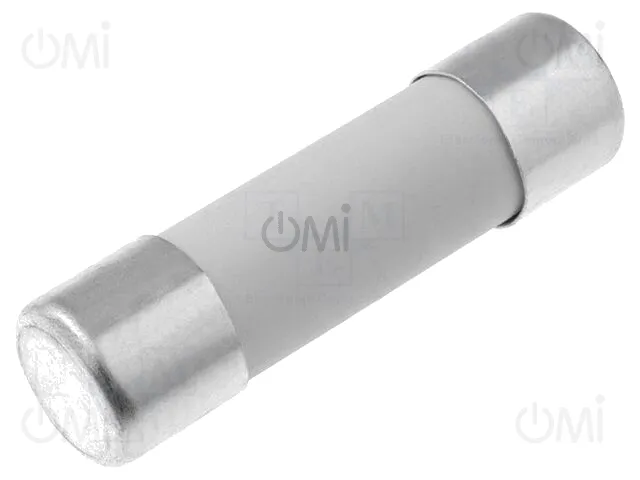

0216.200MXP LITTELFUSE

Details

0216.200MXP
  • 0216.200MXP

Manufacturer product page LITTELFUSE

Fuse: fuse; quick blow; 200mA; 250VAC; ceramic,cylindrical; 5x20mm

Manufacturer code: 0216.200MXP

OMI code: 613274

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1000+ 0.69

Price details
0216.200MXP

Qty.
[pcs] 		Price
[EUR/pcs]
1000+ 0.69

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
LITTELFUSE
Operating temperature
-55...125°C
Current rating
0.2A
Manufacturer series
216
Kind of package
bag
Contact plating
nickel plated
Contact material
brass
Breaking capacity
1.5kA
Fuse size
5x20mm
Soldering temperature
260°C / 5 s
Fuses application
standard applications
Type of fuse
fuse
Power dissipation
1.6W
Max voltage drop
3.5V
Kind of fuse
miniature, cylindrical, ceramic
Fuse characteristics
quick blow
Rated voltage
250V AC
Energy I2t
0.00439A<sup>2</sup>s
Breaking characteristics
1.5I<sub>n</sub>: min 1h, 2.75I<sub>n</sub>: max 2s, 4I<sub>n</sub>: max 300ms, 10I<sub>n</sub>: max 20ms, 2.75I<sub>n</sub>: min 10ms, 4I<sub>n</sub>: min 3ms
Gross weight 1.02 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Fuses 5x20mm - Fast
