DM-107 1K TELPOD

Details

DM-107 1K
  • DM-107 1K

Manufacturer product page TELPOD

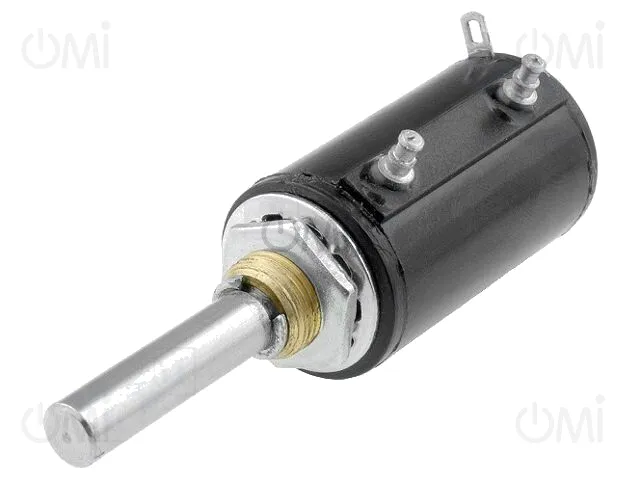

Potentiometer: shaft; multiturn; 1kΩ; 0.75W; ±5%; 6mm; wirewound

Manufacturer code: DM-107 1K

OMI code: 63689

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
100+ 81.31

Price details
DM-107 1K

Qty.
[pcs] 		Price
[EUR/pcs]
100+ 81.31

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
TELPOD
Power
0.75W
Body dimensions
Ø20.5x36mm
Tolerance
±5%
Resistance
1kΩ
Max. operating voltage
100V AC
Thread length
7.5mm
Type of potentiometer
shaft
Track material
wirewound
Kind of potentiometer
multiturn
Fastening thread
M10x0,75
Shaft diameter
6mm
Shaft length
24mm
Linearity tolerance
±0.5%
Shaft surface
smooth
Potentiometer features
precise
L shaft length
31.5mm
Number of electrical turns
10
Gross weight 30.50 g

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Wire multiturn potentiometers
