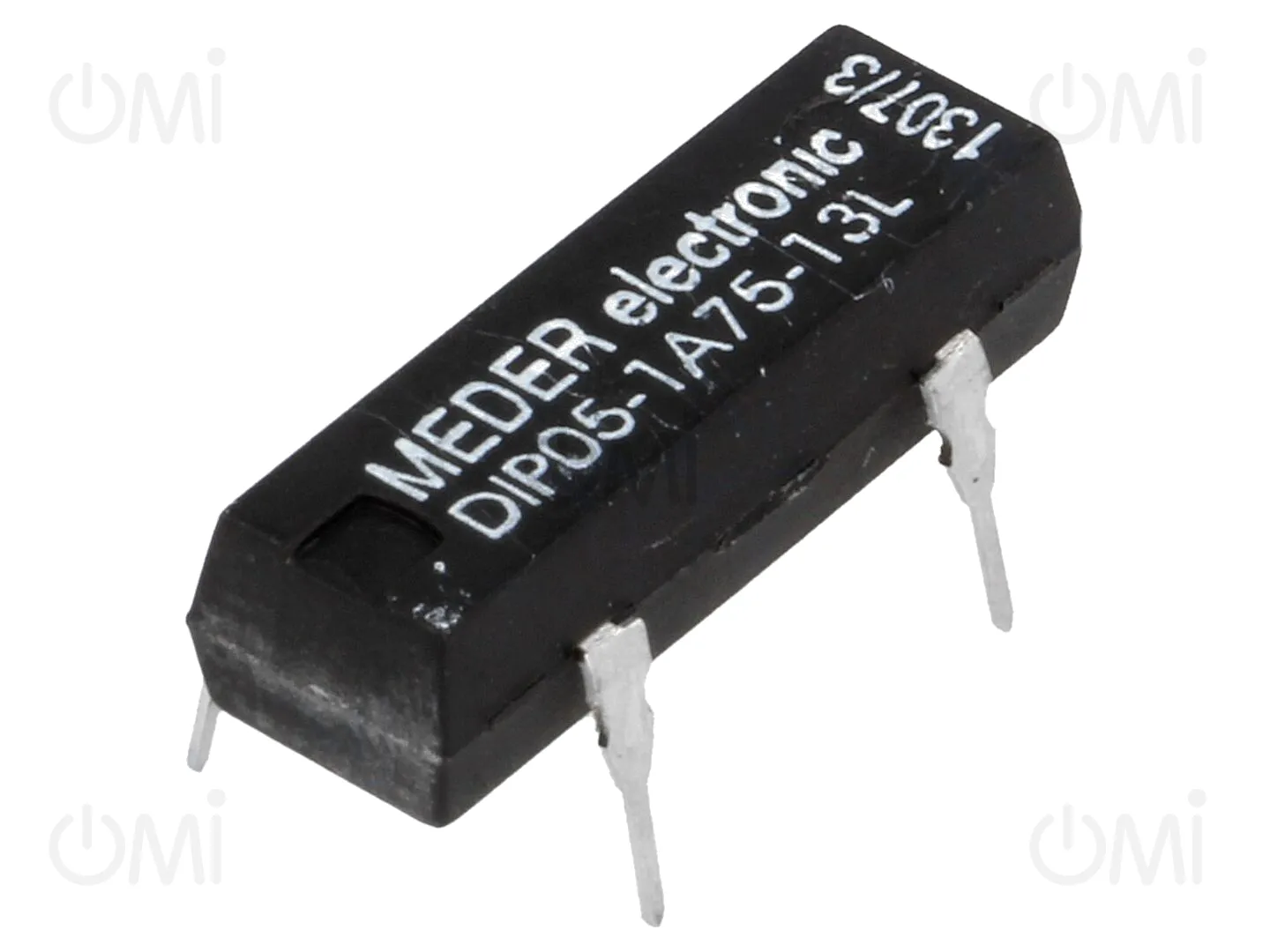

DIP05-1A75-13L MEDER

Details

DIP05-1A75-13L
  • DIP05-1A75-13L

Manufacturer product page MEDER

Relay: reed switch; SPST-NO; Ucoil: 5VDC; 500mA; max.500VDC; 125mW

Manufacturer code: DIP05-1A75-13L

OMI code: 64328

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

59 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 17.36
2+ 12.56
4+ 11.89

Price details
DIP05-1A75-13L

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 17.36
2+ 12.56
4+ 11.89

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
MEDER
Operating temperature
-20...70°C
Contacts configuration
SPST-NO
Switched voltage
max. 500V AC, max. 500V DC
Type of relay
reed switch
Contact current max.
0.5A
Relay series
DIP
Coil resistance
200Ω
Rated coil voltage
5V DC
Contact resistance
0.2Ω
Coil power consumption
125mW
Coil current
25mA
Gross weight 1.39 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Reed Electromagnetic Relays
