TAO3102A OWON

Details

TAO3102A
  • TAO3102A

Manufacturer product page OWON

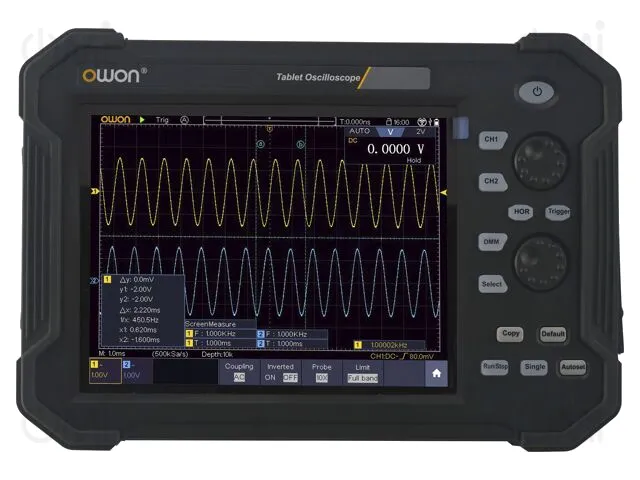

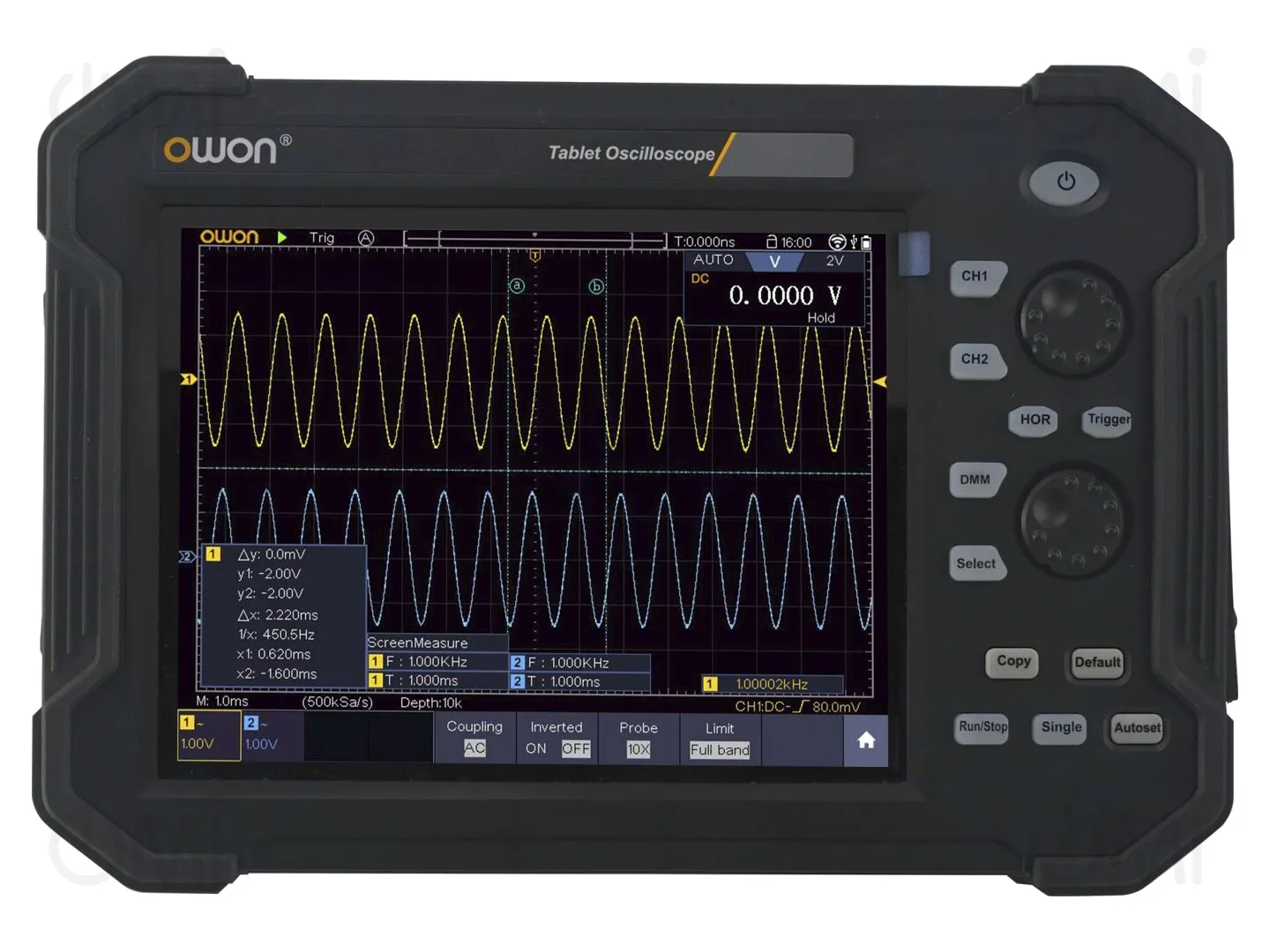

Handheld oscilloscope; 100MHz; LCD TFT 8"; Ch: 2; 1Gsps; 40Mpts

Manufacturer code: TAO3102A

OMI code: 64594

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

6 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 714.37

Price details
TAO3102A

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 714.37

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
OWON
Manufacturer series
TAO3000
Dimensions
270x191x48mm
Interface
SPI, CAN, I2C, RS232
Number of channels
2
Kind of display used
LCD TFT 8"
Power supply
rechargeable battery Li-Ion 7,4V 8000mAh x1
Additional functions
multimeter
Standard equipment
mounting holder, mains cable, test leads ( 2pcs.), BNC adapter, adapter AC, oscilloscope probe x2, USB micro cable, extension module, probe adjust
Measuring instrument features
mathematical functions: addition, subtraction, division, multiplication and FFT, data logger function, advenced trigger and bus decoding function
Input impedance
1MΩ/15pF
Display resolution
800x600
Measurement memory
100
Plug variant
EU
Touchpad
yes
Software
LabVIEW
Sampling
1Gsps
Band
100MHz
Trigger
rising-edge, falling-edge, video signal, runt, pulse, slope, window, SPI, CAN, I2C, timeout, pattern width, RS232/UART, serial protocol
Type of oscilloscope
handheld oscilloscope
Input coupling
AC, DC, GND
Vertical resolution
14bit
Trigger modes
automatic, normal, single
Rise time
≤3.5ns
Input sensitivity
1mV/div...10V/div
Time base
1n...1ks/div
Memory record length
40Mpts
Trigger source
CH1, CH2
Gross weight 3573.30 g
Documentation in English #1 Documentation in English #2 Documentation in English #3
