BJR100-DDT-F AUTONICS

Details

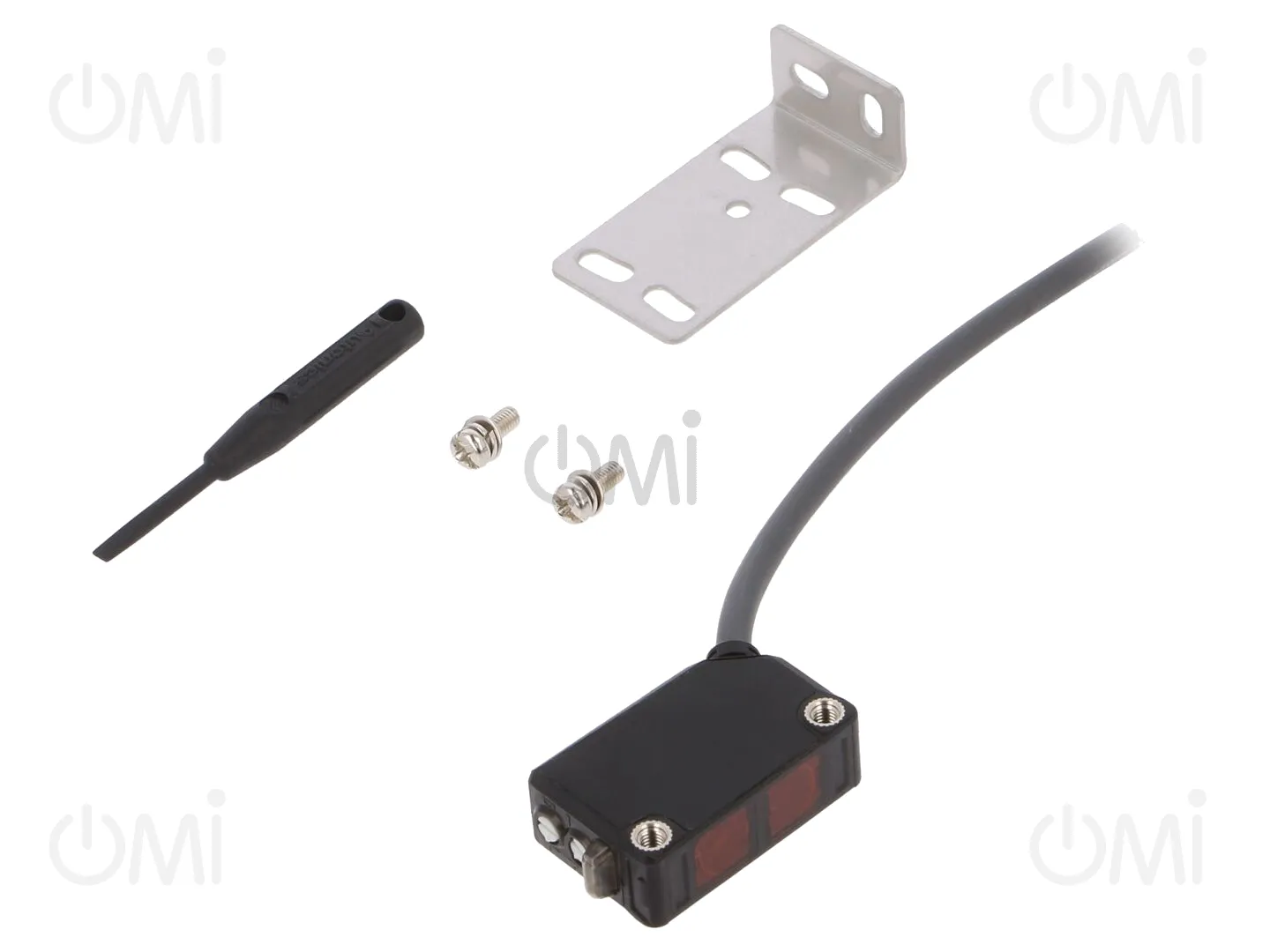

BJR100-DDT-F
  • BJR100-DDT-F

Manufacturer product page AUTONICS

Sensor: photoelectric; Range: 100mm; NPN; DARK-ON,LIGHT-ON; 20mA

Manufacturer code: BJR100-DDT-F

OMI code: 65432

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

2 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 53

Price details
BJR100-DDT-F

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 53

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
AUTONICS
Operating temperature
-25...60°C
IP rating
IP67
Max. operating current
20mA
Supply voltage
10...30V DC
Body dimensions
11x20x32mm
Body material
plastic
Connection
lead 2m
Resistance to
oils
Type of sensor
photoelectric
Output configuration
NPN
Range
0.1m
Sensors features
sensitivity adjustable, detect transparent objects
Operation mode
diffuse-reflective
Operation modes
DARK-ON, LIGHT-ON
Response time
<1ms
Gross weight 50.00 g
Documentation in English #1 Documentation in English #2

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Standard Photoelectric Sensors
