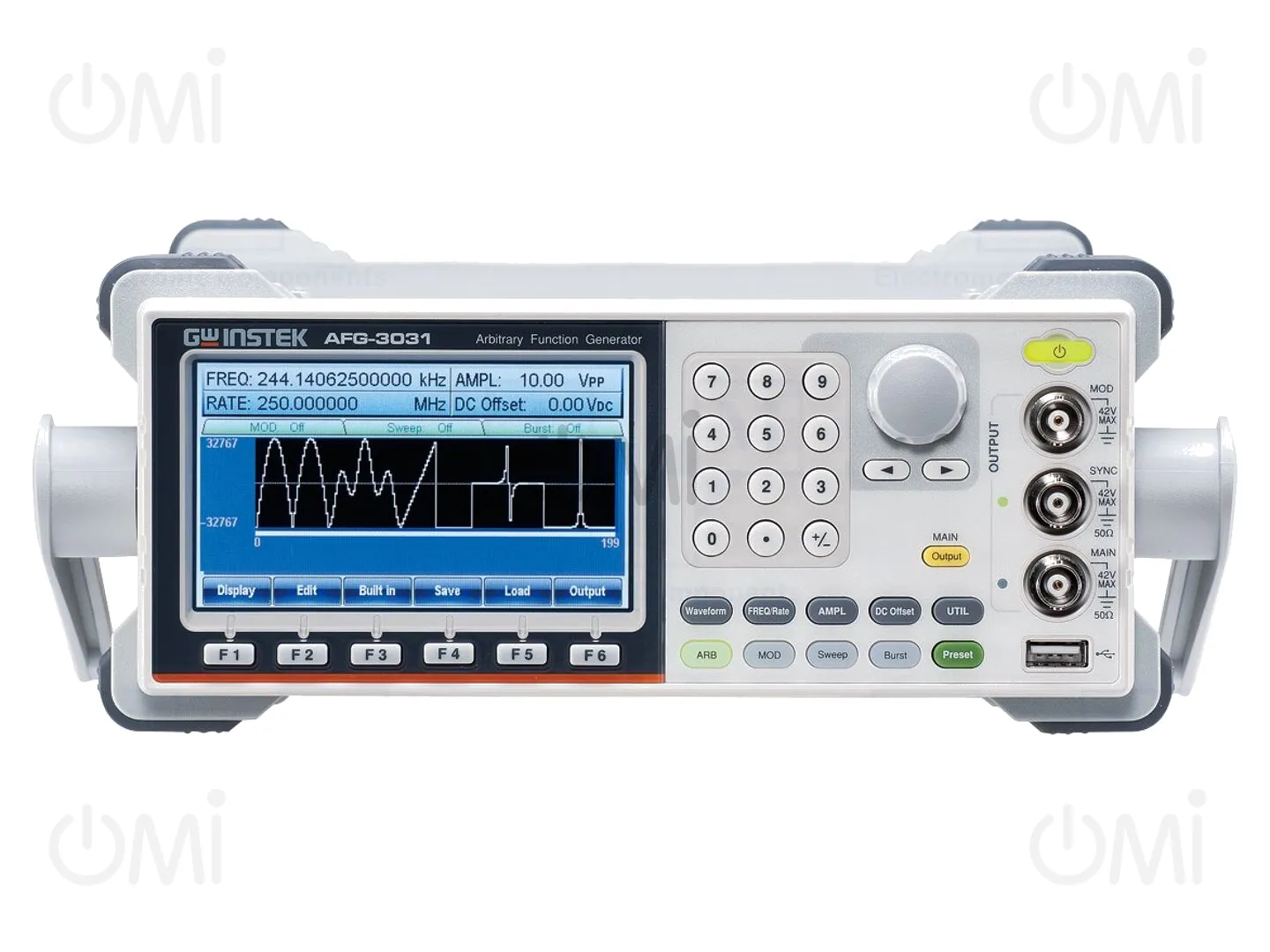

AFG-3031GP GW INSTEK

Details

AFG-3031GP
  • AFG-3031GP

Manufacturer product page GW INSTEK

Generator: arbitrary, function; 30MHz; colour,LCD TFT 4,3"; Ch: 1

Manufacturer code: AFG-3031GP

OMI code: 67927

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 1935.23

Price details
AFG-3031GP

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 1935.23

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
GW INSTEK
Manufacturer series
AFG-3000
Supply voltage
100...240V AC
Dimensions
265x107x374mm
Interface
USB, LAN, GPIB
Number of channels
1
Kind of display used
colour, LCD TFT 4,3"
Standard equipment
BNC cable
Measuring instrument features
10 sets memory, possibility to connect 4 units in series or 6 in parallel
Type of generator
arbitrary, function
Software
included
Sampling
250Msps
Vertical resolution
16bit
Memory record length
8Mpts
Maximum waveform frequency
30MHz
Waveform frequency range
1µHz...30MHz (rectangular waveform), 1µHz...30MHz (sinus waveform), 1µHz...1MHz (ramp waveform), 1µHz...1MHz (triangle waveform), 1µHz...25MHz (pulse waveform), 1µHz...40MHz (arbitrary waveform)
Output parameters
impedance: 50Ω
Kind of modulation
AM, FM, FSK, PWM, MSK, PSK, QAM, SUM
Waveforms
impulse, arbitrary, rectangular, sinus, triangle, noise, burst, cardiac, DC, ECG1, ECG2, ECG3, harmonic, ignition, ISO7637-2 TP2B, ISO7637-2 TP3A, ISO7637-2 TP3B, sweep
Gross weight 4000.00 g
Documentation in English #1 Documentation in English #2 Documentation in English #3 Documentation in English #4

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Generators and Frequency Meters
