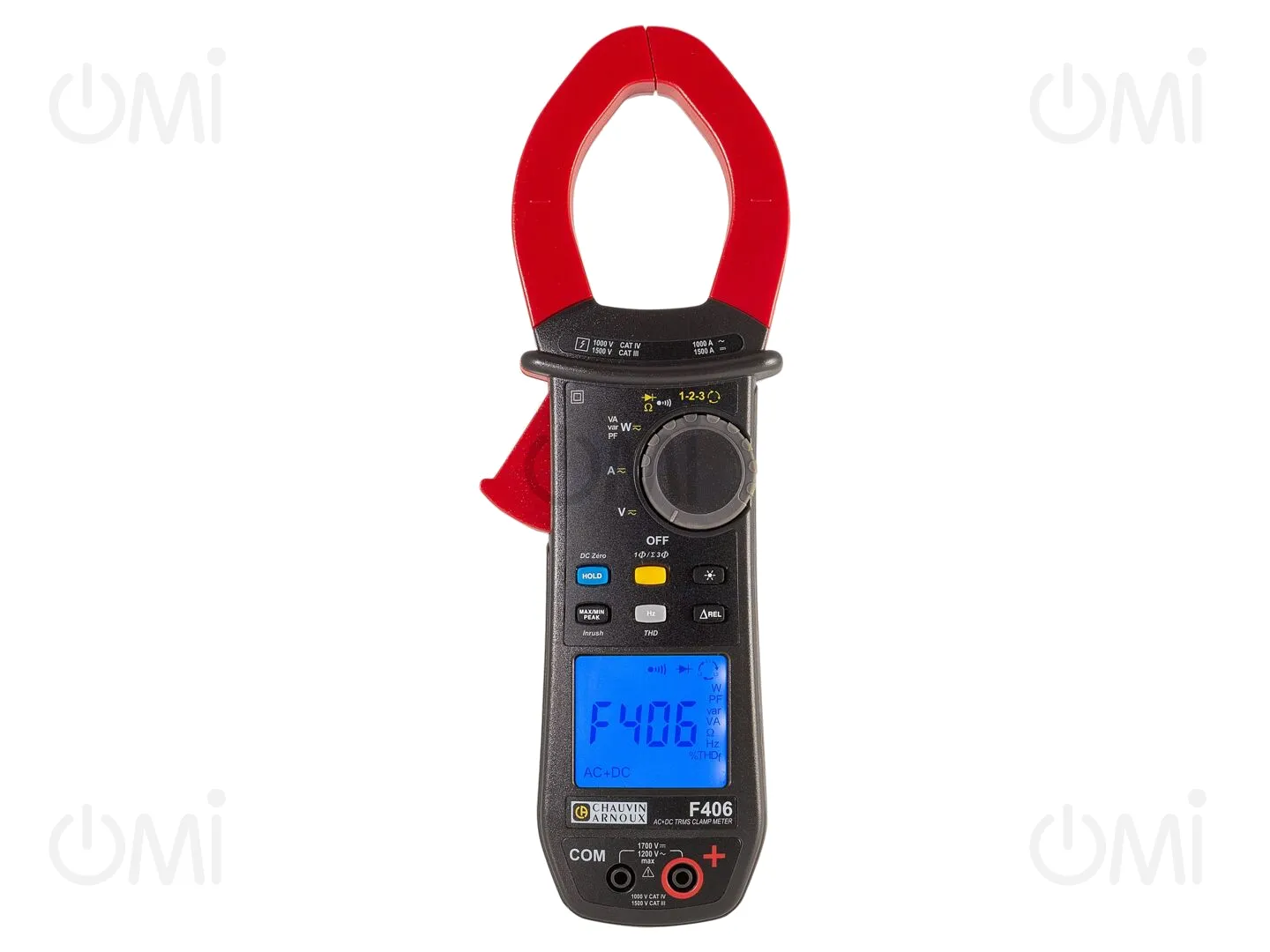

F406 CHAUVIN ARNOUX

Details

F406
  • F406

Manufacturer product page CHAUVIN ARNOUX

Meter: multifunction; digital,pincers type; Øcable: 48mm; LCD

Manufacturer code: F406

OMI code: 68120

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 546.11

Price details
F406

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 546.11

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
CHAUVIN ARNOUX
Conform to the norm
EN 61010, CAT IV 1000V, CAT III 1500V
Dimensions
92x272x41mm
Kind of display used
LCD
Illumination
yes
Power supply
battery LR6 AA 1,5V x4
Standard equipment
test leads, case, test probes, aligator clip x1
Measuring instrument features
automatic power-off, low battery indicator, MIN/MAX function, HOLD function, REL function, PEAK function, True InRush function, selection of AC or AC+DC measurement
Display parameters
(10000)
Type of meter
multifunction
True effective value measurement
True RMS
Measurement
AC current, DC current, DC voltage, resistance, AC voltage, active power, apparent power, frequency, harmonics, inrush current, reactive power, continuity, phase sequence
Battery/ rechargeable battery
battery LR6 AA 1,5V x4
Kind of meter
digital, pincers type
AC current measuring range
250mA...1kA
Continuity test
acoustic indication
Frequency measuring range
5...20kHz
Test
diodes
Resistance measuring range
0.1...99.99kΩ
DC current measuring range
250mA...1.5kA
Max. diameter of measured cable
48mm
DC voltage measuring range
150mV...1.7kV
AC voltage measuring range
150mV...1.2kV
AC current measuring accuracy
±(1% + 3 digit)
DC voltage measuring accuracy
±(1% + 3 digit)
DC current measuring accuracy
±(1% + 3 digit)
AC voltage measuring accuracy
±(1% + 3 digit)
Resistance measuring accuracy
±(1%+5 digit)
Frequency measuring accuracy
±(0.4%+1 digit)
Apparent power measurement
1...1200kVA
Gross weight 1165.10 g
Documentation in English #1 Documentation in English #2
