700897 HELUKABEL

Details

700897
  • 700897

Manufacturer product page HELUKABEL

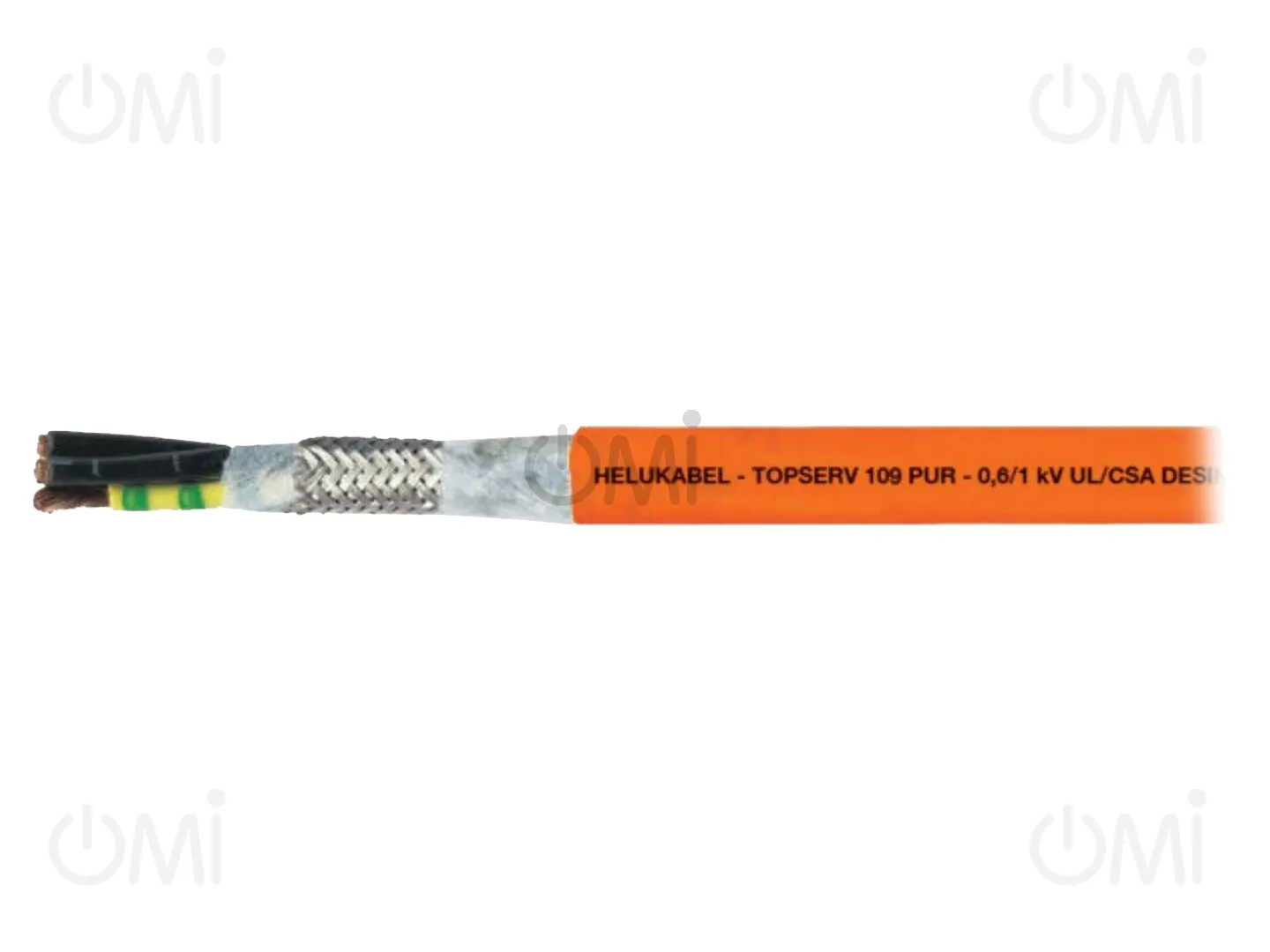

Wire: servo drive; TOPSERV®109; 4G95mm2; orange; stranded; Cu; PUR

Manufacturer code: 700897

OMI code: 68510

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 m

Qty.
[m] 		Price
[EUR/m]
1+ 158.97

Price details
700897

Qty.
[m] 		Price
[EUR/m]
1+ 158.97

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
HELUKABEL
Operating temperature
-30...80°C
Wire insulation material
PUR
Type of wire
servo drive
Number of cores
4
Resistance to
abrasion, flame, mineral oils, most of oils, UV rays, most of solvents, moisture, alkaline solutions, coolant
Insulation colour
orange
Cable application
automatics, industrial applications, motors power 0,6/1 kV, power chain, industrial tools, robotics, motors
Kind of material
no flame propagation
Kind of wire
TOPSERV®109
Kind of core
Cu
Core section
95mm<sup>2</sup>
Cable external diameter
49.5mm
Shield structure
tinned copper braid, shielded
Rated voltage
1kV, 600V
Core marking
black, numbered + ground wire
Core structure
stranded
Earth core
yellow-green
CPR standard
no classification
Cable structure
4G95mm<sup>2</sup>
Gross weight 5102.00 g
Documentation in English #1 Documentation in English #2

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Cables for Power Chains - Shielded
