3319/20 (100FT) 3M

Details

3319/20 (100FT)
  • 3319/20 (100FT)

Manufacturer product page 3M

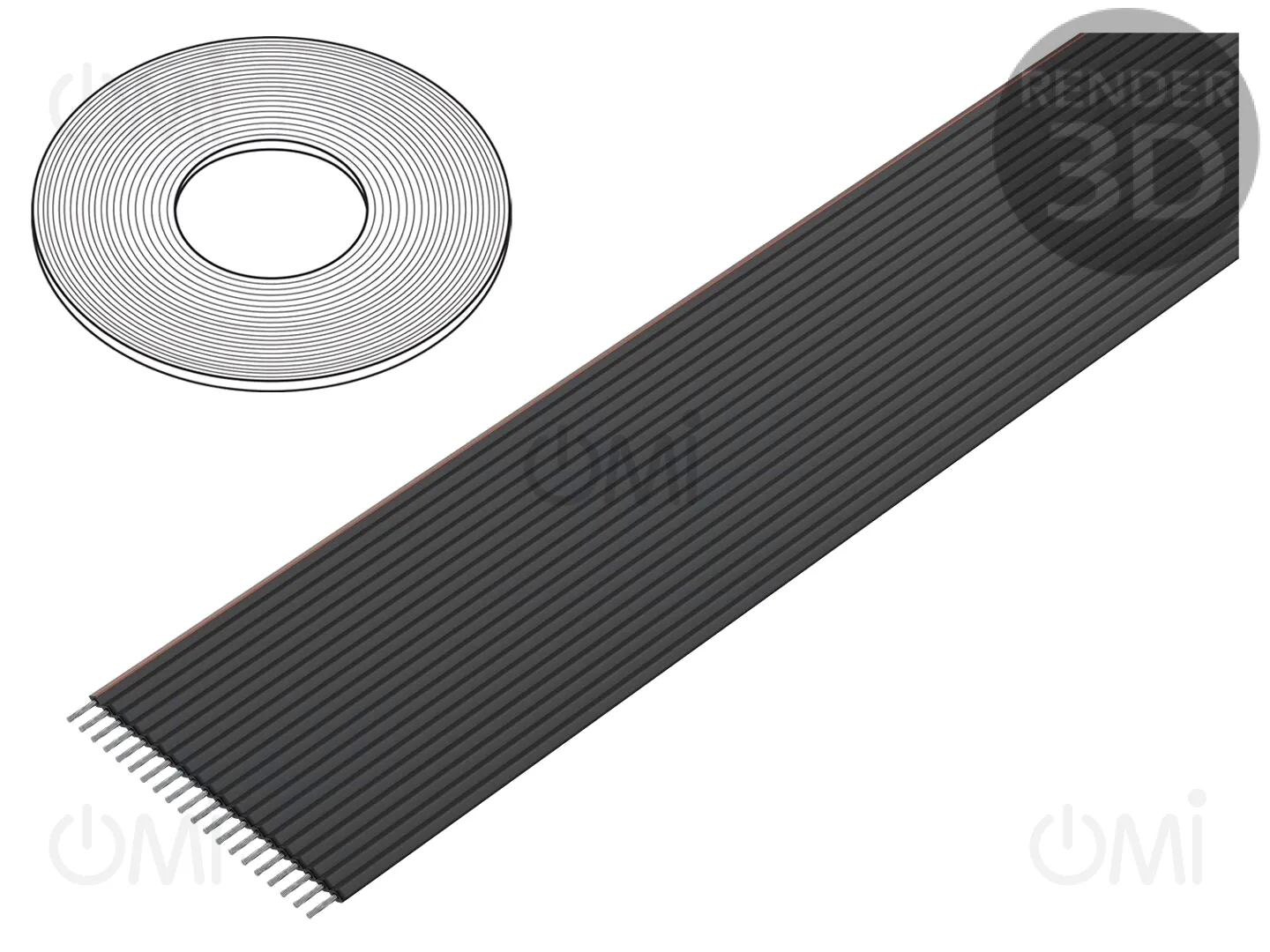

Wire: ribbon; 1.27mm; stranded; Cu; unshielded; PVC; black; 30.5m

Manufacturer code: 3319/20 (100FT)

OMI code: 68844

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

4 rol

Qty.
[rol] 		Price
[EUR/rol]
1+ 461.64

Price details
3319/20 (100FT)

Qty.
[rol] 		Price
[EUR/rol]
1+ 461.64

Quantity rol (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
3M
Operating temperature
-20...105°C
Conform to the norm
VW-1, UL 2651, CSA AWM I A/B FT1
Wire insulation material
PVC
Type of wire
ribbon
Number of cores
20
Insulation colour
black
A dimension
25.4mm
Ribbon cable pitch
1.27mm
Kind of core
Cu, silver plated
Cable features
work in continuous operation up to 100 million cycles
Shield structure
unshielded
Rated voltage
50V
Package contents
30.5m
Core diameter
28AWG
Core structure
stranded
B dimension
24.13mm
Cable structure
20x28AWG
Flexibility class
6
Gross weight 1183.20 g
Documentation in English #1 Documentation in English #2 Documentation in English #3

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Ribbon Cables - Single Color
