TS01CBE C&K

Details

TS01CBE
  • TS01CBE

Manufacturer product page C&K

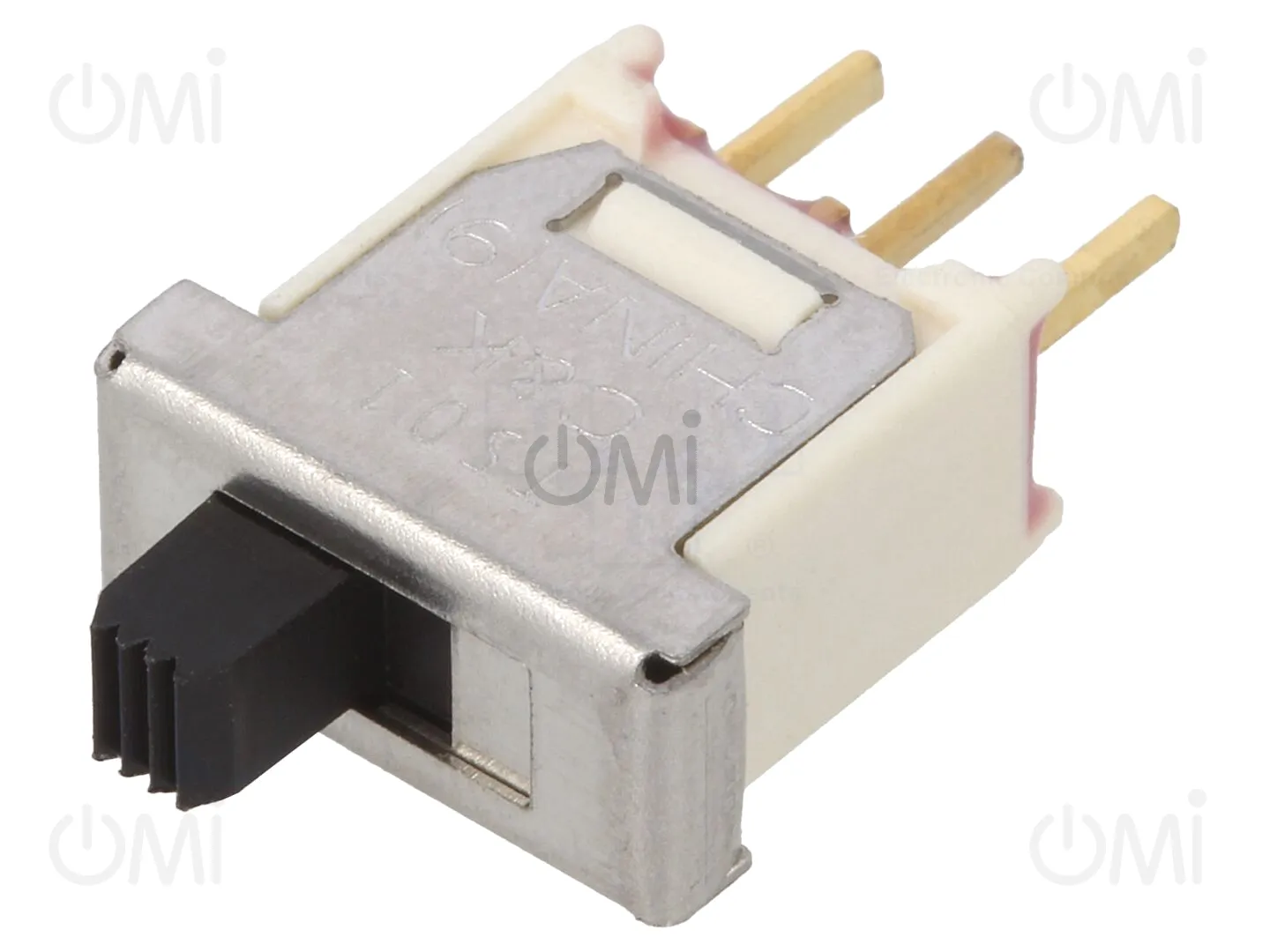

Switch: slide; Pos: 2; SP3T; 0.4A/20VDC; ON-ON; THT; -30÷85°C; TS

Manufacturer code: TS01CBE

OMI code: 73472

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

69 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 6.54
3+ 6.23
5+ 5.79
10+ 5.58

Price details
TS01CBE

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 6.54
3+ 6.23
5+ 5.79
10+ 5.58

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
C&K
Mounting
THT
Type of switch
slide
Operating temperature
-30...85°C
Leads
for PCB, straight
Body dimensions
8.13x5.08x8.79mm
Manufacturer series
TS
Contacts configuration
SP3T
Contact plating
gold-plated
Body material
polyamide
Switching method
ON-ON
Electrical life
60000 cycles
Contact material
copper
Number of positions
2
DC contacts rating @R
0.4A / 20V DC
Terminal pitch
2.54mm
Max. contact resistance:
100mΩ
Min. insulation resistance
1GΩ
Stable positions number
3
Actuator material
polyamide
Terminals material
copper alloy
Terminals plating
gold-plated
Gross weight 0.89 g
Documentation in English #1 Documentation in English #2 Documentation in English #3

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Slide Switches
