AX-TI220 AXIOMET

Details

AX-TI220
AX-TI220
AX-TI220
AX-TI220
AX-TI220
AX-TI220
AX-TI220
AX-TI220
AX-TI220
  • AX-TI220
  • AX-TI220
  • AX-TI220
  • AX-TI220
  • AX-TI220
  • AX-TI220
  • AX-TI220
  • AX-TI220
  • AX-TI220

Manufacturer product page AXIOMET

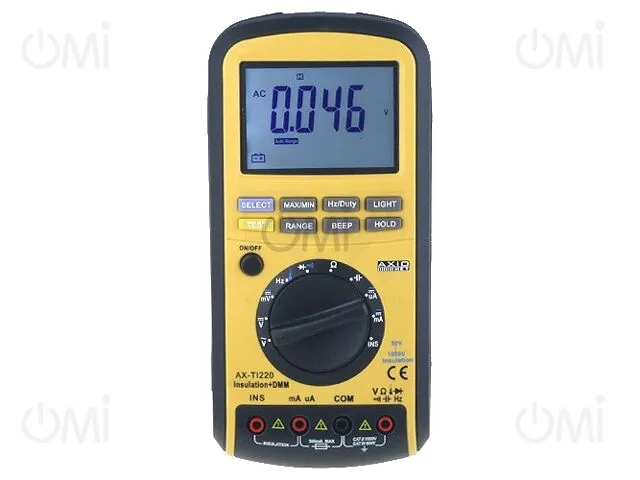

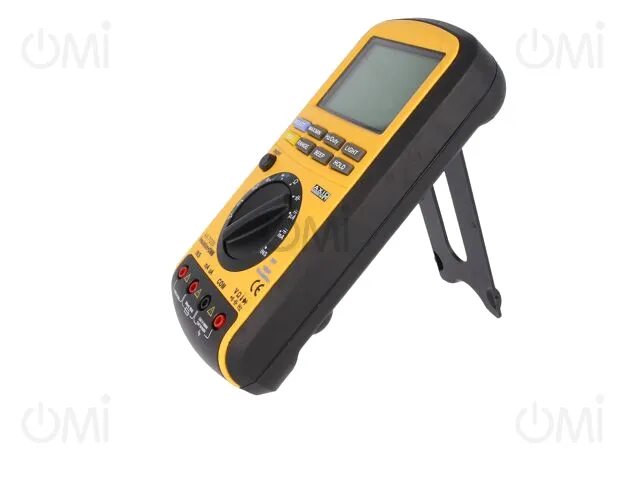

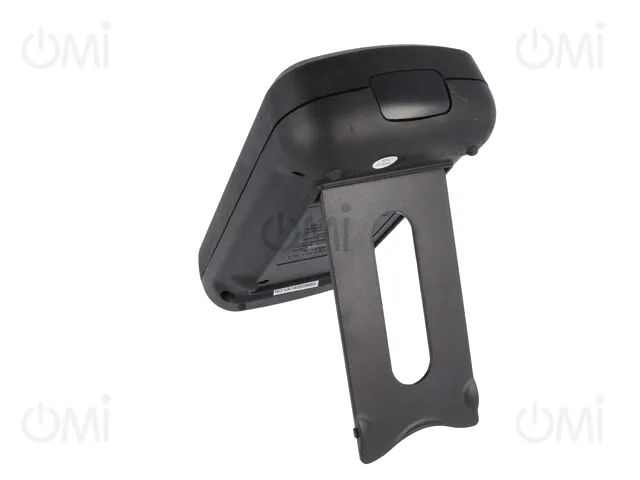

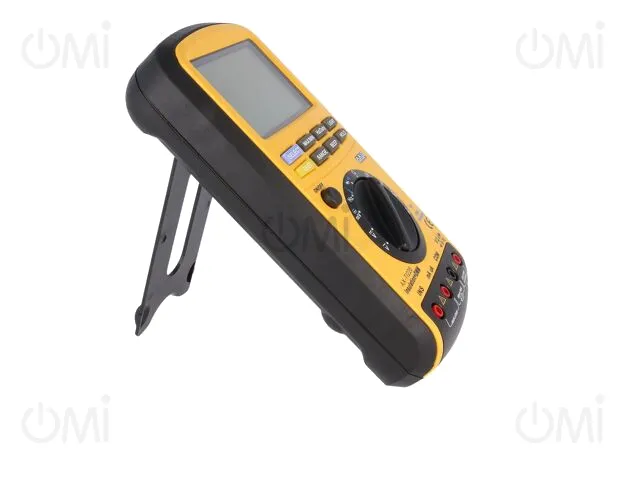

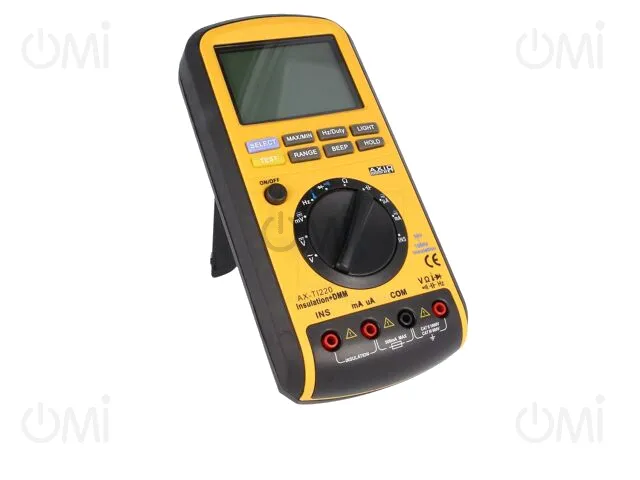

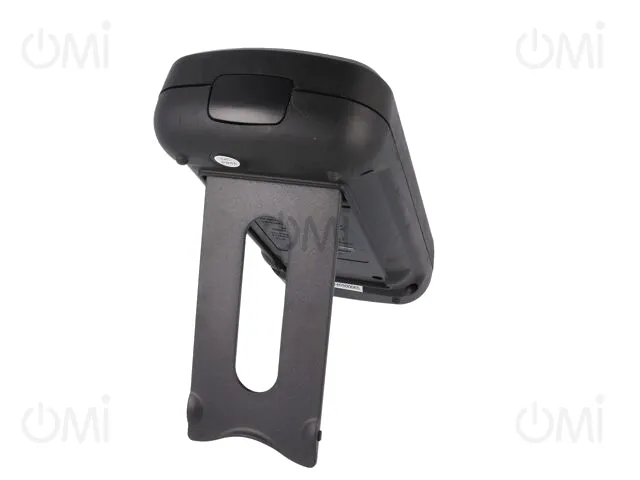

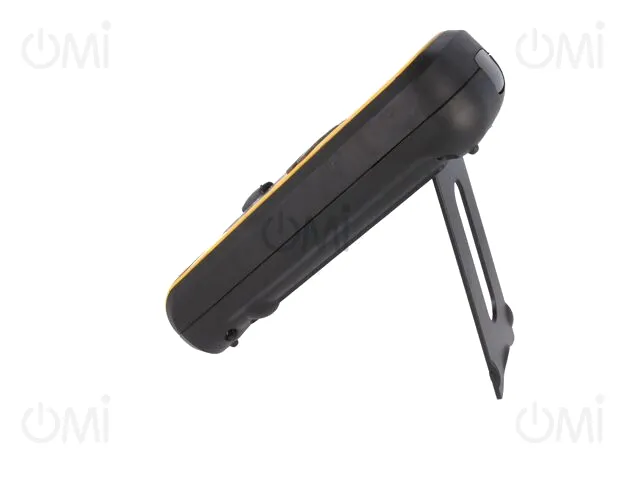

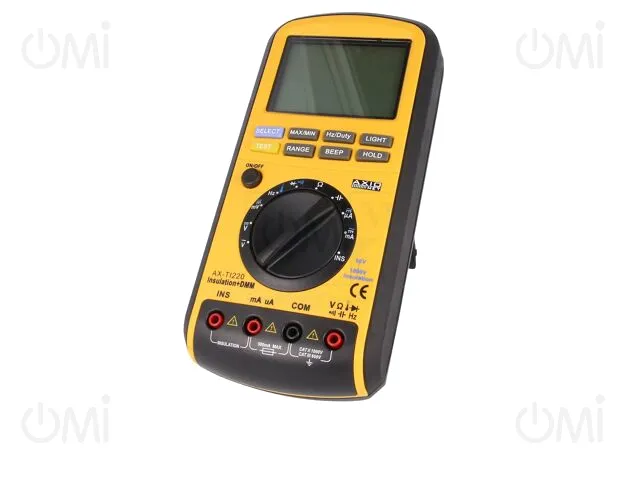

Meter: insulation resistance; LCD; (5000); True RMS AC+DC

Manufacturer code: AX-TI220

OMI code: 7356

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

12 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 164.8

Price details
AX-TI220

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 164.8

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
AXIOMET
Conform to the norm
EN 61010, CAT III 1000V
Body dimensions
200x100x40mm
Kind of display used
LCD
Illumination
yes
Power supply
battery GR03 AAA 1,5V x6
Standard equipment
case, test probes, temperature probe, 2 crocodile clips
Measuring instrument features
automatic power-off, low battery indicator, auto and manual ranging, MIN/MAX function, HOLD function, overload protection, wide test voltages selection
Temperature measurement accuracy
±(1% + 1,5°C)
Display parameters
(5000)
Type of meter
insulation resistance
Temperature measuring range
-40...537°C
Measuring unit
°C, °F
True effective value measurement
True RMS AC+DC
Measurement
AC current, DC current, DC voltage, resistance, temperature, AC voltage, frequency, capacitance, insulation resistance
Battery/ rechargeable battery
battery GR03 AAA 1,5V x6
AC current measuring range
5mA, 50mA, 0.5A, 0.1...500µA
Continuity test
acoustic indication, <25Ω
Frequency measuring range
1mHz...5Hz, 2MHz
Weight with battery
560g
Pollution degree
2
Resistance measuring range
5kΩ, 50kΩ, 500kΩ, 5MΩ, 50MΩ, 100mΩ...500Ω
DC current measuring range
5mA, 50mA, 500mA, 0.1...500µA
DC voltage measuring range
1kV, 50V, 500V, 0.1...500mV, 5V
AC voltage measuring range
1kV, 50V, 500V, 5V, 0.1...500mV
AC current measuring accuracy
±(0.8% + 4 digit)
DC voltage measuring accuracy
±(0.1% + 2 digit)
Capacitance measuring range
1mF, 5µF, 50µF, 500µF, 10pF...50nF, 500nF
DC current measuring accuracy
±(0.2% + 2 digit)
Diode test
0.7mA @2.5V
AC voltage measuring accuracy
±(0.8% + 4 digit)
Resistance measuring accuracy
±(0.3%+5 digit)
Frequency measuring accuracy
±(0.1%+4 digit)
Capacitance measuring accuracy
±(2%+ 10 digit)
Test voltage
50V, 250V, 500V, 1kV
Insulation resistance measuring ranges
100MΩ, 2GΩ, 0.05...0.1MΩ, 0.25MΩ, 0.5MΩ, 1MΩ, 10MΩ
Bandwidth for AC voltage measurements
40...400Hz
Temperature measurement resolution
0.1°C
Insulation resistance measuring accuracy
±(1.5% + 5digit)
Gross weight 976.20 g
Documentation in English #1 Documentation in English #2 Documentation in English #3 Documentation in English #4 Documentation in English #5 Documentation in English #6

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Insulation Resistance Meters
