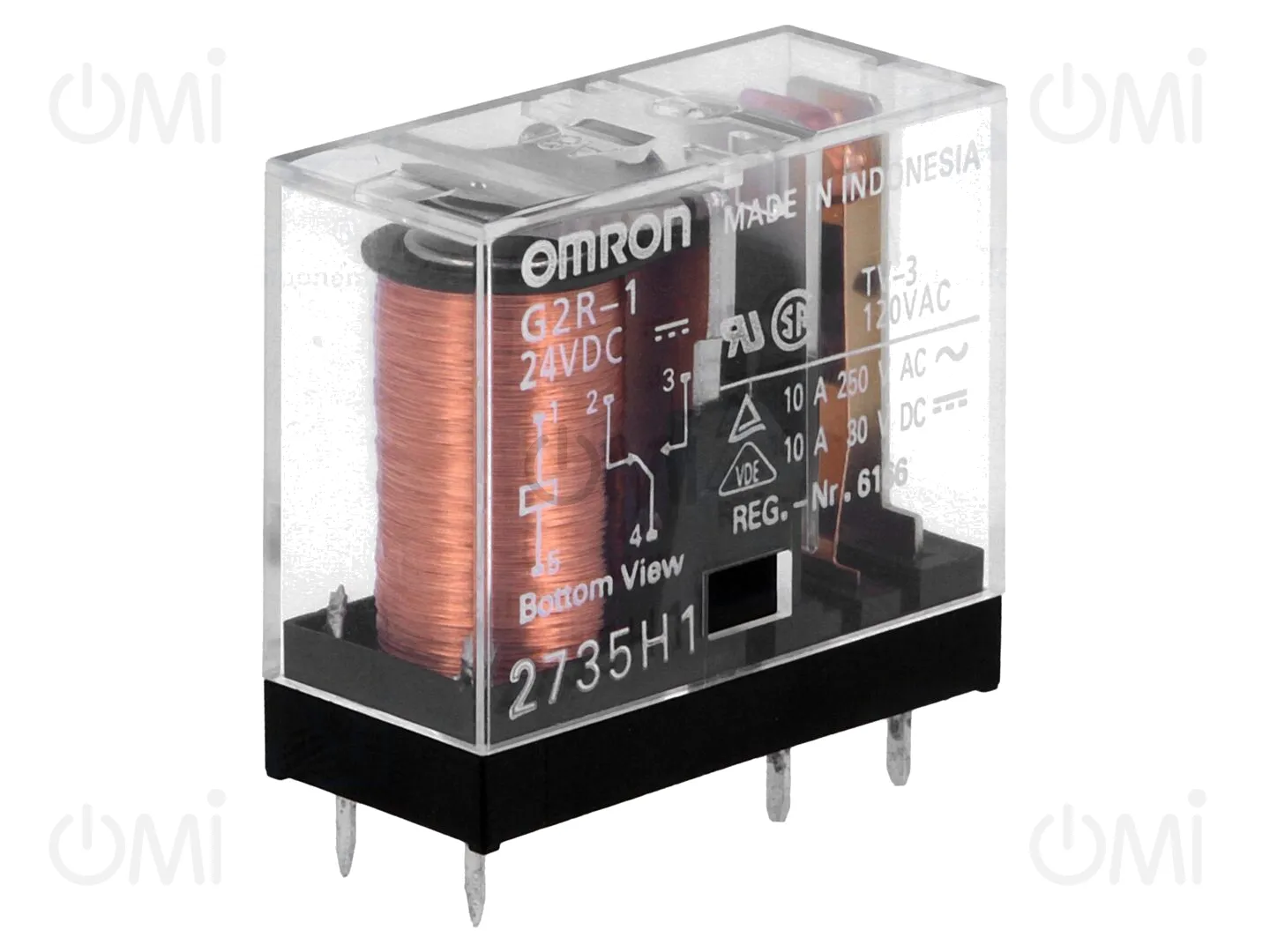

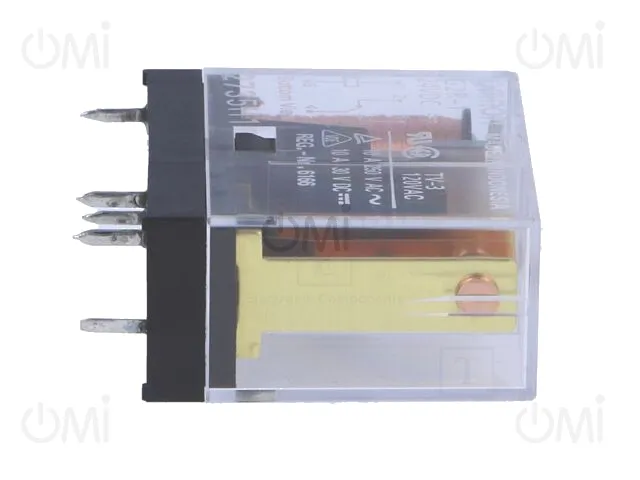

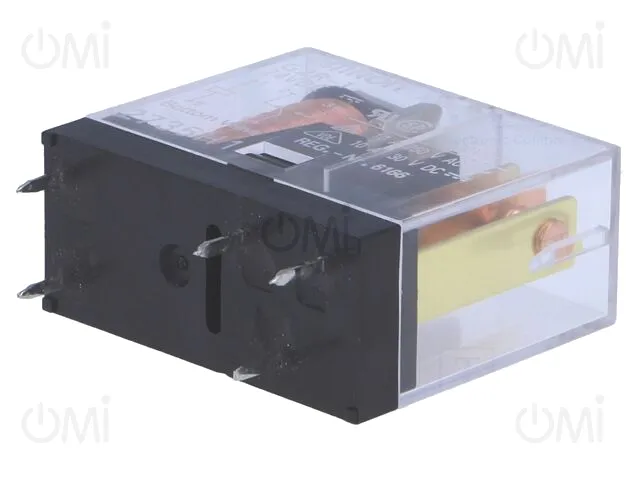

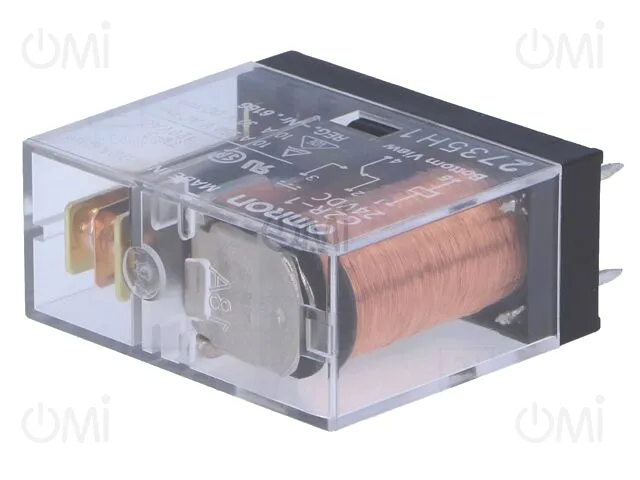

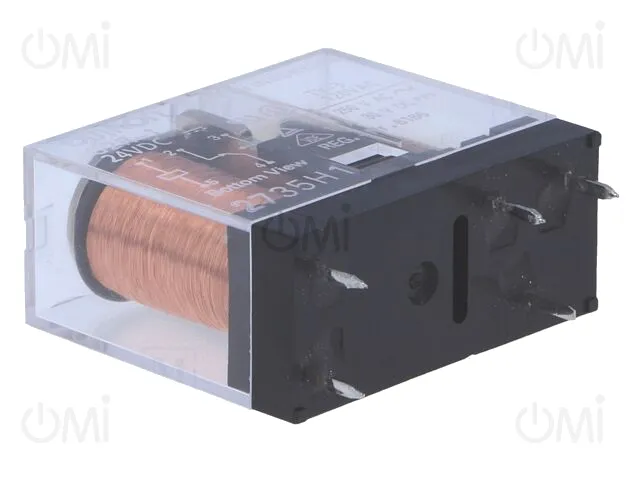

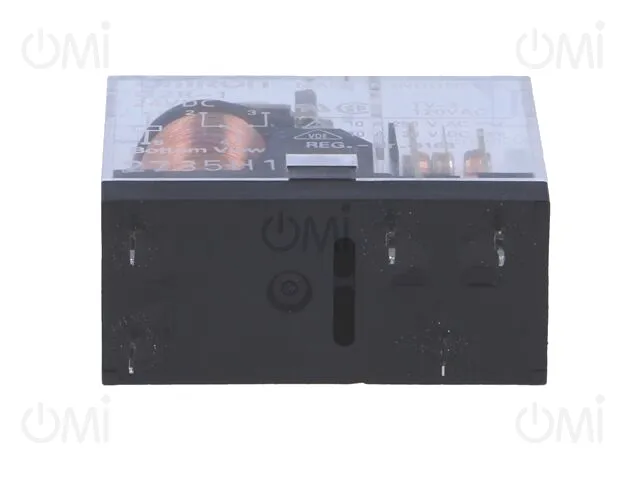

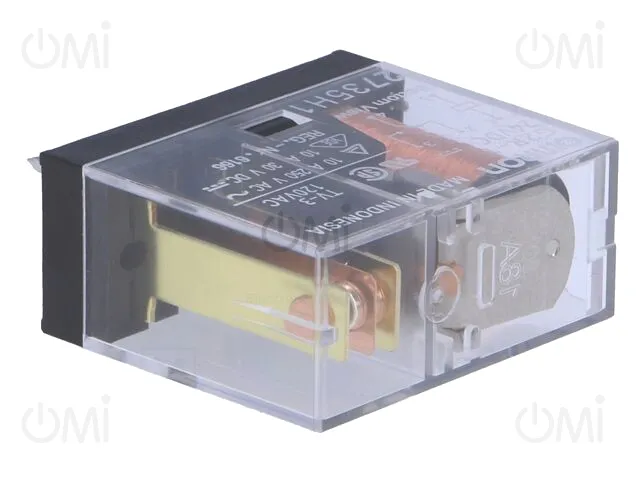

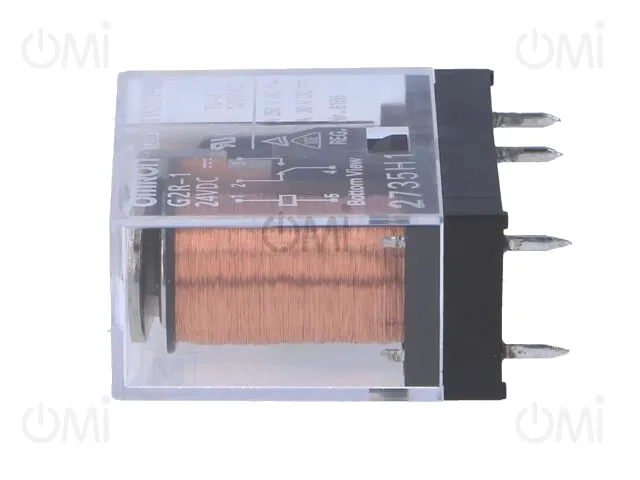

G2R-1 24VDC OMRON Electronic Components

Details

G2R-1 24VDC
G2R-1 24VDC
G2R-1 24VDC
G2R-1 24VDC
G2R-1 24VDC
G2R-1 24VDC
G2R-1 24VDC
G2R-1 24VDC
G2R-1 24VDC
  • G2R-1 24VDC
  • G2R-1 24VDC
  • G2R-1 24VDC
  • G2R-1 24VDC
  • G2R-1 24VDC
  • G2R-1 24VDC
  • G2R-1 24VDC
  • G2R-1 24VDC
  • G2R-1 24VDC

Manufacturer product page OMRON Electronic Components

Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 10A

Manufacturer code: G2R-1 24VDC

OMI code: 7392

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

3005 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 3.63
5+ 3.29
6+ 2.7
14+ 2.55

Price details
G2R-1 24VDC

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 3.63
5+ 3.29
6+ 2.7
14+ 2.55

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
OMRON Electronic Components
Mounting
PCB
Operating temperature
-40...70°C
Leads
for PCB
Related items
PODST-1
Contacts configuration
SPDT
Body dimensions
29x13x25.5mm
Switched voltage
max. 125V DC, max. 380V AC
AC contacts rating @R
10A / 250V AC
DC contacts rating @R
10A / 30V DC
Terminal pitch
3.5mm
Type of relay
electromagnetic
Contact current max.
10A
Relay variant
miniature, monostable
Relay series
G2R
Enclosure description
standard seal
Coil resistance
1.1kΩ
Rated coil voltage
24V DC
Operate time
15ms
Contact resistance
30mΩ
Release time
5ms
Coil current
21.8mA
Gross weight 16.70 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Miniature Electromagnetic Relays
