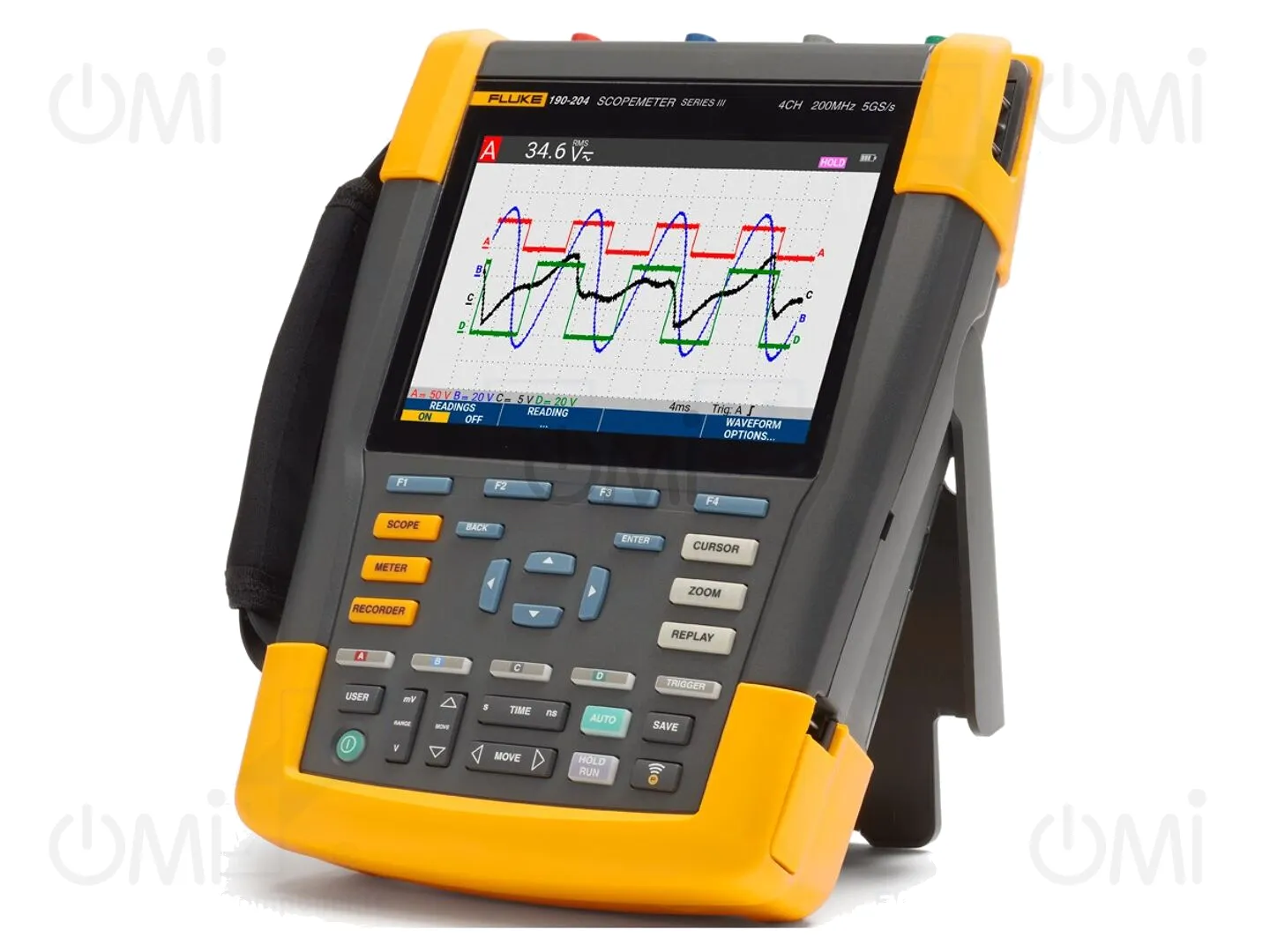

FLUKE-190-204-III FLUKE

Details

FLUKE-190-204-III
  • FLUKE-190-204-III

Manufacturer product page FLUKE

Scopemeter; 200MHz; colour,LCD; Ch: 4; 2,5Gsps; 10kpts/ch; 1.7ns

Manufacturer code: FLUKE-190-204-III

OMI code: 7809

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 7509.34

Price details
FLUKE-190-204-III

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 7509.34

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
FLUKE
IP rating
IP51
Manufacturer series
Fluke 190-III
Conform to the norm
EN 61010, CAT III 1000V, CAT IV 600V
Related items
FLK-BP291
Dimensions
265x192x70mm
Interface
USB
Number of channels
4
Kind of display used
colour, LCD
Power supply
rechargeable battery Li-Ion 4800mAh x1
Additional functions
multimeter
Standard equipment
USB cable, user's manual, mains cable, hand strap, FLK-TL175 test leads, power supply FLK-BC190/830, test probes VPS421
Measuring instrument features
impact resistant holster, FFT analysis, measurements by means of cursors, real time clock, mathematical functions: addition, subtraction, multiplication and FFT, Connect-and-View function that ensures stable, reliable and repeatable signal display without operator, defined part of displayed signal zoom, dust- and splashproof, insulated inputs, waveform trend chart function
Input impedance
1MΩ/14pF
Battery/ rechargeable battery
rechargeable battery Li-Ion 4800mAh x1
Plug variant
EU
Producer guarantee (months)
36
Sampling
2,5Gsps
Pollution degree
2
Band
200MHz
Trigger
rising-edge, falling-edge, impulse width
Type of oscilloscope
scopemeter
Vertical resolution
8bit
Max. input voltage
1kV
Rise time
1.7ns
Input sensitivity
2mV/div...100V/div
Time base
2n...4s/div
Memory record length
10kpts/ch
Gross weight 2200.00 g
Documentation in English #1 Documentation in English #2

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.
