P 1356 PEAKTECH

Details

P 1356
  • P 1356

Manufacturer product page PEAKTECH

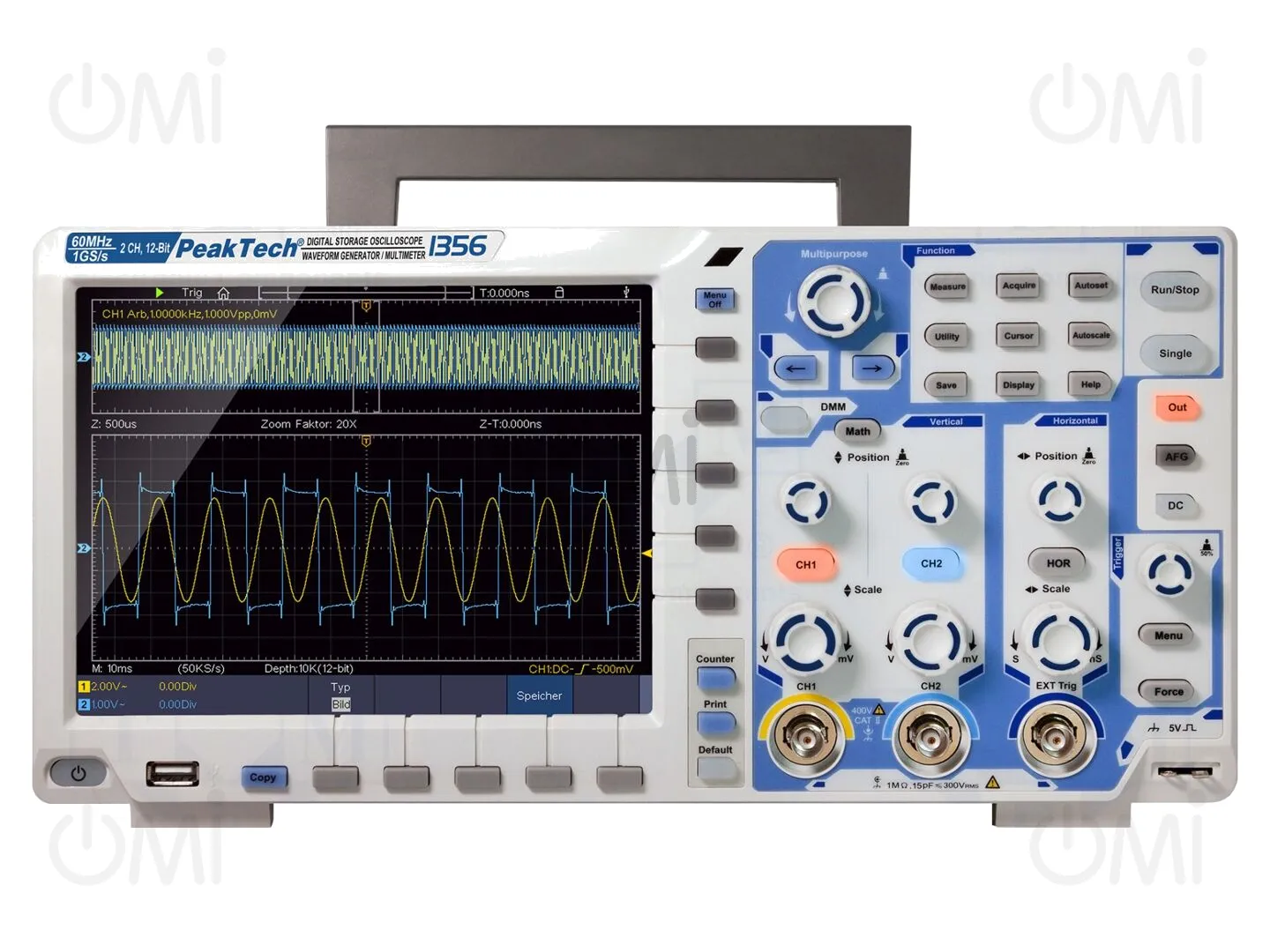

Oscilloscope: digital; Ch: 2; 60MHz; 1Gsps; 40Mpts; LCD TFT 8"; 24W

Manufacturer code: P 1356

OMI code: 78710

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 904.97
3+ 886.59

Price details
P 1356

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 904.97
3+ 886.59

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
PEAKTECH
Operating temperature
0...40°C
Supply voltage
100...240V AC
Related items
PKT-AKKU6
Body dimensions
340x180x90mm
Power consumption
24W
Interface
USB, LAN, VGA
Number of channels
2
Kind of display used
LCD TFT 8"
Additional functions
arbitrary waveform generator, multimeter
Standard equipment
USB cable, user's manual, case, mains cable, oscilloscope probe x2
Measuring instrument features
mathematical functions: addition, subtraction, division, multiplication and FFT
Input impedance
1MΩ/15pF
Display resolution
800x600
Plug variant
EU
Touchpad
yes
Software
included
Sampling
1Gsps
Band
60MHz
Trigger
rising-edge, falling-edge, video signal, pulse, slope
Type of oscilloscope
digital
Input coupling
AC, DC, GND
Vertical resolution
12bit
Trigger modes
automatic, normal, single
Trigger coupling
AC, DC, highpass, lowpass
Max. input voltage
400V
Rise time
≤5.8ns
Input sensitivity
1mV/div...10V/div
Time base
2n...1ks/div
Memory record length
40Mpts
Trigger source
CH1, CH2, line
Horizontal accuracy
±3%
Gross weight 4234.20 g
Documentation in English #1 Documentation in English #2 Documentation in English #3
